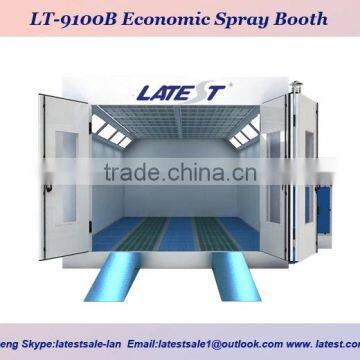

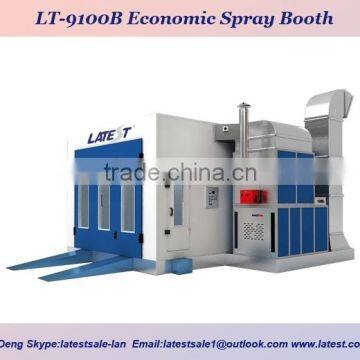

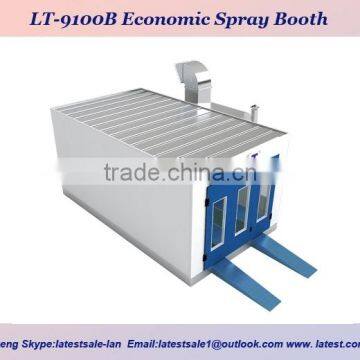

LT-9100B Economical Spray Bake Booth for Sale

LT-9100B Economical Spray Bake Booth for Sale

(CE, Professional Spray Booth Manufacturer)

01,CE Approved Economic Auto Spray Booth & Drying Oven

02. Economical Spray Bake Booth,Bake oven

03,Inside dimention:6900*3900*2700mm L*W*H

04,1Intake air fan:set*7.5kw turbo fan,no outtake fan.

LT-9100B Economical Spray Bake Booth for Sale

1,Inside Size :6,900x3,900x2,650mm(LxWxH).
2,Outside Size:7,000x5,350x3,400mm(LxWxH).

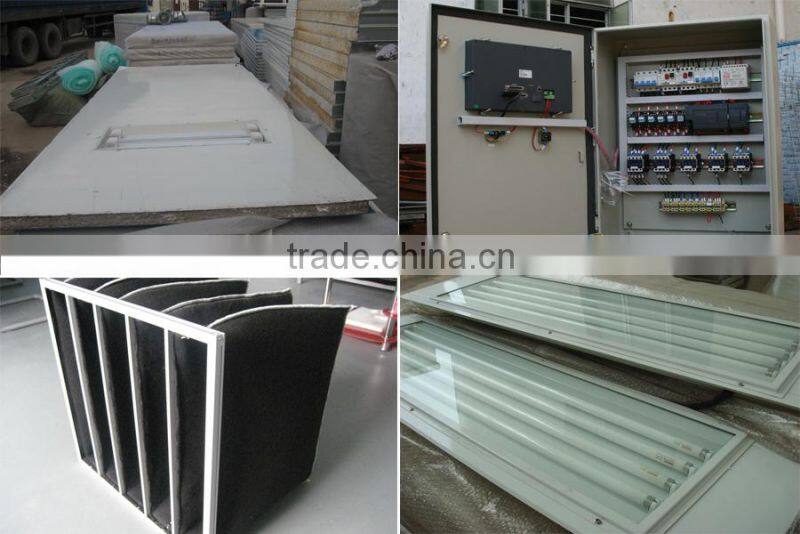

3,Cabin System:

1)Main Door:3-fold,size is 3,000x2,600mm(WxH), made of bent steel without covered edge,with tempered glass embedded into square frame made of aluminium alloy.

2)Personnel Door 1 unit, size is 800x2,000mm(WxH),with tempered glass embedded into square frame made of aluminium alloy.

3)Wall Panel 50mm thick and 1,000mm wide,insulation is EPS and covered by 0.326mm thick of color steel inside and outside.Tongue and groove interlock structure,two sides covered by steel.

4)Roof Panel:galvanized plate.

4,Basement:made of bent galvanized steel, 300mm high.

1)2 rows of grilles made of 30x4mm flat bar and 10mm twisted steel, with surface galvanised treatment, loading weight is 600KG/wheel, equipped with floor filter supporting frame.
2)3 rows of indented plate with surface painted treatment.
3)2 ramps, each size is 520x2,000mm(WxL).

5,Intake Air & Exhaust Air System:

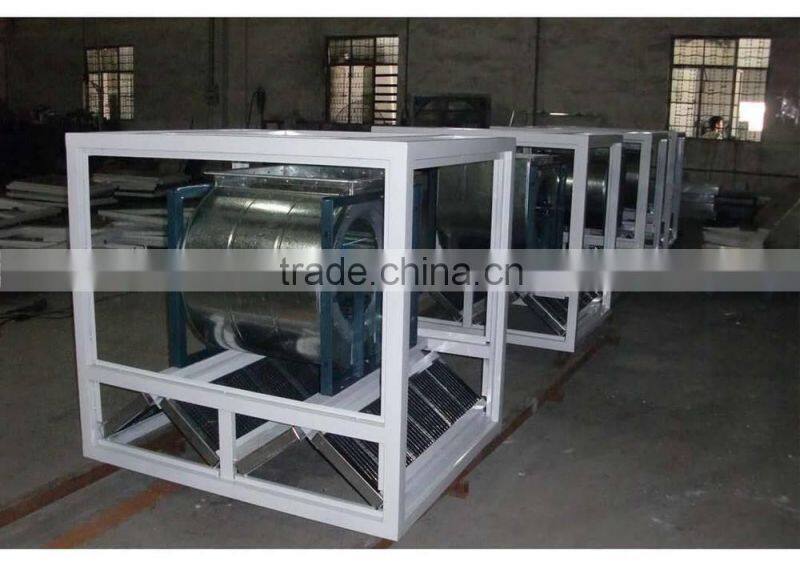

1)Intake air system:direct drive type; qty.:1pc; single motor power:7.5KW, total power:7.5KW;
Fan type: single intake turbo fan,total air capacity: 25,000m3/h

2)Exhaust air system:Without the unit made of motor and fan. The wasted air exhausted by positive pressure.
Equipped with 4M straight duct, 1pc 90° elbow duct and 1pc 30 elbow° duct.

3)Pneumatic Actuator :To control the air valve be opened or closed while the working status is spraying or baking.

4)Makeup Air Control by Belimo NMU230 10N actuator to control fresh air quantity

6, Air Purification system:

1)Fiber glass filter laid on the filter fram,G3 Grade(EN779)

2)Ceiling Filter:F5 Grade(EN779),type is SP-600G.

3)Fiberglass filter:G3 Grade(EN779),type is PA-50 .

7. Heating System: Italy Riello G20 Diesel Burner, 200000Kcal/h, 20N Damp Motor. SUS304 stainless steel heating exchanger, argon arc welding. Max Temp:80 degrees,Heating Time: 4-6min(20-60 degrees), Fuel Consumption: 4-5kg/vehicle.

8.Lighting System:Ceiling Light: 8groups*4pcs=32pcs 36w Lamp; 800Lux.

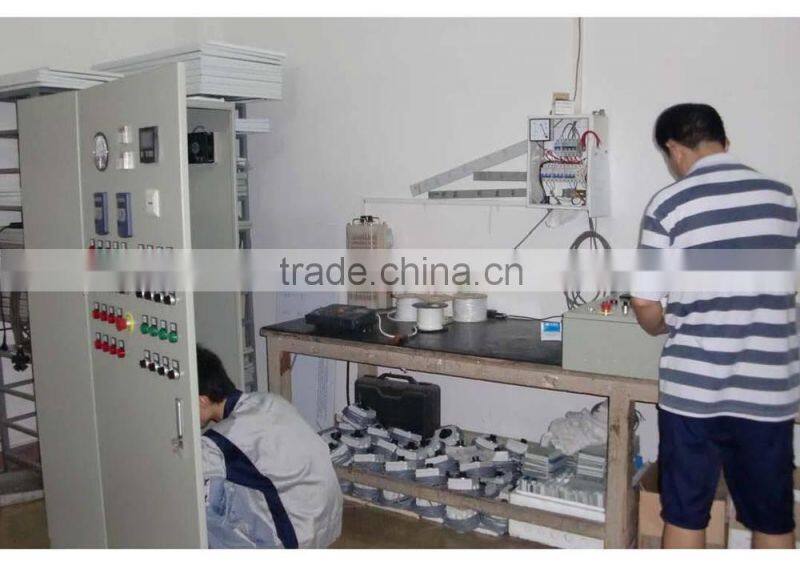

9.Controlling System:Temperature Controller,Hours,Baking Timer,Pressure Gauge,Power Indicator,Spray Indicator,Bake Indicator,Failure Indicator,Spray Switch,Bake Switch,Left Light Switch,Right Light Switch,Emergency Stop,Start Switch.

10.Total Power:9kw

Options for LT-9100B Paint Booth

1. 2 ramps with 750x2000mm (WxL) size spray baking room.

2. All the wall panel can be changed to be 0.426mm thick color steel to make the paint baking booth more strength. Edge cover for option.

3. The roof panel can be changed to EPS insulation panel to make the spray booth looks greater.

4. Add the exhaust air system with turbo fan to make the paint booth maintenance easier.

The goods are guaranteed for 2 YEARS from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.

High quality and advanced technology are applied in LATEST product ranges, involving automotive spray booth, bus and truck spray booth, prep station, mixing room, bench spray booth, open face spray booth and infrared curing lamp.

Thank you for your visit!

We offer Customerized spray booth service for various workpiece,such as car,bus,train,aircraft,furniture,metal parts,etc.You will be offered professional auto maintainenance service!
