Produc description

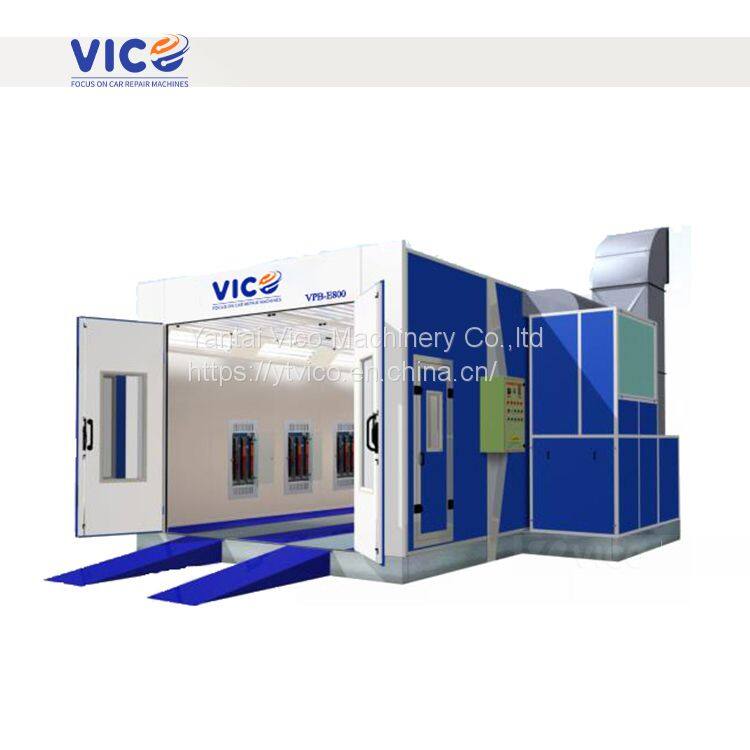

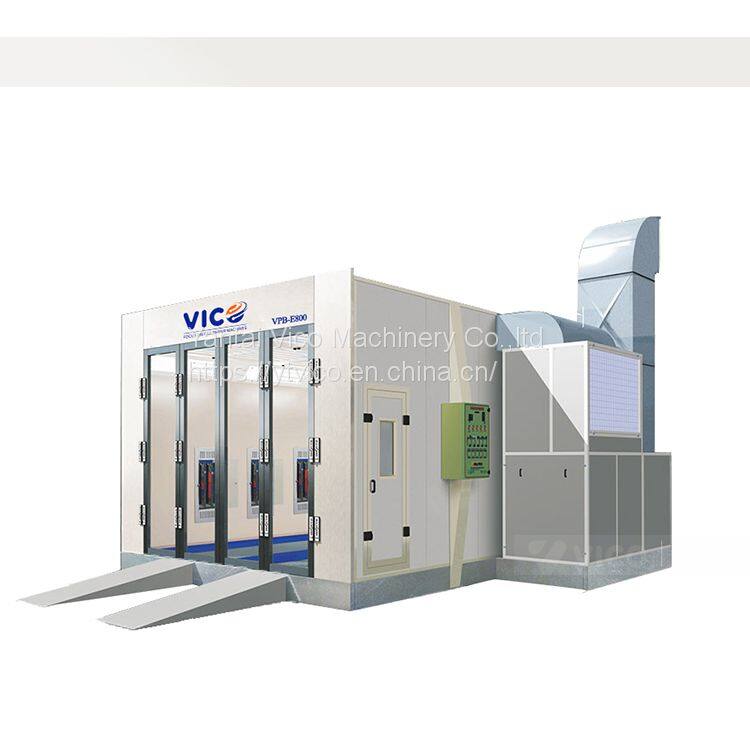

Hot sale Electric spray painting booth with CE Approved VPB-E800
Specifications
Booth type |
Full electric painting and baking/ down draft booth, Luxurious and Highly Efficient |
Outer dimension (mm) |
7000L*5200W*3370H |
Inner dimension:(mm) |
6900L*3900W*2650H |
Door dimension:(mm) |

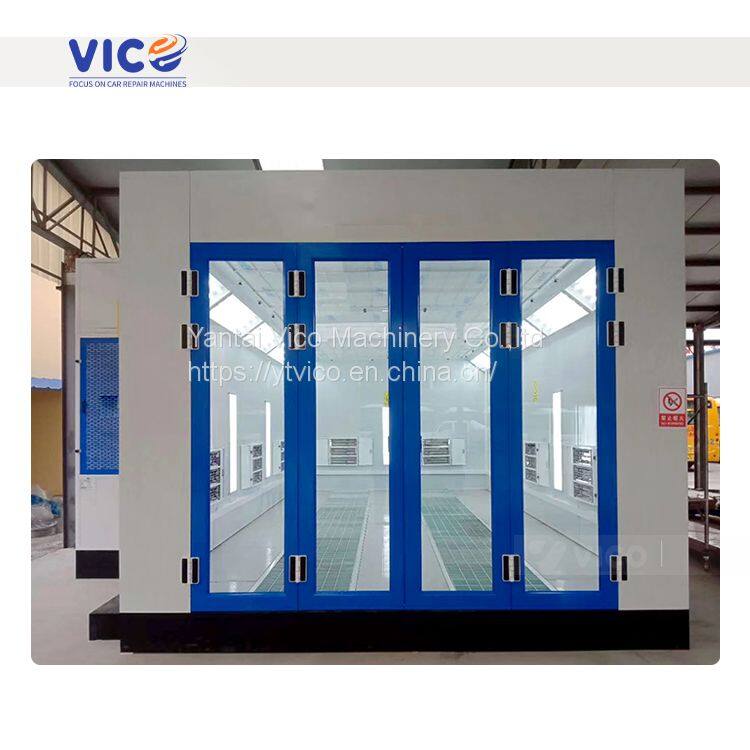

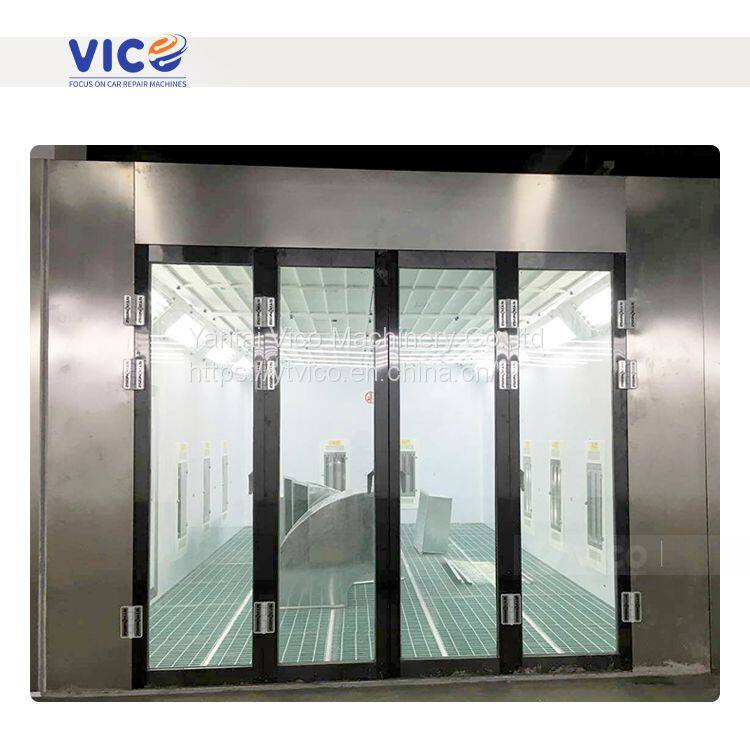

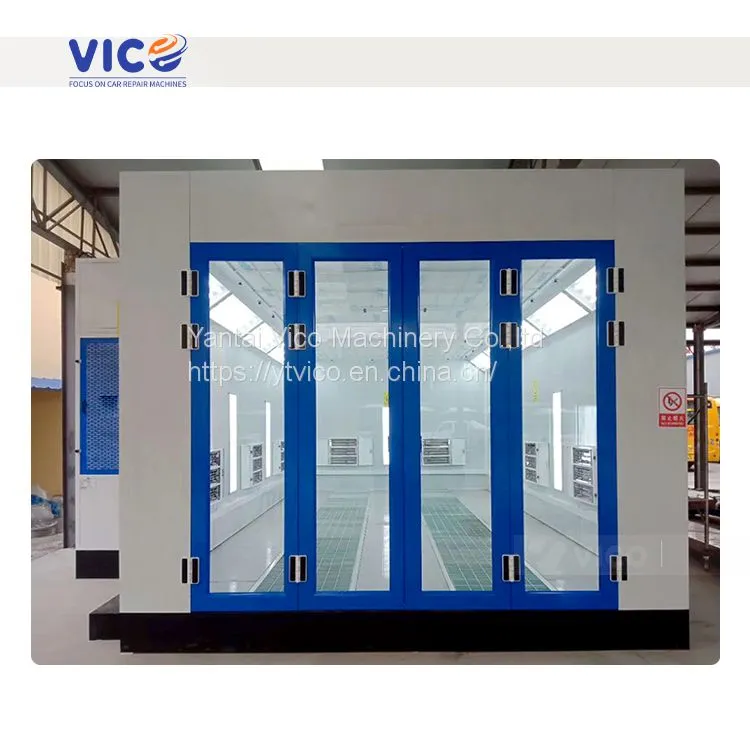

Front main door 3000W*2600H, side small door 680W*1800H Manal made steel stainless main door, with 4 pcs big clear tempered glass, double folded 8mm thickness, good performance and strong. The door frame made of 1.2mm titanium alloy material; 3 units hinge make sure door stable. Each door side covered with high quality rubber, booth room sealed well. |
Heating system |

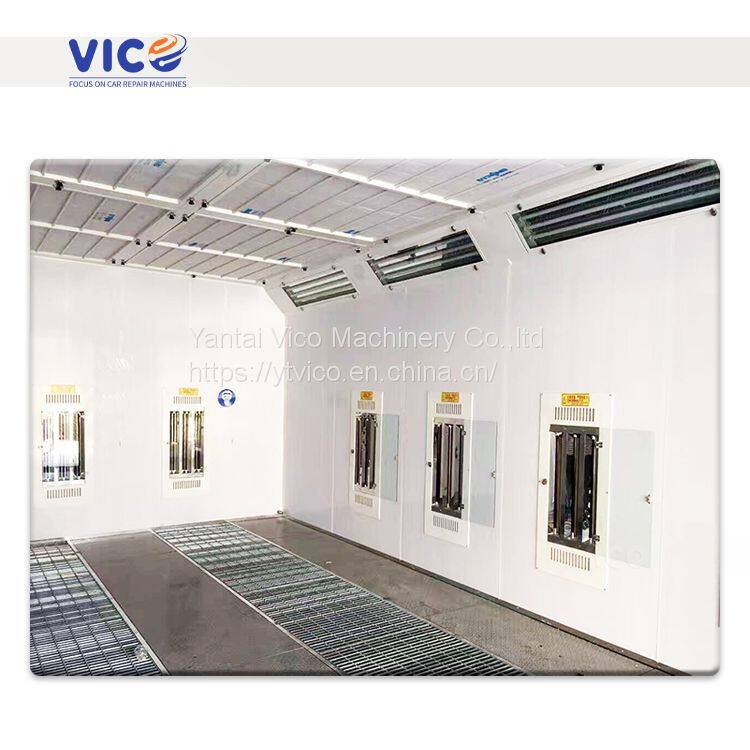

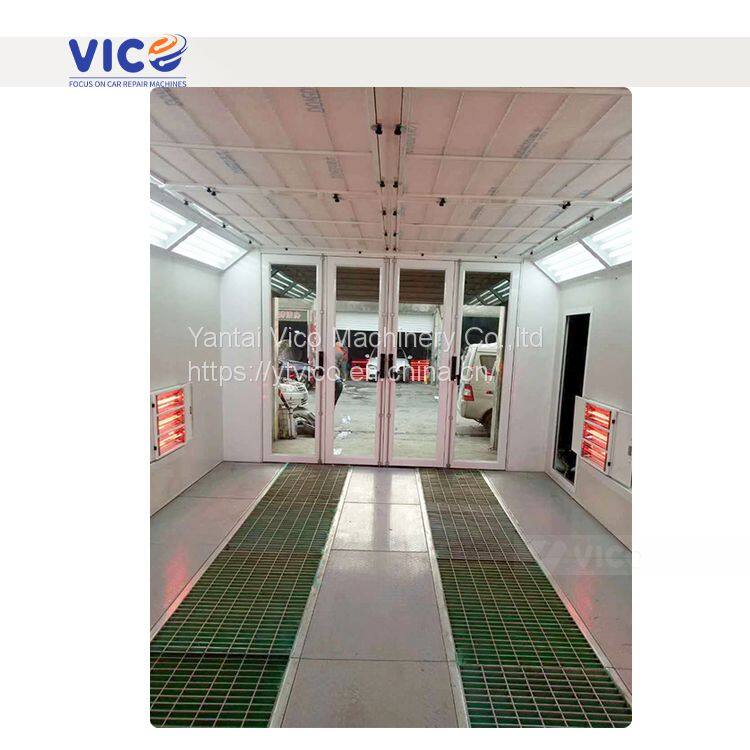

By 10 sets of high-quality infrared lights, each set 3 pieces,1.0kw, and total baking power:30kw. Unit box embedded into the wall panel. Thickness 2.5㎡,500℃ wire, covered with 40*80mm cable tray. |
Wall material |
50mm fire proof rock wool wall panel board, steel thickness:0.426mm, Socket type assembling. |
Roof material |
0.8mm galvanized steel sheet. |
Basement |
The whole basement is made of galvanized steel, top of basement is 2 rows of grilles and 3 rows of diamond plate. All the materials are antiseptic and durable. |
Ramps |
Two pieces of 280*1800mm ramps. |
Lighting system |
Using LED lamps, energy efficiency and longer life time than ordinary light.With 45°installation at ceiling, 8 Unit box, 3x16W, ≥800Lux |
Air intake system |
2 sets centrifugal fans,4 KW/set, total air volume:25000m³/h; side draft and the air speed 0.37m/s; air changes:260times/h. Galvanized steel structure and covered by steel board. |
Air exhaust system |
1x5.5KW motor blower, centrifugal fan, air volume: 15000m³/h. |
Control system |
Switch control: lighting, painting, baking, temperature setting, time setting, urgent stop. Size: 500*700mm |
Filter system |
Primary filtration: high grade fiberglass filter dust ≥10um in the inlet; secondary filtration: EU5CC-600G filters filter the dust ≥5um in the roof. TSP value≤1.4mg/m³. |
Waste gas treatment |
(Optional)Primary treatment: under basement filters; secondary treatment: activated carbon filters in the exhaust port. |
Exhaust chimney |
3 straight tubes,1 elbow tube. |
Available colors |
Blue, Orange, red, grey white |

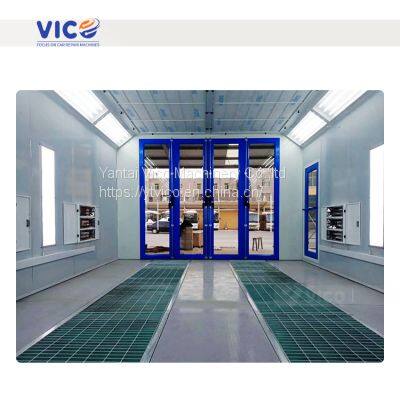

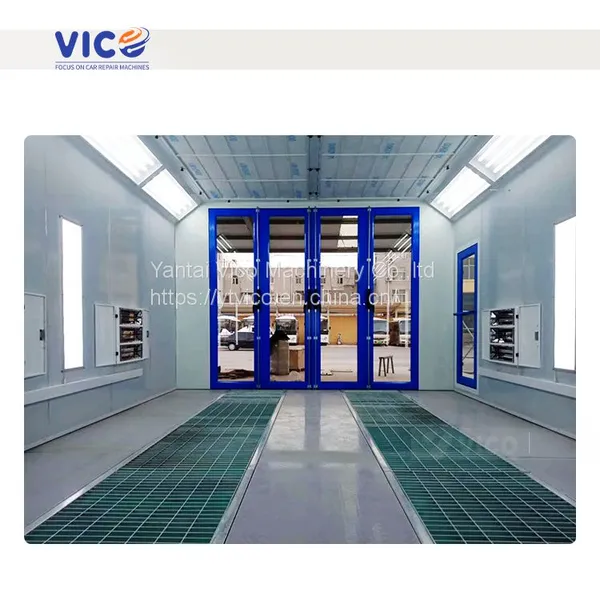

Detail Photos
Package
20'GP container can load 1 set
40'HC container can load 3~4 sets
