CE High quality low price spray booth GS-500

FOB Price

USD $15,000 - $18,000 / Set

1 Set(Min.Order)

Supply Ability 80 Set / Sets per Month
Port Jiuzhou Port Zhuhai City China
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Power:	25KW	External Size:	7M5.4M3.75M	Internal Size:	6.9M3.9M2.8M
Voltage:	Do as customer required	Certification:	CE	Disc Dia.:	6.9--3.9--2.7
No Load Speed:	970/M	Place of Origin:	Guangdong, China	Brand Name:	G&P
Model Number:	GS-500

Product Description

Introduction:

High quality and low price G&P spray booth/ paint booth/ spray room/ paint room/ baking booth/ baking room/ spray cabin.

CE.

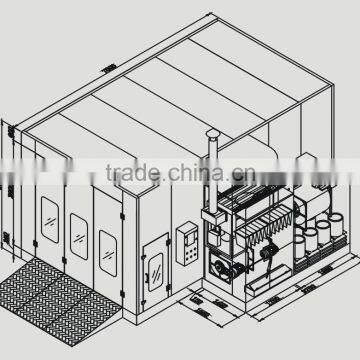

GS-500 SPRAY BOOTH

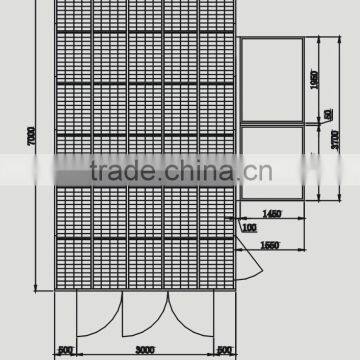

Room body	Dimension	Inside Dimension:L7000×W(4000+1550)×H3750(MM) Outside Dimension:L6900×W3900×H2800(MM)
	Wall panel	Total thickness of rockwool insulation and powder-painted steel plate wall is 50MM. Powder-painted steel plate is 0.476MM thick.
	Basement and floor	Steel assemble, 5 rows of grilles with standing weight
	Driving ramp	3PCS diamond plate, each size: 1000MM×2000MM
	Personal door	1-fold ,with sight window and pressure lock, size: 800×2000(W×H)
	Main door	3-fold with sight windows, door without aluminum frame, size:3000×2700 (W×H)
Generator	Frame	Sheet metal forming with powder spray process,inside galvanized board and fire-resistance material,outside white color plate
	Intake fan	2SETS of 4kW centrifugal fan driven by belt, air capacity:25000M³/H, Air speed:0.25~0.35M/S
	Exhaust fan	1SET of 11kW centrifugal fan driven by belt, air capacity:23000M³/H, Air speed:0.25~0.35M/S
	Intake pipe	4M straight pipe; 1PC120°elbow; European flange
	Exhaust pipe	4M straight pipe; 1PC 90° elbow; 45°intake elbow; European flange
	Exhaust vent control damper	1SET eletrical VCD
	Smoke venting pipe	4M straight pipe; 2PCS small elbow
	Air damper	Cylinder and connecting rod driving system to transfer spray to baking paint freely
	Burner	RIELLO/RG5S, Max Heating Productivity: 260000KCAL/H
	Heat exchanger	Heat-resistant stainless steel heat exchanger, three cycling for heating, Maximum working temperature: 60~80℃
Filter system	Ceiling filter	6SETS filter; holding net installation model; Holder is made by aluminum and with surface powder spray treatment. air filter efficiency:≥95%
	Floor filter	5SETS, installed horizontally
	Prefilter	Bag-type filter structure
Lighting system	Ceiling light	10UNITS×4PCS×40W, room illumination≥1100LUX
Lighting system	Side light	8UNITS×4PCS×40W, installed vertically
Control system	Electric cabinet	With intelligent control cabinet and LCD display to show dynamic working condition Main components imported are good quality, with overheat, overload, phase-absence protecting, motor starts directly, control by SCM
	Differential pressure gauge	1SET finger model
	Stop automatically	With timer to control heating time; System stops automatically.
	Constant temperature spraying	With constant temperature spraying paint function
	Main power	25.68KW, 3PH, 380V, 50Hz
E.P. Equipment	Environmental protecting filter	12UNITS of barrel-type filter device and M-type active carbon filter as well as floor filter
Water paint system	Water paint drying system	4pcs stainless steel air nozzles below each group ceiling light, total 40PCS; with 6SETS 0.55KW centrifugal motors; air capacity for each nozzle: 580M³/H
