CE High Quality Low Price Paint Booth GS-300A
US$ 15,000 - 18,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Power:
25KW
External Size:
7M*5.4M*3.75M
Internal Size:
6.9M*3.9M*2.8M
Payment & Shipping
Payment Methods:
Port of Shipment:
Jiuzhou Port Zhuhai City China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CE High Quality Low Price Spray Booth GS-400US$ 9,000 - 13,000MOQ: 1 Set -
CE High Quality Low Price Spray Booth GS-500US$ 15,000 - 18,000MOQ: 1 Set
-
CE High Quality Low Price Spray Booth GS-870US$ 9,000 - 15,000MOQ: 1 Set
-
CE High Quality Low Price Spray Booth GS-1500US$ 25,000 - 29,000MOQ: 1 Set
-
GP-1-1 Rear Down Draft Repairment BoothUS$ 3,500 - 4,500MOQ: 1 Set
Power
25KW
External Size
7M*5.4M*3.75M
Internal Size
6.9M*3.9M*2.8M
Voltage
Do as customer required
Certification
CE
Disc Dia.
6.9--3.9--2.7
No Load Speed
970/M
Place of Origin
Guangdong, China
Brand Name
G&P
Model Number
GS-300A
Introduction:
High quality and low price G&P spray booth/ paint booth/ spray room/ paint room/ baking booth/ baking room/ spray cabin.
CE.
| NAME | SPECIFICATION | OPTIONAL | |||||
| 1. Body system | |||||||

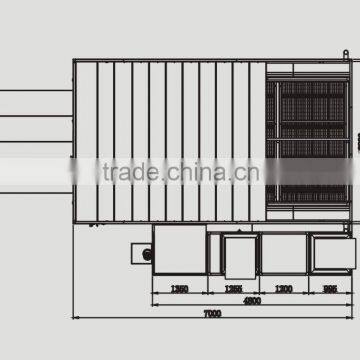

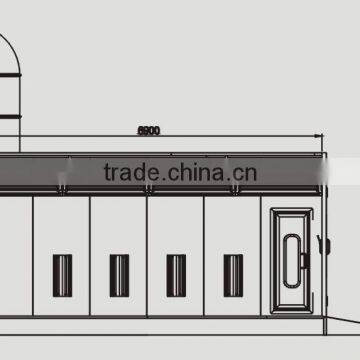

| Dimension | Outside: 7000*5400*3505; Inside: 6900*3900*2700 | ||||||
| Air room layer | Aluminum holding net,holder is made of steel,with surface powder spray | ||||||
| Wall panel | Powder-paint steel(thickness 0.476mm , white)+ fire proofing PU Insulation(Polyurethane), totol thickness: 50mm | Clolor: white, blue | |||||
| Basement and floor | Galvanized steel assemble, full grilles withstanding weight; grille size: 5*25mm | ||||||
| Driving ramp | Grilles model | ||||||
| Personal door | 1PCS with safe lock, 680*2000mm | ||||||
| Main door | 3 folds of blue metal door,with sight window; Height of entrance: 3000*2700mm | ||||||
| 2. Heating system | |||||||
| Frame | Alumium foming, powder spraying | ||||||

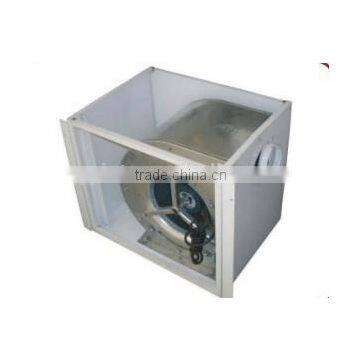

| Intake fan | 1pcs 7.5KW professional turbo fan(Siemens Motor) | ||||||
| Exhaust fan | 1pcs 7.5KW professional turbo fan(Siemens Motor) | ||||||
| Intake Pipe | 1m straight pipe, 1pcs 90º elbow, with bird-proof net, European flange | ||||||
| Exhaust Pipe | 4m straight pipe, 1pcs 120º elbow, with bird-proof net, European flange | ||||||
| Air door of Intake pipe | 2pcs, electric VCD(vent control damper) | ||||||
| Smoke venting pipe | 4m straight pipe, 2 pcs 90º elbows | ||||||
| Air damper | Cylinder and connecting rod driving system to transfer spray paint to baking paint freely | ||||||
| Burner | 1set RIELLO RG5S burner. | ||||||
| 3. Filter system | |||||||
| Ceiling filter | 4 sets filter, holding net installation model; Holder is made by Aluminum profile, surface with powder spray treatment . Cotton: VDF650C, Fixed by hinge | ||||||
| Floor filter | 5 sets imported floor filter, installed horizongtally, whole grilles with wind deflector. | ||||||
| Prefilter | 2 sets bag model filter | ||||||
| 4. Lighting system | |||||||
| Ceiling light | 10units*4pcs*40W | ||||||
| Side light | 8units*4pcs*40W, Installed vertically | ||||||
| 5.Control system | |||||||
| Electric cabinet | Main imported components with overheat, overload, phase-absence and phase lock protecting; Motor starts in triangle model. Over-temperature equipment: 24V control | ||||||
| Different pressure instrument | 1pcs, finger model | ||||||
| Stop automatically | with timer to control heating time, system stop automatically | ||||||
| Constant temperature spraying | with constant temperature spraying paint function | ||||||
| Main power | 25KW | ||||||
| 6. Water paint system | 8groups×5PCS=40PCS air nozzle with 6*0.55kw double-intake fan (centrifugal fan); Air capacity:580m³/h for each air nozzle(Not include ceiling parts in this picture) |
||||||
| 7. E.P. Equipment | Bucket type activated carbon filter | ||||||
| 8. Optional part | All infrared heaters are optional | ||||||
