CE Standard Car Spray Booth Oven Car Baking Oven Auto Spray Booth

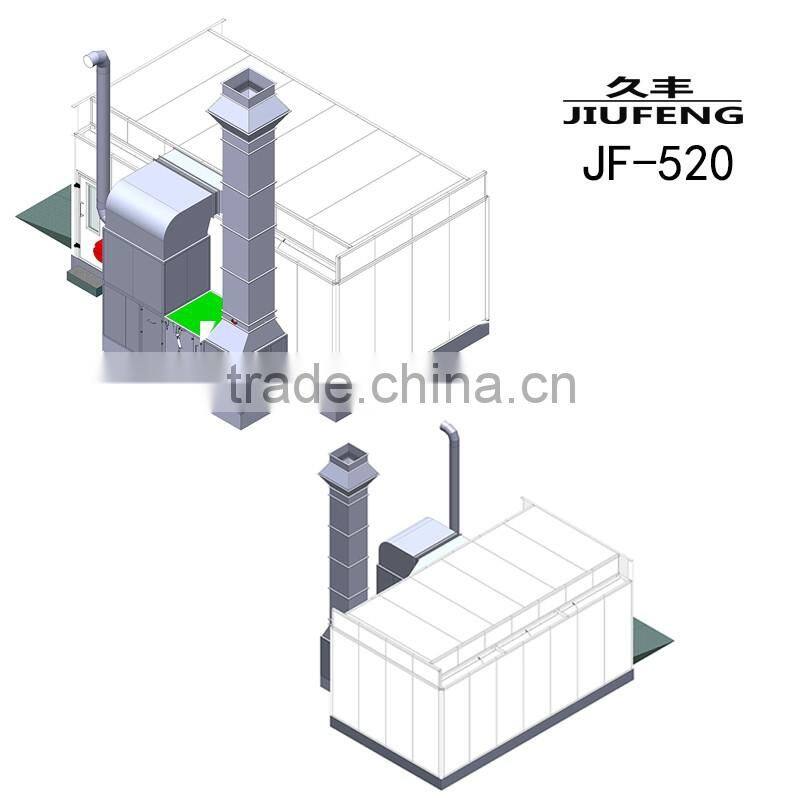

CE Standard Car Spray Booth Oven Car Baking Oven Auto Spray Booth thumbnail-1

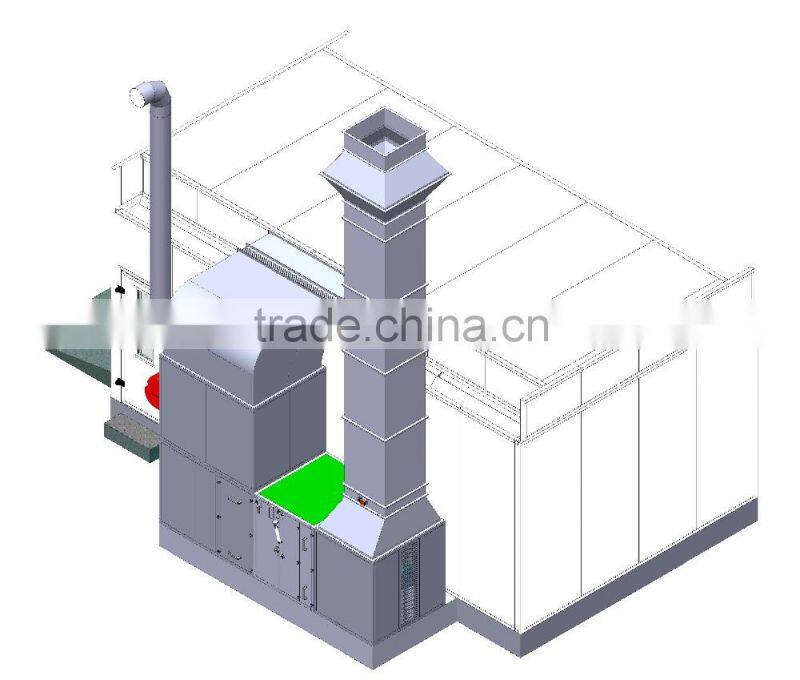

CE Standard Car Spray Booth Oven Car Baking Oven Auto Spray Booth thumbnail-2

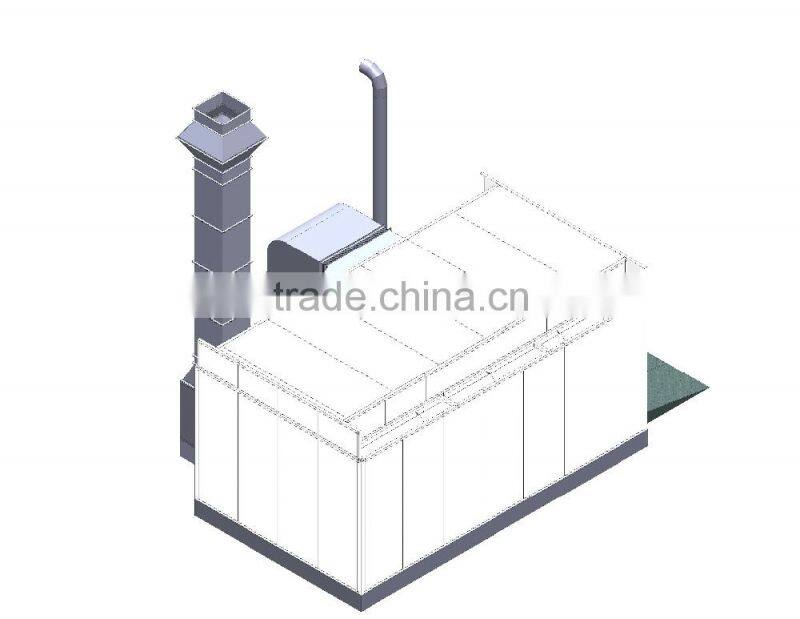

CE Standard Car Spray Booth Oven Car Baking Oven Auto Spray Booth thumbnail-3

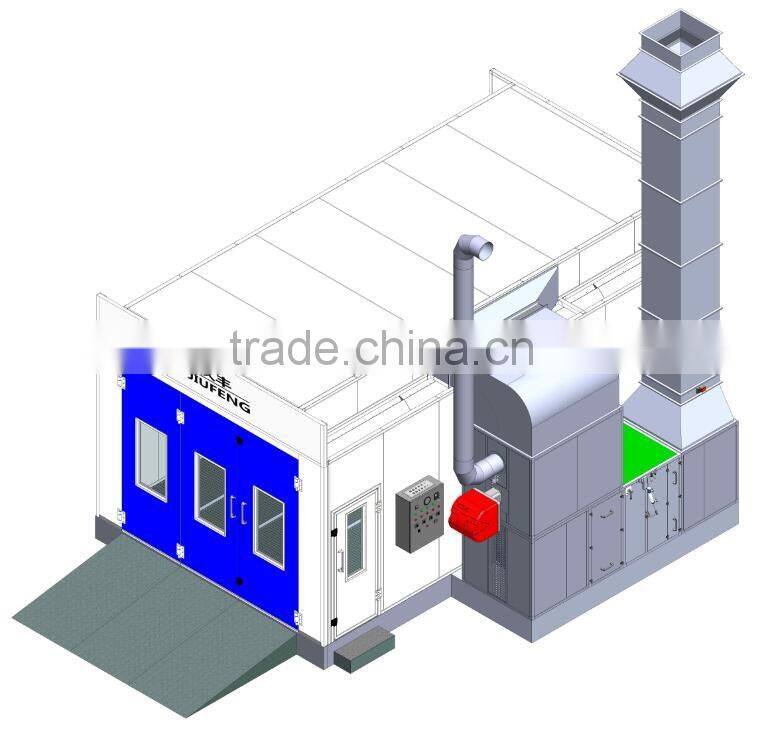

CE Standard Car Spray Booth Oven Car Baking Oven Auto Spray Booth thumbnail-4
CE Standard Car Spray Booth Oven Car Baking Oven Auto Spray Booth thumbnail-5
CE Standard Car Spray Booth Oven Car Baking Oven Auto Spray Booth thumbnail-6
CE Standard Car Spray Booth Oven Car Baking Oven Auto Spray Booth photo-1
CE Standard Car Spray Booth Oven Car Baking Oven Auto Spray Booth photo-2
CE Standard Car Spray Booth Oven Car Baking Oven Auto Spray Booth photo-3
CE Standard Car Spray Booth Oven Car Baking Oven Auto Spray Booth photo-4
CE Standard Car Spray Booth Oven Car Baking Oven Auto Spray Booth photo-5
CE Standard Car Spray Booth Oven Car Baking Oven Auto Spray Booth photo-6
US$ 4,000 - 12,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Power:
17.5kw
External Size:
7110X5570X3810mm(LXWXH)
Internal Size:
7000X4000X2800mm(LXWXH)
Contact Supplier Request Quote Chat Now
Shenzhen Jiufeng Electromechanical Equipment Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Power 17.5kw
External Size 7110X5570X3810mm(LXWXH)
Internal Size 7000X4000X2800mm(LXWXH)
Voltage 380v/3phase/50hz
Certification CE
Disc Dia. Electric Spray Paint Booth
No Load Speed 0.25m/s
Place of Origin Guangdong, China
Brand Name JF
Model Number JF 520
Product Description
CE standard car spray booth oven car baking oven auto spray booth
Cabin size
inside size
outside size
7110×5570×3810mm（L×W×H)
Basement
Foundation
Galvanized plate bending forming. Full grids. Basement height is 350mm.
Capability of load
Hold up 700kg/wheel.
Filter surface area
27 ㎡
Drive in ramp
3 pcs, size: 2000*1030*320, diamond plate structure
Description of floor grids

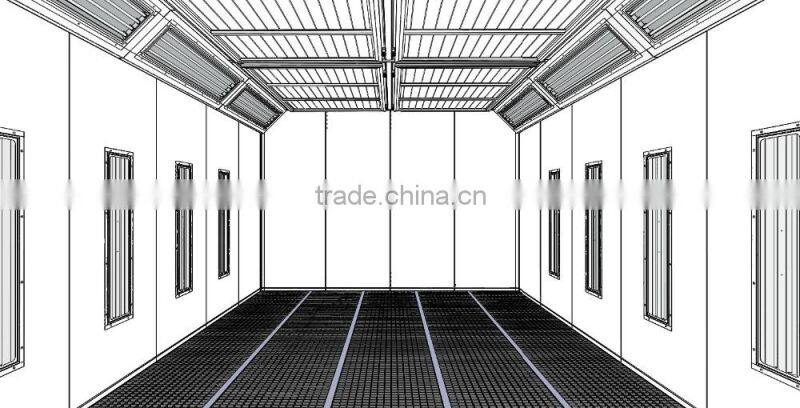

Size: 997*756mm , 40*3mm，the grids are suppressive type of steel grating instead of traditional twisted steel for the cross bar steel grating. The biggest features for it are beautiful, durable and better force bearing.
Cabin system
Cabin structure
Wall vertical plugging
Pressure room height
600mm
Wall board
Wall panel
Thickness: 50mm, wallboard fill with rock wool
Roof panel
Thickness: 50mm, wallboard fill with rock wool
Edge material
1.5mm galvanized steel plate bending forming
Main door
Gate form
Manual door, 2+1 folding gate
Gate size
3200X2700 mm (W×H)
Quantity
1sets
Description
Contain skeleton, fill with EPS
Service door
Service door form
With steel frame structure
Service door size
800×2000 mm (W×H)
Quantity
1 set
Description
With safety observation window
Ceiling Light
Quantity and power
8 sets of lighting box , each set with 4×36W, total 1152W
Lighting arrangement
on both sides
Description
IP55 protection grade, CE certification, electronic rectifier, Osram tubes
Side Light
Quantity and power
8 sets of lighting box , each set with 2×36W, total 576W
Lighting arrangement
on both sides
Description
IP55 protection grade, CE certification, electronic rectifier, Osram tubes
Total Brightness
>1200Lux
Filtration System
Pre-filters
Grade EU3 pocket type filter
Ceiling filter
EU5 grade filter , filter model : SP-600G
Floor filter
Fibreglass paint-stop filter
Exhaust filter
Fibreglass paint-stop filter, with large air volume, low resistance and flame resistance ,etc.
Ventilation system( Air supply)
Inlet fan form
Direct turbo fan
Inlet fan Power and motor description
7.5KW，970 rpm, 380 V, 50 Hz
Fan air volume
600Pa, 25000m³/h
Ventilation system( Air exhaust)
Outlet fan form
Direct turbo fan
Outlet fan Power and motor description
7.5KW，970 rpm, 380 V, 50 Hz
Fan air volume
600Pa, 25000m³/h
Total air volume
25000m3/h
Empty load air flow speed
+/- 0.25m
Noise
＜78 Decibel
Material of heat exchanger
Stainless steel 1Gr18Ni9Ti（SUS304）
Power of heat exchanger
200kW
△T Temperature capability
30°C(from -10°C to 20°C painting state)
Max operating temperature
80°C
Heating time
3-5 mins (from 20° to 60°ºС) baking state
Burner Model
Italy REILLO RG5S diesel burner
Pipeline configuration
Straight pipe
4pcs
90°pipe
1pc
Rain hat
1pc
Changing Pipe
1pc
Control system
Executive standard
Standard Y/Δ step-down starting control system
PLC (Programmable Logic Controller)
Yes, PLC control, more reliable and low breakdown rate.
Pressure measure
Pressure gauge indicating pressure inside the room, with humidity sensor
Function
Painting, warm painting, baking, emergency stop switch, failure indication, Overtemperature alarm indicator, baking stop delay protection
Detailed Images
Our Company

Shenzhen Jiufeng Electromechanical Equipment Co., Ltd. is a professional manufacturer for car spraying, baking and largest automobile spraying/baking booth in South China since Year 2002 . With strong R&D experiences, advanced technology and guarantee quality , JF brand spray booth is getting more and more popular all over the world .

Packing & Delivery
Our Service

We are professional manufacturer for 12 years in China


Warranty time: 2 years. During the warranty time, any time, any problem caused by products’ quality,has responsibility to offer free spare parts to customers freely and bear the delivery cost for DHL or TNT Carrier.

Service time: Life long maintenance


FAQ

Q1: What's the sort of heating types?
JF reply: There are diesel, gas and electricity(infrared lamp) heating.

Q2: Does the JF spray booth with the European design ?
JF reply: Our products are welcomed in Europe. All the spray booths are according to European standard with CE certificate.

Q3: What are range of the voltage and power for JF spray booth when operating?
JF reply: the standard voltage and power for our products is 220V 50HZ 1PH for lights (Residential voltage), 380V 50HZ 3PH for motors (Industrial voltage), we could modify the voltage to suitable for customer's local voltage.

Q4: For the customer-design spray booth for other workpieces, does JF could provide?
JF reply: Absolutely yes, JF has the professional team with 12 years of design experience. JF may design according to customers requirements of spray booth for car, bus, big iron workpieces, wooden furniture etc.
