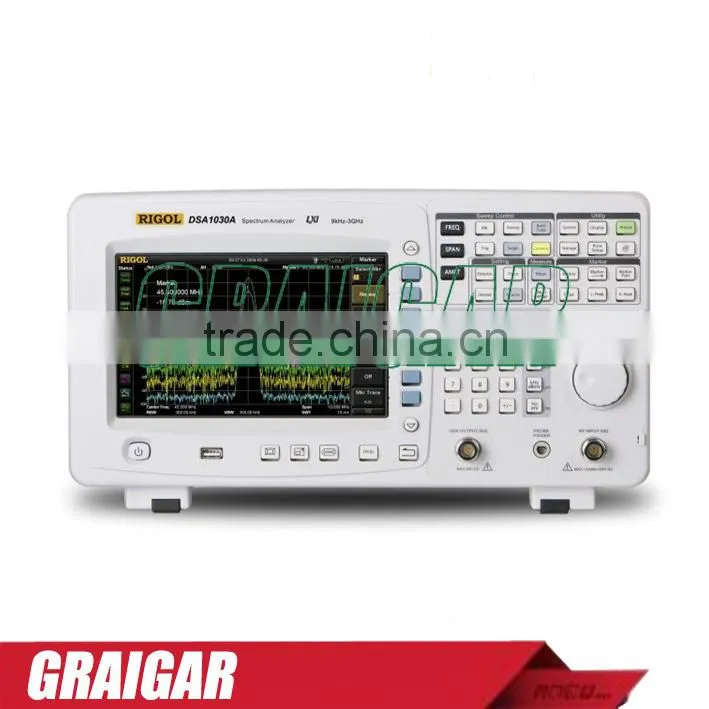

DSA1030 spectrum analyzer frequency domain 9kHz~3GHz RBW 100 Hz to 1 MHz
DSA1030 spectrum analyzer frequency domain 9kHz~3GHz RBW 100 Hz to 1 MHz
product feature:
DSA1030 for small volume, light weight, cost- effective portable spectrum
analyzer, it is an attractive price will greatly reduce the user in funds for research
and development, production and maintenance of each link, due to funding
resource conflict problem will be solved easily.
1.1 The digital intermediate frequency technology
1.2 9 kHz to 3 GHz frequency range
1.3 According to the average noise level (DANL) - 138 dBm
1.4 Phase noise is typical values - 80 dBc/Hz (offset 10 KHZ)
1.5 Whole range accuracy < 1.5 dB
1.6 Minimum resolution bandwidth (RBW) 100 Hz
1.7 The EMI filter of the standard and function of peak detector
1.8 Preamplifier DSA1030 (optional)
1.9 3 GHz tracking source (applicable to DSA1030 - TG)
2.0 Built-in lithium battery, continuous work 3 hours (optional)
2.1 Measurement functions and a variety of automatic setting function (DSA1030 optional)
2.2 8.5 -inch widescreen display, the interface simple rich affinity, humanized design
2.3 A variety of connectivity: LAN, USB Host, USB Device, VGA GPIB (optional), convenient upgrade and ease of integration
2.4 Compact design, the weight is only 6.2 kg (without battery)
