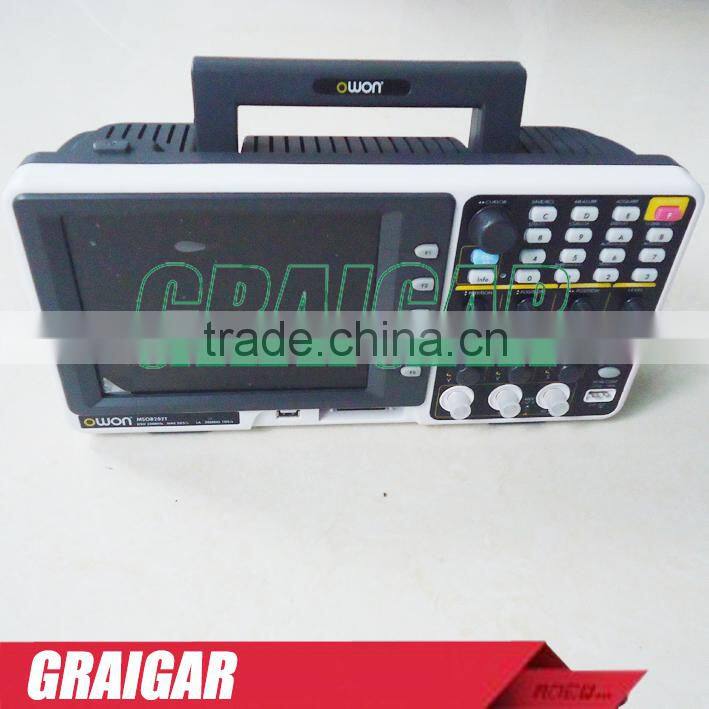

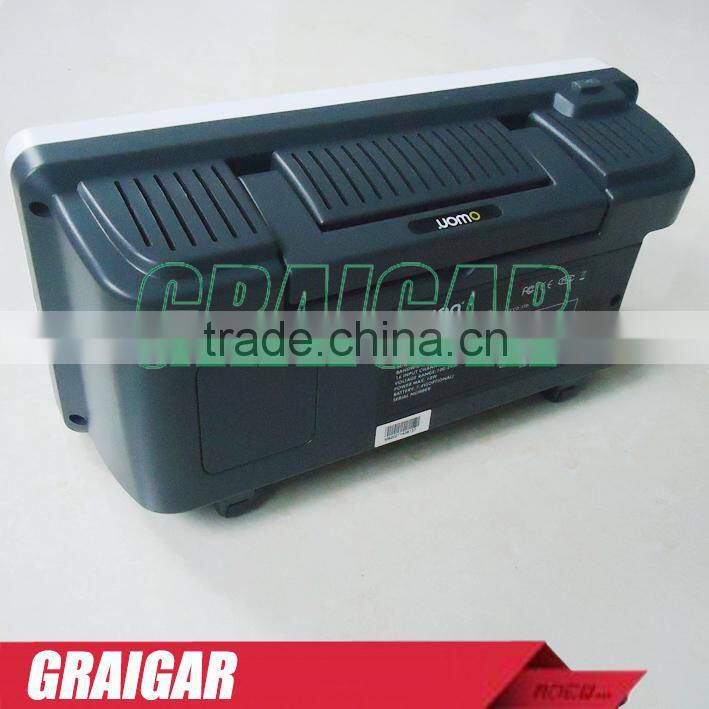

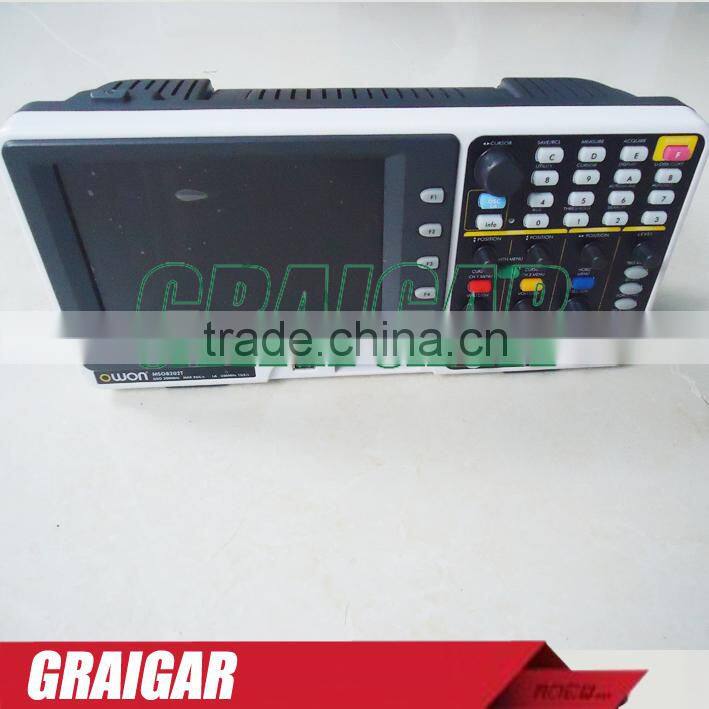

OWON MSO8202T Digital Oscilloscope 2+1 | LA - 16 200MHz photo-3

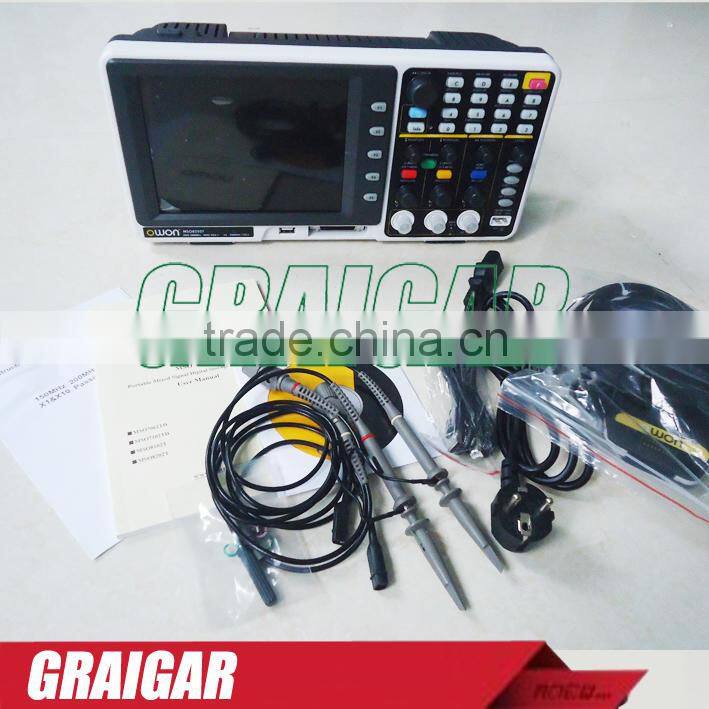

OWON MSO8202T Digital Oscilloscope 2+1 | LA - 16 200MHz photo-4
OWON MSO8202T Digital Oscilloscope 2+1 | LA - 16 200MHz photo-5

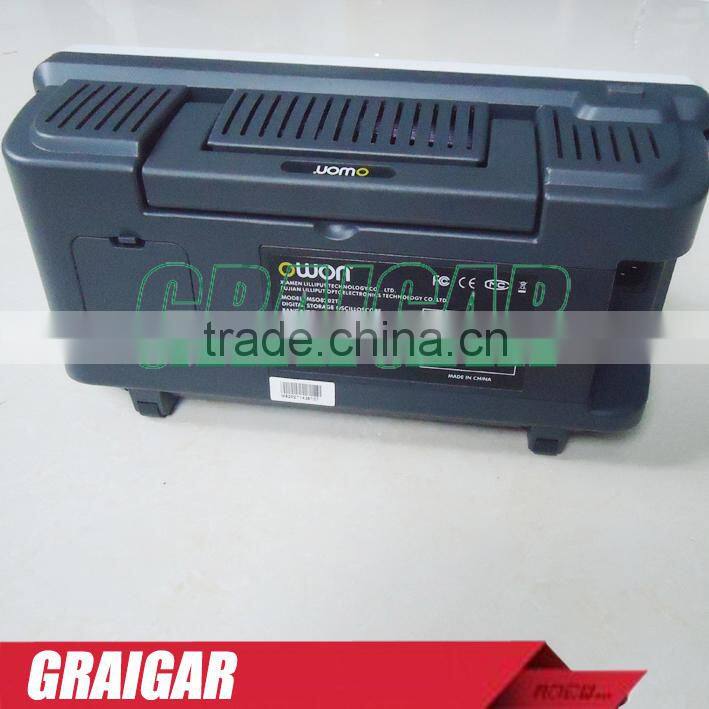

OWON MSO8202T Digital Oscilloscope 2+1 | LA - 16 200MHz photo-6
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OWON
Model Number:
MSO8202T
Contact Supplier Request Quote Chat Now
Shenzhen Graigar Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OWON
Model Number MSO8202T



OWON MSO8202T digital oscilloscope 2+1 | LA - 16 200MHz



Product Description







OWON MSO8202T digital oscilloscope 2+1 | LA - 16 200MHz



Models in the MSO Series

Model MSO5022S MSO7102T MSO7102TD MSO8102T MSO8202T

Bandwidth 25MHz 100MHz 100MHz 200MHz
Sample rate(Real time) 100MS/s 1GS/s (500MS/s for dual channels) 2GS/s (1GS/s for dual channels)
Horizontal Scale(S/div) 5ns/div~100s/div
step by 1~2.5~5		 2ns/div~100s/div step by 1~2~5 1ns/div~100s/div
step by 1~2~5
Rise time ≤14ns ≤3.5ns ≤1.7ns
Channels Dual channels + external trigger
Display 7.8''color LCD,
STN display		 8.0'' color LCD , TFT screen, 640×480 pixels
Dimension 370mm(L)x180mm(H)x120mm(W)
Weight 2.2kg



Main Features:
1. 2 in 1( DSO+LA )
2. 7.8 inch LCD color display
3. Support USB for data transmission to PC
4. USB Flash Disk Storage
5. 20 Automatic Measurements
6. Max.2M record length
7. Slope trigger and pulse trigger added

Application:
Design and Debug Circuit function test Mixed signal circuit test
Identified signals logic information Education & Training





Oscilloscope Specification
Model Name MSO5022S MSO7102T MSO7102TD MSO8102T MSO8202T
Bandwidth 25MHz 100MHz 100MHz 200MHz
Sample Rate(Real time) 100MS/s 1GS/s (500MS/s for dual channels) 2GS/s (1GS/s for dual channels)
Rise time ≤14ns ≤3.5ns ≤1.7ns
Display 7.8''color LCD,
STN display		 8.0'' color LCD , TFT screen, 640×480 pixels
Channel Dual channels + external trigger
Horizontal scale (s/div) 5ns/div-5s/div step by 1-2.5-5 2ns/div~100s/div,step by 1~2~5 1ns/div~100s/div
step by 1~2~5
DC accuracy(Average) Average>16:±(3%reading+0.05div) for ΔV
Vertical Sensitivity 5mV/div -5V/div 2mV/div -10V/div
DC Gain Accuracy ±3%
Vertical resolution (A/D) 8 bits (2 channels simultaneously)
Interpolation (sin x)/x
Max. Input Voltage 300V (DC + AC
PK-PK)		 400V ( DC + AC PK-PK )
Input impedance 1MΩ±2% in parallel with 20pF±3pF
Probe attenuation
factor		 1X, 10X, 100X, 1000X
Trigger Mode Edge, Video, Alternate,Pulse,Slope
Acquisition mode Normal, Peak Detect, Average
Record length Max.6K points on each channel Max.2M points
Waveform storage 4 waveforms
Automatic Measurement Vpp,Vavg,RMS,Frequency,Period,Vmax,Vmin,Vtop,Vbase,Width,Overshoot ,Preshoot
,Risetime,Falltime,+Width,-Width,+Duty,-Duty, Delay A→B↑, Delay A→B↓
Waveform math +, - , ×, ÷, FFT
Power supply 100-240V ACRMS,50Hz/60Hz,CATII
Lissajou’s
figure		 Bandwidth 25MHz 100MHz 200MHz
Phase
difference		 ±3 degrees
Communication interface USB,Support USB Flash Disk Starage
Fuse 1A, T grade, 250V







Logic Analyzer specification
Model Name MSO5022S MSO7102T MSO7102TD MSO8102T MSO8202T
Sample rate
(real time)		 20S/s~100MS/s 20S/s~400MS/s
Bandwidth 33MHz 66MHz
Channels 16
Record length 4M/channel
Input impedance 1MΩ±2%
Trigger mode Edge trigger, Bus trigger, State trigger, Data alignment trigger, Data width trigger,Distributed queue trigger
Trigger position setting Pre-trigger, mid-trigger, re-trigger
Threshold Voltage ±10V(4 settings)
Input Signal Range ±15V
Data search Available
Data System Binary system, Decimal system, Hex
Digital filter 0,1,2 optional
Setting storage 10 settings
USB flash disk storage Available
