Railway Scale Load Cell, Tension Load Cell

Railway Scale Load Cell, Tension Load Cell thumbnail-1
Railway Scale Load Cell, Tension Load Cell thumbnail-2
Railway Scale Load Cell, Tension Load Cell photo-1
Railway Scale Load Cell, Tension Load Cell photo-2
US$ 50 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
MANYYEAR
Model Number:
MLC152
Contact Supplier Request Quote Chat Now
Manyyear Technology Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name MANYYEAR
Model Number MLC152
Product Description
railway scale load cell, tension load cell



Features

Model: MLC152

Category: Bridge load cell

Range: 5t

Dimension: 816*150*94mm

Material: Alloy steel,stainless steel

Application: static light railway scale

Characteristic: Bridge load cell,railway scale sensor

Technology


Specification

comprehensive error:

0.2%FS

output resistance:

350±5Ω/700±5Ω

Rated output:

2±0.005mv/v

Insulation resistance:

≥5000MΩ(100VDC)

Non-linearity:

0.2%FS

Excitation voltage:

9~12VDC

Hysteresis:

0.1%FS

compensated temp:

-10~+40°C

Repeatability:

0.05%FS

use temperature:

-35~+65°C

Creep:

0.05%FS/10MIN

temp effect on zero:

0.05%FS/10°C

Zero balance:

±1%FS

Temp effect on span:

0.05%FS/10°C

Input resistance:

350±5Ω/700±5Ω

defend grade:

IP66 & IP68

Application

railway scale load cell, tension load cell

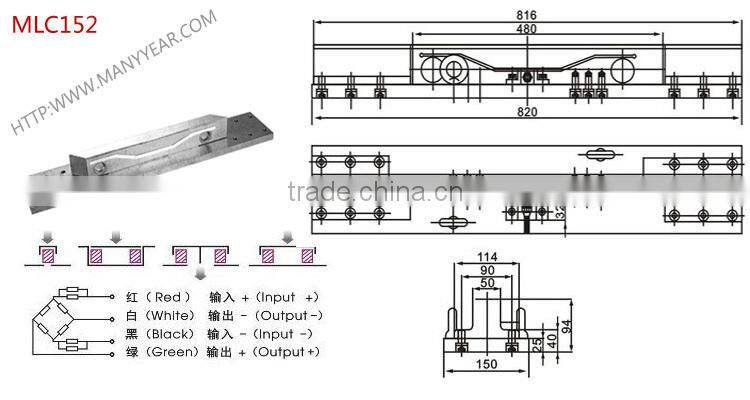

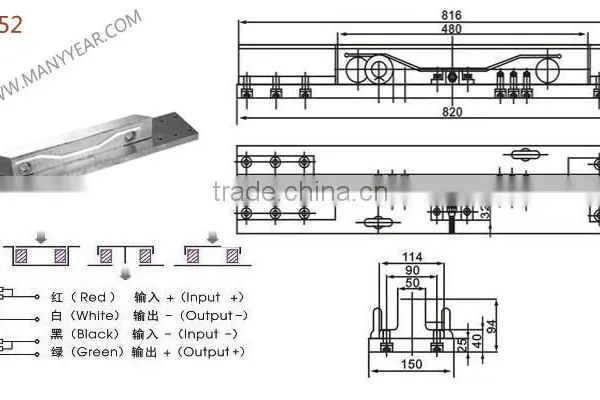

Product Dimension

railway scale load cell, tension load cell

Force type

 railway scale load cell, tension load cell

Packaging & Shipping

Product photo

railway scale load cell, tension load cell



Packing picture

railway scale load cell, tension load cell



Our Services

24Hr for response time.

5-7days for sample time.

15-25days for delivery time.

12 months for quality assurance time.

ODM, OEM support
