500kg Aluninum Weight Sensor, 500kg Electronic Scale

500kg Aluninum Weight Sensor, 500kg Electronic Scale thumbnail-1
500kg Aluninum Weight Sensor, 500kg Electronic Scale thumbnail-2
500kg Aluninum Weight Sensor, 500kg Electronic Scale photo-1
500kg Aluninum Weight Sensor, 500kg Electronic Scale photo-2
US$ 20 - 50 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
MANYYEAR
Model Number:
MLC646B
Contact Supplier Request Quote Chat Now
Manyyear Technology Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name MANYYEAR
Model Number MLC646B
Type Counting Scale
Power Supply NA
Display Type NA
Rated Load 500kg
Accuracy NA
Product Description
500kg aluninum weight sensor, 500kg electronic scale

Features

Model:MLC646B

Category: single point load cell

Range: 100kg, 150kg, 200kg, 300kg, 350kg, 500kg

Dimension: 200*50*40mm

Material: Alloy aluminum

Application: Platform scale, pricing scale, electronic scale, kitchen scale, postal scale

Characteristic: Platform scale weight sensor,500kg aluminum load cell

Technology


comprehensive error:

0.02%FS

output resistance:

350±3Ω

Rated output:

2±0.01mv/v

Insulation resistance:

≥5000MΩ(100VDC)

Non-linearity:

0.02%FS

Excitation voltage:

9~12VDC

Hysteresis:

0.02%FS

compensated temp:

-10~+40ºC

Repeatability:

0.02%FS

use temperature:

-20~+60ºC

Creep:

0.027%FS/10MIN

temp effect on zero:

 0.03%FS/10ºC

Zero balance:

±1%FS

Temp effect on span:

0.02%FS/10ºC

 Input resistance:

405±10Ω

defend grade:

IP65
Application

 500kg aluninum weight sensor, 500kg electronic scale

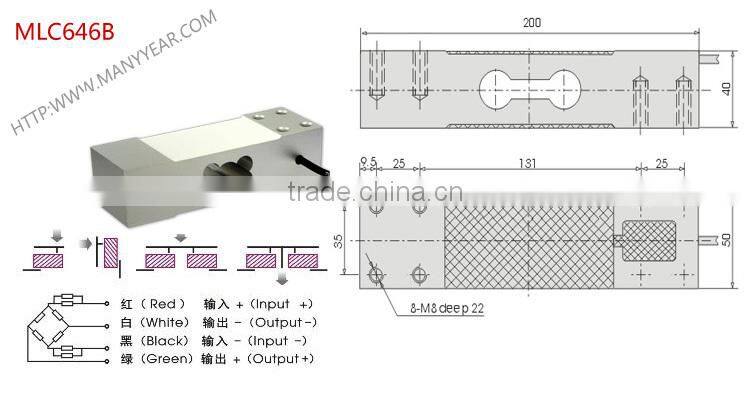

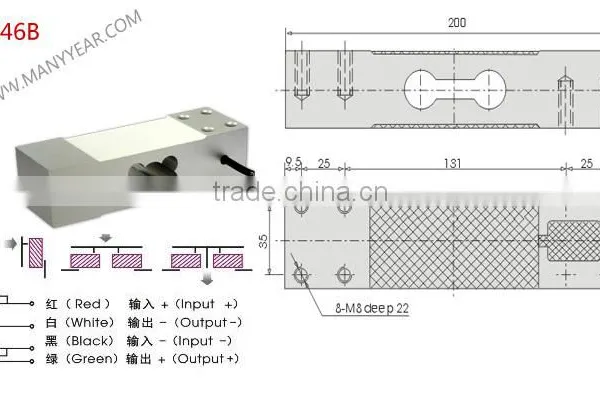

Product Dimension
500kg aluninum weight sensor, 500kg electronic scale

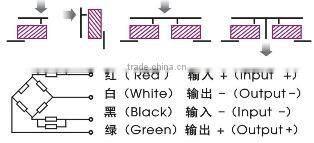

Force type

500kg aluninum weight sensor, 500kg electronic scale

Packaging & Shipping

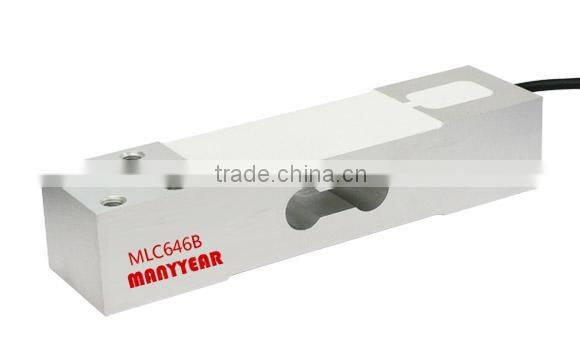

Product photo

500kg aluninum weight sensor, 500kg electronic scale



Packing picture

500kg aluninum weight sensor, 500kg electronic scale



Our Services

24Hr for response time.

5-7days for sample time.

15-25days for delivery time.

12 months for quality assurance time.

ODM, OEM support
