Handle Scale Load Cell, Mini Load Cell

Handle Scale Load Cell, Mini Load Cell thumbnail-1
Handle Scale Load Cell, Mini Load Cell thumbnail-2
Handle Scale Load Cell, Mini Load Cell photo-1
Handle Scale Load Cell, Mini Load Cell photo-2
US$ 2 - 10 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
MANYYEAR
Model Number:
MLC700
Contact Supplier Request Quote Chat Now
Manyyear Technology Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name MANYYEAR
Model Number MLC700
Type Other, postal scale
Power Supply NA
Display Type NA
Rated Load 50kg
Accuracy NA
Product Description
handle scale load cell, mini load cell

Features

Model:MLC700

Category:micro load cell

Range:10~50kg

Dimension:31.8*7.9*h (mm)

Material:alloy steel

Application:handle scale,kitchen scale,fish scale,post scale

Characteristic:postal scale load cell, handle scale load cell

Technology


Specification

comprehensive error:

0.3FS

output resistance:

1000±10Ω

Rated output:

1.7±0.03mv/v

Insulation resistance:

≥2000MΩ(100VDC)

Non-linearity:

0.3%FS

Excitation voltage:

5~10VDC

Hysteresis:

0.3%FS

compensated temp:

-10~+40ºC

Repeatability:

0.3%FS

use temperature:

-20~+55ºC

Creep:

0.2%FS/10MIN

temp effect on zero:

0.2%FS/10ºC

Zero balance:

1±0.1%FS

Temp effect on span:

0.2%FS/10ºC

Input resistance:

1090±10Ω

defend grade:

IP66

Application

handle scale load cell, mini load cell

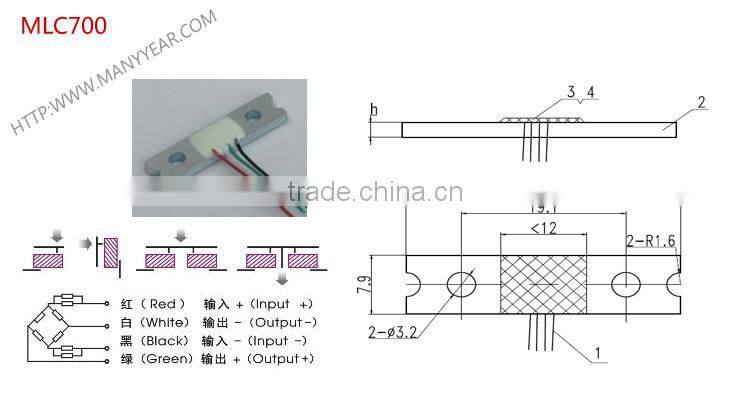

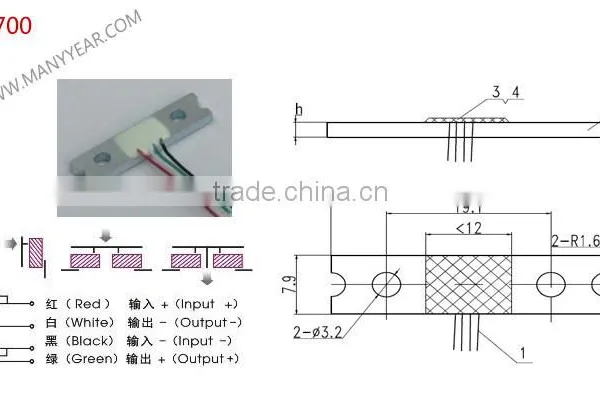

Product Dimension

handle scale load cell, mini load cell



Force type

handle scale load cell, mini load cell



Packaging & Shipping

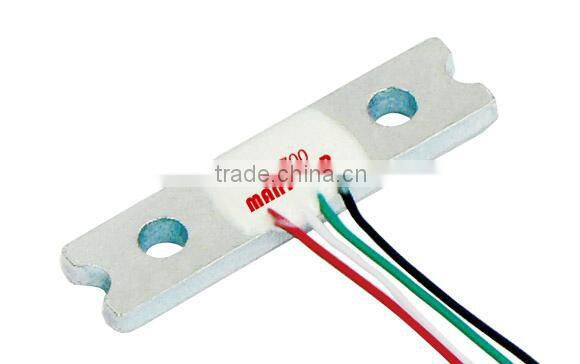

Product photo

handle scale load cell, mini load cell



Packing picture

handle scale load cell, mini load cell

Our Services

24Hr for response time.

5-7days for sample time.

15-25days for delivery time.

12 months for quality assurance time.

ODM, OEM support
