Alloy Steel Double Ended Shear Beam Load Cell

Alloy Steel Double Ended Shear Beam Load Cell thumbnail-1
Alloy Steel Double Ended Shear Beam Load Cell thumbnail-2
Alloy Steel Double Ended Shear Beam Load Cell thumbnail-3
Alloy Steel Double Ended Shear Beam Load Cell thumbnail-4
Alloy Steel Double Ended Shear Beam Load Cell thumbnail-5
Alloy Steel Double Ended Shear Beam Load Cell thumbnail-6
Alloy Steel Double Ended Shear Beam Load Cell photo-1
Alloy Steel Double Ended Shear Beam Load Cell photo-2
Alloy Steel Double Ended Shear Beam Load Cell photo-3
Alloy Steel Double Ended Shear Beam Load Cell photo-4
Alloy Steel Double Ended Shear Beam Load Cell photo-5
Alloy Steel Double Ended Shear Beam Load Cell photo-6
US$ 20 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
MANYYEAR
Model Number:
MLC800
Contact Supplier Request Quote Chat Now
Manyyear Technology Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name MANYYEAR
Model Number MLC800
Usage Other, weighing beam
Theory Resistance Sensor
Output Analog Sensor



Product Description

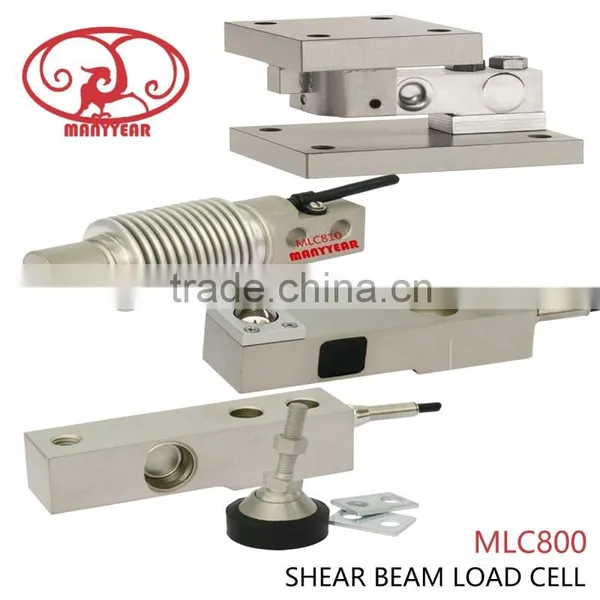

alloy steel double ended shear beam load cell



Product specification

Category:shear beam load cell

Range: min 0.2kg; max 30t

Material: alloy steel, stainless steel

Application:Testing machine,Tension test,Belt scale,Batching scale,Feeding scale,Forklift scale,Packing scale, Platform scale,Tank scale

Base Specification

comprehensive error:

0.02-0.1%FS

output resistance:

700±5Ω

Rated output:

1.0mv/v;2.0mv/v

Insulation resistance:

≥5000MΩ(100VDC)

Non-linearity:

0.05-0.1%FS

Excitation voltage:

9~12VDC

Hysteresis:

0.05-0.1%FS

compensated temp:

-10~+40℃

Repeatability:

0.03-0.1%FS

use temperature:

-20~+55℃

Creep:

0.03-0.1%FS/10MIN

temp effect on zero:

0.05%FS/10℃

Zero balance:

±1%FS

Temp effect on span:

0.05%FS/10℃

Input resistance:

700±10Ω

defend grade:

IP65,IP66 & IP68



Product Index
   Model    Dimension             (mm)            Load range Precision  Rate output            Material
MLC801 203*43*37 0.5t,1t,2t,3t,5t,10t,20t 0.03%FS 2±0.003mv/v Alloy steel, stainless steel
235*52*48
279*67*60
318*82*70
MLC802 130*53.7*26 0.5t,1t,2t,2.5t,5t 0.03%FS 3±0.003mv/v Alloy steel, stainless steel
130*53.7*28
171*77.2*32
MLC803 130*31.8*31.8 0.5~2t,2.5~5t,10t 0.02%FS 3±0.003mv/v Alloy steel, stainless steel
171.5*38.1*38.1
222.3*50.8*50.8
MLC803Y 130*31*23 500,1000,1500,2000kg 0.02%FS 3±0.003mv/v Alloy steel, stainless steel
MLC803X 130*31.8*31.8 0.5t,1t,2t,2.5t,5t 0.02%FS 3±0.003mv/v Alloy steel, stainless steel
172*38*38
MLC803K 130*31.8*31.8 0.5~2t,2.5~5t,10t 0.02%FS 3±0.003mv/v  Alloy steel, stainless steel
171.5*38.1*38.1
222.3*50.8*50.8
MLC803D 130*31*30 500,1000,1500,2000kg 0.02%FS 3±0.003mv/v Alloy steel, stainless steel
MLC804 153*36*26 50,100,200,300,500kg 0.02%FS 1.8±0.003&
3±0.003mv/v		 Alloy steel, stainless steel
MLC805 130*32*32 1t,2t,2.5t,3t,5t 0.03%FS 2±0.003mv/v Alloy steel,stainless steel
171.5*38*38
MLC806 166*35*30.5 100kg,250kg,850kg 0.03%FS 2±0.003mv/v Alloy steel, stainless steel
MLC807 130*31.8*31.8 500,1000,1500,2000, 2500,3000, 5000kg 0.03%FS 2±0.003mv/v Alloy steel, stainless steel
171.5*38.1*38.1
MLC808 130*31*30 0.5t, 1t, 2t 0.03%FS 2±0.003mv/v Alloy steel, stainless steel
MLC809 130*31*30 500~2000kg 0.03%FS 2±0.003mv/v Alloy steel, stainless steel
MLC810 120*25.5 10, 20, 30, 50, 100, 200, 300, 350, 500kg 0.02%FS 2±0.003mv/v Alloy steel, stainless steel

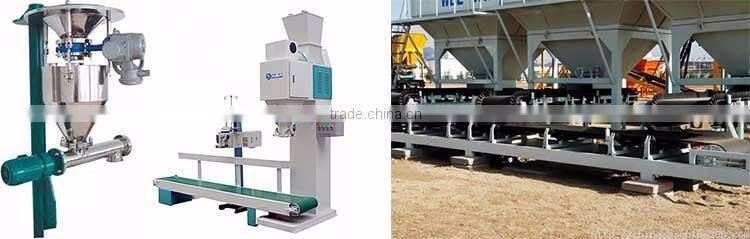

Application

 alloy steel double ended shear beam load cell



Packaging & Shipping

Environment-protected polybag + Color box + carton box+ damp proof packing

Ocean Freight, Air freight, DHL, FEDEX, TNT,SF, EMS…

Pic

Our Services

24Hr for response time.

5-7days for sample time.

15-25days for delivery time.

12 months for quality assurance time.

ODM, OEM support

Company Information



Our Factory

Provide Design, manufacture, sales, server of load cell since 1998.

20,000 square meter industrial park

1000+ worker.

Pic

 alloy steel double ended shear beam load cell

Our Intelligence

ISO, OIML, ROHS, CE.

Pic



Our Equipment

800t hydraulic machince.

Precision balance laboratory.

0.001g to 20t Weihing machince.

Truck scale test station.

CNC machince.

Life test chamber

Pic
