Help Center33.3mV Output 6" Melt Pressure Transducer for Blow Film Machinery
Related Products
-
K Thermo Rigid Melt Pressure Transmitter With 4-20mA OutputUS$ 30 - 230MOQ: 1 Piece -
Rigid Stem 0-10V Melt Pressure Transducer With 0.5% AccuracyUS$ 30 - 200MOQ: 1 Piece
-
Standard Mv/v Strain Gauge Hydraulic Pressure TransmitterUS$ 25 - 50MOQ: 1 Piece
-
Silicon Flush Membrane Pressure TransmitterNegotiableMOQ: 1 Piece
-
3.33mv/v Rigid Stem Melt Pressure Transducer With J ThermoUS$ 80 - 200MOQ: 1 Piece
Description
PT124G-112 is 33.3mV output 6" melt pressure transducer for blow film machinery , this series is rigid stem Melt Pressure Sensor with mV/V output, This melt pressure sensor adopts special construction and excellent alloy elastic membrane to reduce the thermal draft ,improve the accuracy, good anti-jamming performance andt built in 80% shunt calibration, the melt pressure sensor can match our N series pressure instrument also can match the pressure instrument or controller of other brand .this melt pressure sensor are suitable for pressure measuring and controlling in melt fluid medium, such as the plastic & polymer in the process equipments. the melt pressure sensor is high accuracy , and the output is standard , which Can replace Dynisco / Gefran /GP50 etc. international brand absolutely .
Feature
0.5% accuracy , rigid stem melt pressure sensor
Stainless steel welding,Easy to install
Internal 80% calibration
Excellent stability and repeatability
standard output , Can replace Dynisco / Gefran /GP50 etc. international brand absolutely .
Application
various plastic extrusion lines
chemical fiber manufacturing equipment
plastic rubber machine
polyester equipment
petrochemical equipment
Specification
Name |
33.3mV output 6" melt pressure transducer for blow film machinery |
Model |
PT124G-112 |
Pressure range |
0-3.5MPa…0-150MPa (0-500psi…20000psi) |
Over Pressure |
1.5 X FSO |
Combined Error |
0.25% or 0.5% FSO (Including Linearity, Repeatability & Hysteresis) |
Output |
2mV/V; 3.33mV/V |
Input Voltage |
10VDC |
Repeatability |
+/- 0.2%FSO |
Bridge Resistance Input |
345 Ohms minimum |
Bridge Resistance Output |
350 Ohms +/- 10% |
Internal Shunt Calibration (R-Cal) |
80% FSO +/- 1% |
Insulation Resistance |
200 megohms @ 100 Vdc |
Max Diaphragm Temperature |
400 °C |
Mounting Torque |
500 inch/lbs. max. |
Standard Wetted Parts |
Diaphragm coated 15-5 PH SST |
Electrical connector |
5pins , 6pins optional |
Process connector |
M14×1.5, 1/2-20UNF, M18×1.5 Optional |

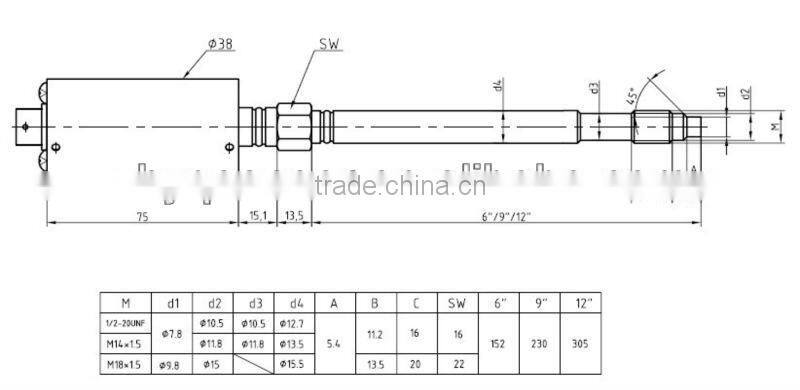

Dimension
Order Guide : with "* "are required , with "---"is optional
Model |
Range |
output |
Rigid & flexible length (inch) |
Screw Thread |
Electric connector |
Accuracy |
others |
PT124G-112 |
* |
* |
* |
* |
* |
* |
--- |
Example:PT124G-112-500Bar-2mV/V -6”-1/2-20UNF-5PIN-0.5% |
|||||||
this 33.3mV output 6" melt pressure transducer for blow film machinery
Our products are widely used in the field of hydraulic pressure, air pressure, petrochemical industry, automotive, air condition and compressor, construction machinery, plastic extrusion, chemical fiber, plastic rubber machine, non-woven fabrics and etc.
ZHYQ has a strong R&D team with more than 10 staffs, there are 3 senior engineers, 5 intermediate engineers, in the major of mechatronics. They have successfully developed a lot of new and High-tech products, won a number of patents and awards.
can mating with our N series to local display the pressure .
