Rectangular Diaphragm Pressure Gauge

Rectangular Diaphragm Pressure Gauge photo-1

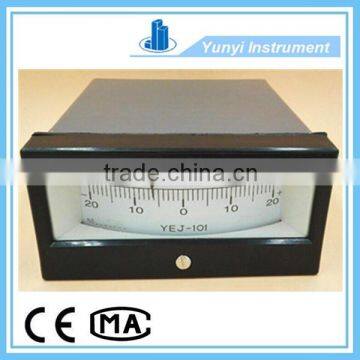

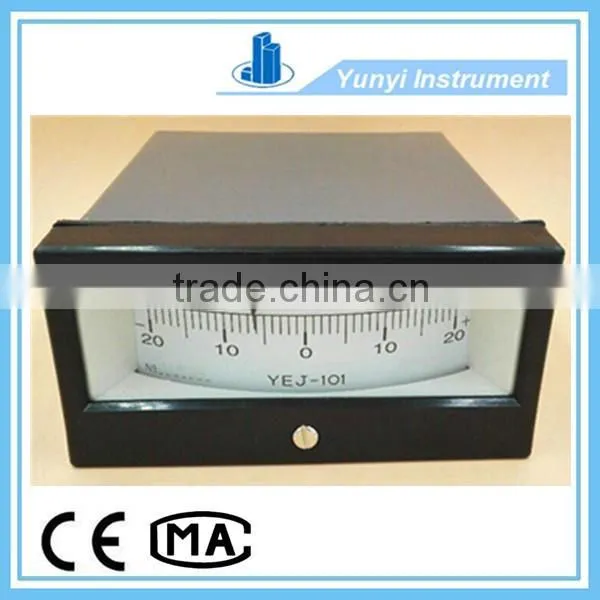

Rectangular Diaphragm Pressure Gauge photo-2

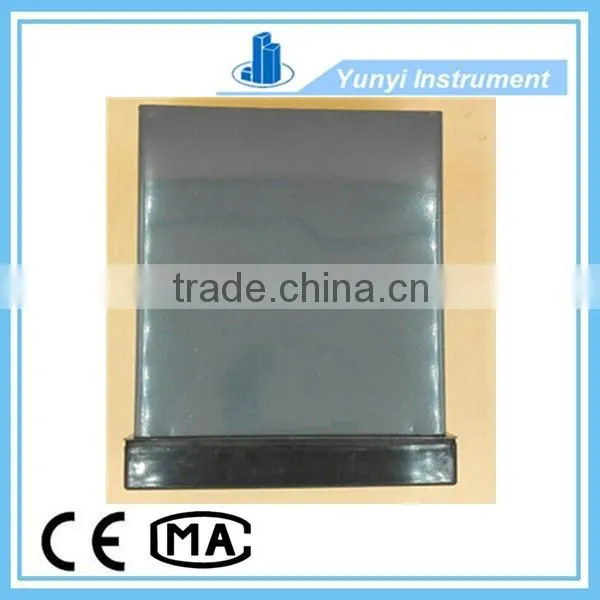

Rectangular Diaphragm Pressure Gauge photo-3

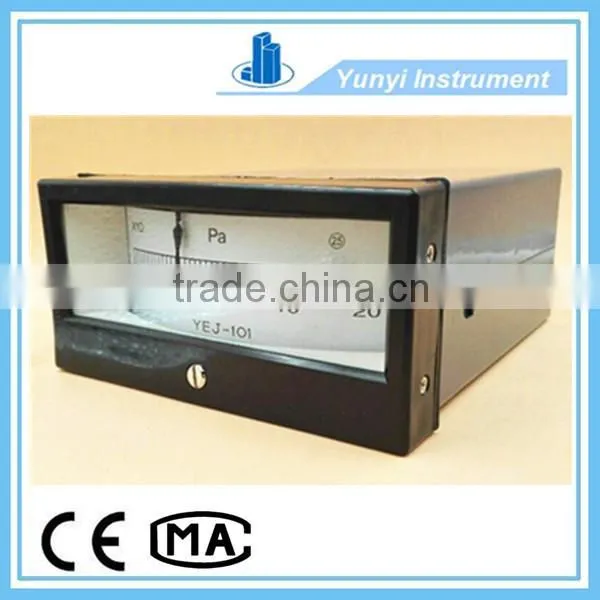

Rectangular Diaphragm Pressure Gauge photo-4

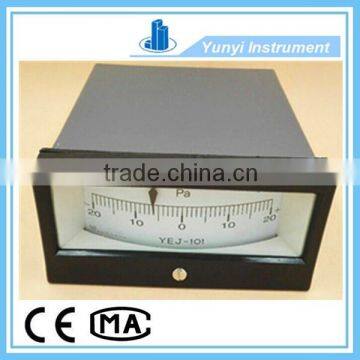

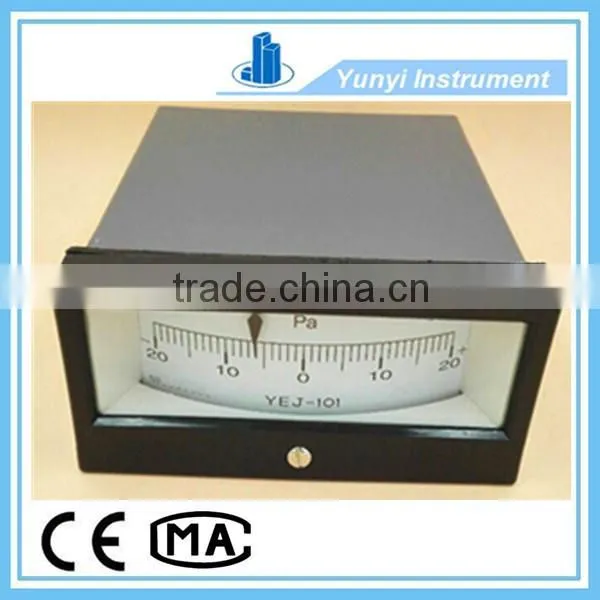

Rectangular Diaphragm Pressure Gauge photo-5

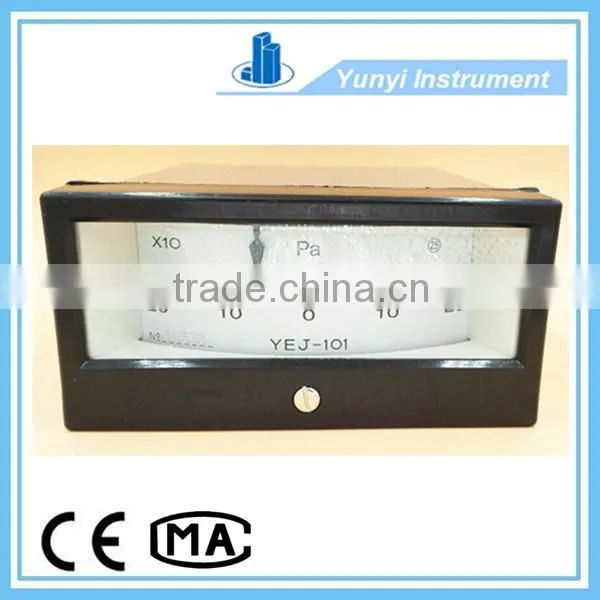

Rectangular Diaphragm Pressure Gauge photo-6
US$ 15 - 60 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shaanxi, China
Brand Name:
Yunyi
Model Number:
YE-J101
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo Tianjin Guangzhou Qingdao Qinhuangdao Dalian Shenzhen Zhoushan Yingkou Erlianhaoteshi Huoerguosi Dandong Alashan
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shaanxi, China
Brand Name Yunyi
Model Number YE-J101

Rectangular diaphragm pressure gauge

Product Description



Outline:
Rectangular capsule pressure gauge for boiler ventilation equipment can not afford erosion of copper alloy and neutral, non-hazardous explosive gas pressure and vacuum measurements of micro and two with double adjustment (double limit signaling) role to achieve position adjustment or limit alarm purposes.


Basic parameters:

Rectangular capsule pressure gauge accuracy class 2.5

Rectangular capsule gauge environmental conditions YEJ-101 type -20 ~ 60 °C

                YEJ-121 type 0 ~ 50 °C

Rectangular capsule gauge relative humidity less than 85%

Rectangular capsule pressure gauge electrical indicators YEJ-121 type

                Setting error of less than 2.5% of full scale

                Output contact capacity AC non-inductive load 3A220V

                Power supply AC 220V

Rectangular capsule gauge power consumption less than 5W

Rectangular capsule pressure gauge interfaces Φ8 (equipped with a hose inside diameter Φ6)



Positive presusre(Pa)

Negative pressure(Pa)

Positive/negative pressure(Pa)

0~160

-160~0

-80~+80

0~250

-250~0

-120~+120

0~400

-400~0

-200~+200

0~600

-600~0

-300~+300

0~1000

-1000~0

-500~+500

0~1600

-1600~0

-800~+800

0~2500

-2500~0

-1200~+1200

0~4000

-4000~0

-2000~+2000

0~6000

-6000~0

-3000~+3000

0~10000

-10000~0

-5000~+5000

0~16000

-16000~0

-8000~+8000

0~25000

-25000~0

-12000~+12000

0~40000

-40000~0

-20000~+20000








Packaging & Shipping



Package: standard export packing , including instructions and certificate
Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder




Company Information

  Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter,pressure gauges,pressure calibrator and deadweight tester.And we also develop flow meter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other field...







Buying Guides







Detailed Images

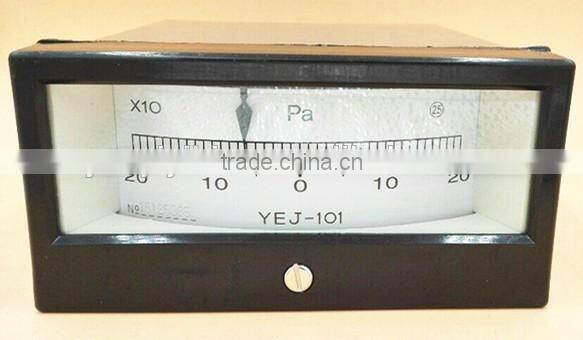

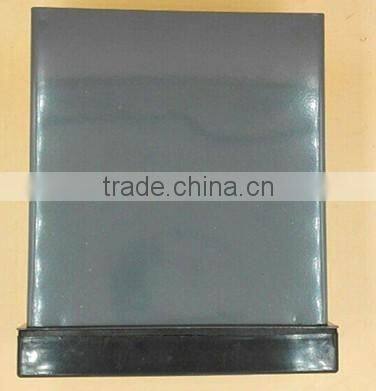

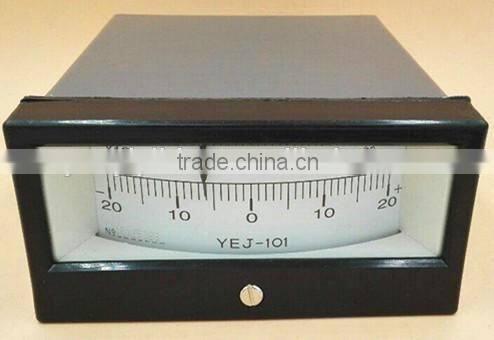

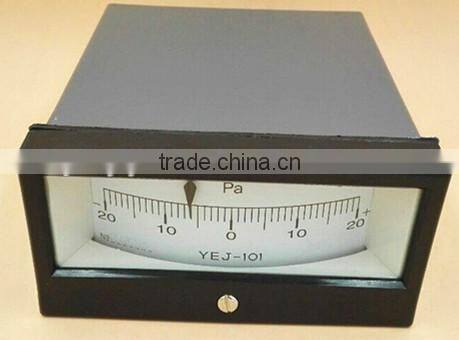

 Rectangular diaphragm pressure gaugeRectangular diaphragm pressure gaugeRectangular diaphragm pressure gaugeRectangular diaphragm pressure gauge

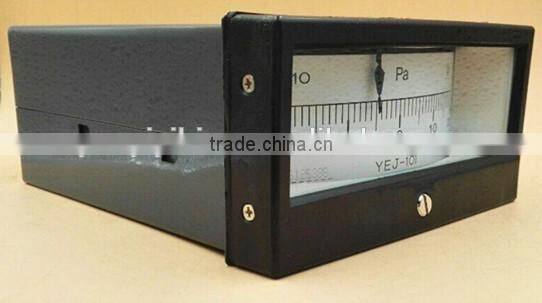

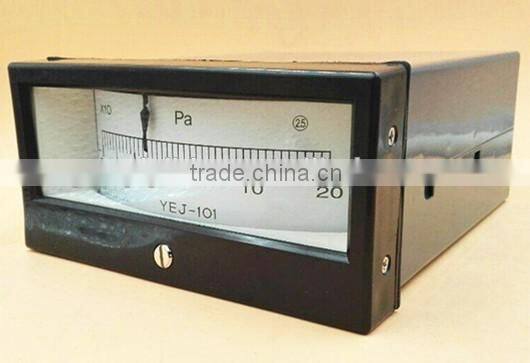

Rectangular diaphragm pressure gaugeRectangular diaphragm pressure gauge
