Help CenterRigid Stem 0-10V Melt Pressure Transducer With 0.5% Accuracy
Related Products
-
Standard Mv/v Strain Gauge Hydraulic Pressure TransmitterUS$ 25 - 50MOQ: 1 Piece -
Silicon Flush Membrane Pressure TransmitterNegotiableMOQ: 1 Piece
-
3.33mv/v Rigid Stem Melt Pressure Transducer With J ThermoUS$ 80 - 200MOQ: 1 Piece
-
Rigid 0-10V Output Melt Pressure Sensor to Replace PT460EUS$ 30 - 200MOQ: 1 Piece
-
Rigid Melt Pressure Transmitter With J ThermocoupleUS$ 15 - 150MOQ: 1 Piece
Description

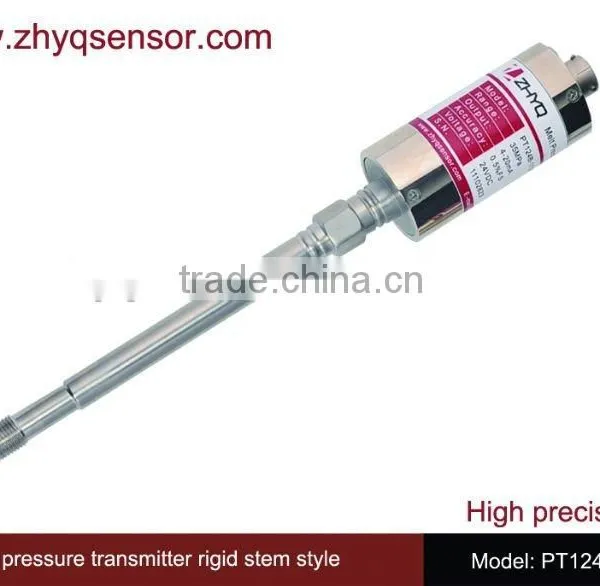

PT124B-112 is rigid stem 0-10V melt pressure transducer with 0.5% accuracy , this series is high accuracy rigid 0-10V output Melt Pressure sensor for extruder machinery , This melt pressure sensor adopts special construction and excellent alloy elastic membrane to reduce the thermal draft & improve the accuracy, good anti-jamming performance andt built in 80% shunt calibration, it can match our N series pressure instrument also can match the pressure instrument or controller of other brand . also this melt pressure sensor is suitable for pressure measuring and controlling in melt fluid medium, such as the plastic & polymer in the process equipments. the melt pressure sensor of PT124G-112 welding with amplify circuit can be change to PT124B-112 , the signal be connected with PLC directly ,Can replace Dynisco / Gefran /GP50 etc. international brand absolutely .
Feature
High-standard stability & quality, good anti-jamming performance
Stainless steel Seal , Simple Installation
rigid stem melt pressure sensor , 80% inner calibration
Excellent stability and repeatability
can replace Dynisco or Gefran products absolutely
rigid stem 4-20mA output melt pressure sensor
Application
various plastic extrusion lines
chemical fiber manufacturing equipment
plastic rubber machine
polyester equipment
petrochemical equipment
Specification
Name |
rigid stem 0-10V melt pressure transducer with 0.5% accuracy |
Model |
PT124B-112 |
Pressure range |
0-3.5MPa…0-150MPa (0-500psi…20000psi) |
Over Pressure |
1.5 X FSO |
Combined Error |
0.25% or 0.5% FSO (Including Linearity, Repeatability & Hysteresis) |
Output |
4-20mA ,0-5V,0-10V |
Input Voltage |
24VDC |
Repeatability |
+/- 0.2%FSO |
Bridge Resistance Input |
345 Ohms minimum |
Bridge Resistance Output |
350 Ohms +/- 10% |
Internal Shunt Calibration (R-Cal) |
80% FSO +/- 1% |
Insulation Resistance |
200 megohms @ 100 Vdc |
Max Diaphragm Temperature |
400 °C |
Mounting Torque |
500 inch/lbs. max. |
Standard Wetted Parts |
Diaphragm coated 15-5 PH SST |
Electrical connector |
6pins |
Process connector |
M14×1.5, 1/2-20UNF, M18×1.5 Optional |
Dimension
Order Guide : with "* "are required , with "---"is optional
Model |
Range |
output |
Rigid & flexible length (inch) |
Screw Thread |
Electric connector |
Accuracy |
others |
PT124B-112 |
* |
* |
* |
* |
* |
* |
--- |
Example:PT124B-112-500Bar-4-20mA -6”-1/2-20UNF-6PIN-0.5% |
|||||||
this rigid stem 0-10V melt pressure transducer with 0.5% accuracy can mating with our N series to local display the pressure .
Our products are widely used in the field of hydraulic pressure, air pressure, petrochemical industry, automotive, air condition and compressor, construction machinery, plastic extrusion, chemical fiber, plastic rubber machine, non-woven fabrics and etc.
ZHYQ has a strong R&D team with more than 10 staffs, there are 3 senior engineers, 5 intermediate engineers, in the major of mechatronics. They have successfully developed a lot of new and High-tech products, won a number of patents and awards.
