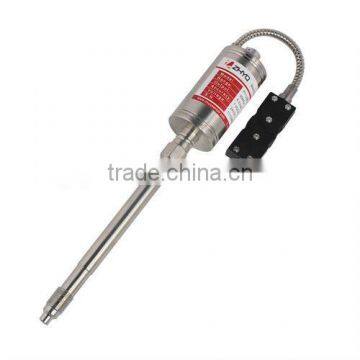

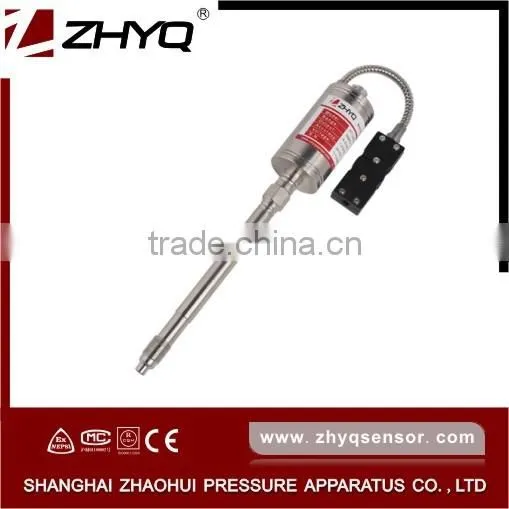

3.33mv/v rigid stem melt pressure transducer with J thermo
- 8000 Piece / Pieces per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- New 913A0124H01 York FRICK low-pressure pressure sensor, pressure range 0-200psi
- New 913A0124H02 York FRICK high-pressure pressure sensor, pressure range 0-500psi
- HBM S Type S9M Force Load Cell
- HBM CFT+ Force Sensor
- HBM C15 Force Transducer With 4MV/V Signal Output
- HBM CFT Series Piezoelectric Force Transducer
Product Details
Place of Origin: | Shanghai, China | Brand Name: | ZHYQ | Model Number: | PT124G-111T |
Product Description
Description
PT124G-111T is 3.33mv/v rigid stem melt pressure transducer with J thermo , this series is 0.5% accuracy rigid stem melt pressure transducer with thermocouple , this melt pressure transducer with thermocouple can measure the pressure and temperature at one point. This series melt pressure transducer can be used together with the PY Series Intelligent Digital Pressure Instrument of ZHYQ or other brand instrumentation. Zero & full span can be adjustable, the melt pressure transducer of PT124G-111T welding with amplify signal can be changed to PT124B-111T , can connected with PLC analytic system directly . With the advantage of high precision and reliable pressure measuring and good quality, internal 80% calibration and can absolutely replace other brand like Dynisco , Gefran , GP50 etc.
Feature
High-standard quality
Stainless steel Seal
Simple Installation
80% inner calibration
Excellent stability and repeatability
Rigid stem melt pressure transducer with thermocouple
Application
this melt pressure transducer suitable for various plastic extrusion lines
chemical fiber manufacturing equipment
plastic rubber machine
polyester equipment
petrochemical equipment
Specification
Name | 3.33mv/v rigid stem melt pressure transducer with J thermo |
Model | PT124G-111T |
Pressure range | 0-3.5MPa…0-150MPa (0-500psi…20000psi) |
Over Pressure | 1.5 X FSO |
Combined Error | ± 0.5% FSO; ±1.0% FSO (Including Linearity, Repeatability & Hysteresis) |
Output | 2mV/V; 3.33mV/V |
Input Voltage | 10VDC |
Repeatability | +/- 0.2%FSO |
Bridge Resistance Input | 345 Ohms minimum |
Bridge Resistance Output | 350 Ohms +/- 10% |
Internal Shunt Calibration (R-Cal) | 80% FSO +/- 1% |
Insulation Resistance | 200 megohms @ 100 Vdc |
Max Diaphragm Temperature | 400 °C |
Mounting Torque | 500 inch/lbs. max. |
Standard Wetted Parts | Diaphragm coated 15-5 PH SST |
Thermocouple type | J, K, E, PT100 |
Electrical connector | 5PIN connector, other connector optional |
Process connector | M14×1.5, 1/2-20UNF, M18×1.5 Optional |

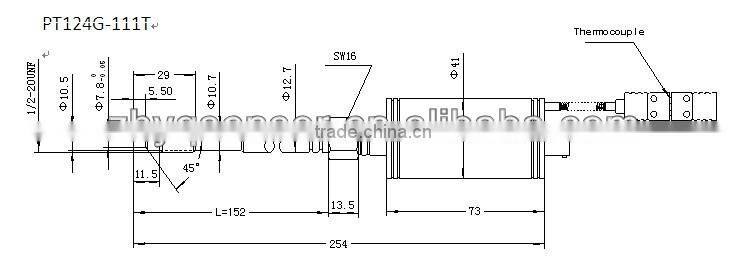

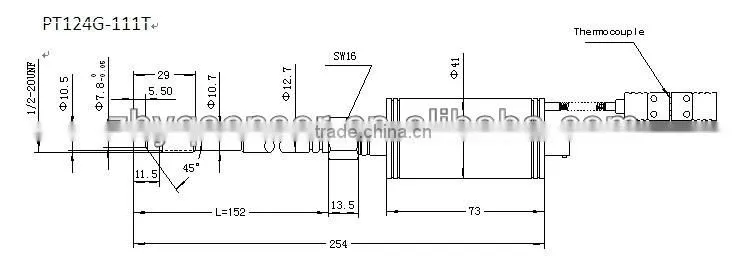

Dimension
Order Guide : with "* "are required , with "---"is optional
Model | Range | output | Rigid & flexible length (inch) | Screw Thread | Thermocouple | Electric connector | Accuracy | others |
PT124G-111T | * | * | * | * | * | * | * | --- |
Example:PT124G-111T-500Bar-2mV/V -6”-1/2-20UNF-J-5PIN-1.0% |
This 3.33mv/v rigid stem melt pressure transducer with J thermo , can mating with our N series digital pressure gauge to local display the pressure and temperature
Our products are widely used in the field of hydraulic pressure, air pressure, petrochemical industry, automotive, air condition and compressor, construction machinery, plastic extrusion, chemical fiber, plastic rubber machine, non-woven fabrics and etc.
ZHYQ has a strong R&D team with more than 10 staffs, there are 3 senior engineers, 5 intermediate engineers, in the major of mechatronics. They have successfully developed a lot of new and High-tech products, won a number of patents and awards.
