Help CenterK Thermo Rigid Melt Pressure Transmitter With 4-20mA Output
Related Products
-
Rigid Stem 0-10V Melt Pressure Transducer With 0.5% AccuracyUS$ 30 - 200MOQ: 1 Piece -
Standard Mv/v Strain Gauge Hydraulic Pressure TransmitterUS$ 25 - 50MOQ: 1 Piece
-
Silicon Flush Membrane Pressure TransmitterNegotiableMOQ: 1 Piece
-
3.33mv/v Rigid Stem Melt Pressure Transducer With J ThermoUS$ 80 - 200MOQ: 1 Piece
-
Rigid 0-10V Output Melt Pressure Sensor to Replace PT460EUS$ 30 - 200MOQ: 1 Piece
Description

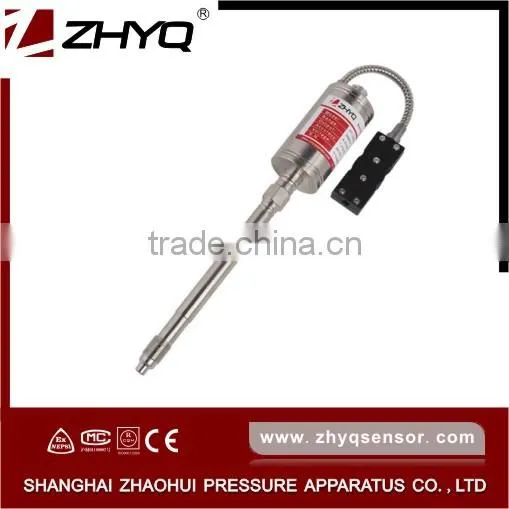

PT124B-112T is K thermo rigid melt pressure transmitter with 4-20mA output , this melt Pressure transmitter can measure the pressure and temperature in one point. This model adopts special construction and excellent alloy elastic membrane to reduce the thermal draft ,improve the accuracy, good anti-jamming performance andt built in 80% shunt calibration, it can match our N series pressure instrument also can match the pressure instrument or controller of other brand . It is suitable for pressure measuring and controlling in melt fluid medium, such as the plastic & polymer in the process equipments. Can replace Dynisco / Gefran /GP50 etc. international brand absolutely . PT124G-112T welding with amplify circuit can be change to PT124B-112T , the signal be connected with PLC directly
Feature
High accuracy
Stainless steel welding
Easy to install
Internal 80% calibration
Excellent stability and repeatability
standard output , Can replace Dynisco / Gefran /GP50 etc. international brand absolutely .
Application
various plastic extrusion lines
chemical fiber manufacturing equipment
plastic rubber machine
polyester equipment
petrochemical equipment
Specification
Name |
K thermo rigid melt pressure transmitter with 4-20mA output |
Model |
PT124B-112T |
Pressure range |
0-3.5MPa…0-150MPa (0-500psi…20000psi) |
Over Pressure |
1.5 X FSO |
Combined Error |
± 0.25% FSO; ±0.5% FSO (Including Linearity, Repeatability & Hysteresis) |
Output |
4-20mA , 0-5V ,0-10V |
Input Voltage |
24VDC |
Repeatability |
+/- 0.2%FSO |
Bridge Resistance Input |
345 Ohms minimum |
Bridge Resistance Output |
350 Ohms +/- 10% |
Internal Shunt Calibration (R-Cal) |
80% FSO +/- 1% |
Insulation Resistance |
200 megohms @ 100 Vdc |
Max Diaphragm Temperature |
400 °C |
Mounting Torque |
500 inch/lbs. max. |
Standard Wetted Parts |
Diaphragm coated 15-5 PH SST |
Thermocouple type |
J, K, E, PT100 |
Electrical connector |
6 pins |
Process connector |
M14×1.5, 1/2-20UNF, M18×1.5 Optional |
Dimension
Order Guide : with "* "are required , with "---"is optional
Model |
Range |
output |
Rigid & flexible length (inch) |
Screw Thread |
Thermocouple |
Electric connector |
Accuracy |
others |
PT124B-112T |
* |
* |
* |
* |
* |
* |
* |
--- |
Example:PT124B-112T-500Bar-4-20mA -6”-1/2-20UNF-J-6PIN-0.5% | ||||||||
this K thermo rigid melt pressure transmitter with 4-20mA output can mating with our N series to local display the pressure and temperature at the same time .
Our products are widely used in the field of hydraulic pressure, air pressure, petrochemical industry, automotive, air condition and compressor, construction machinery, plastic extrusion, chemical fiber, plastic rubber machine, non-woven fabrics and etc.
ZHYQ has a strong R&D team with more than 10 staffs, there are 3 senior engineers, 5 intermediate engineers, in the major of mechatronics. They have successfully developed a lot of new and High-tech products, won a number of patents and awards.
