Description

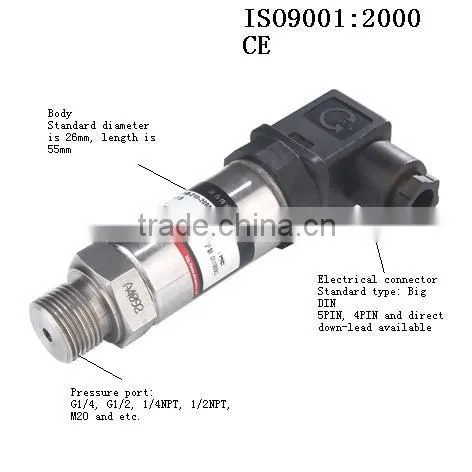

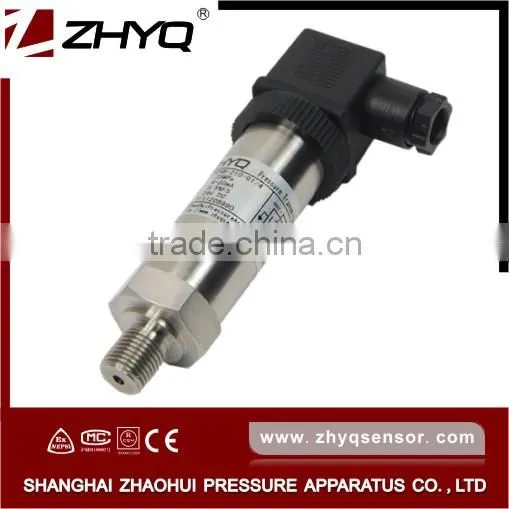

PT124G-210 is standard mv/v strain gauge hydraulic pressure transmitter , this series of pressure transmitters is the standard type , adopt strain gauge sensor chip technology , which suitable high pressure range , has been carefully designed to cover the majority of industrial applications with instruments readily available from stock. Compact design and robust construction make these instruments suitable for all application in machine construction, process control, laboratory or quality and materials testing equipment. PT124G-210 welding a amplification circuit will be change to PT124B-210 , the Analog signal output can connect with PLC directly .
Feature
Various industrial standard signal output
Various electrical connector available
Certain stock for shortening delivery time
High accuracy, free of calibration
Various dimension design
Application
Petrochemical industry
Health and Medical
Food & Beverage Processing
Hydraulic pressure
Auto-controlling house
Constant pressure water supply
Liquid pressure measuring and controlling in automatization fields.
Specification
Name |
standard mv/v strain gauge hydraulic pressure transmitter |
Model |
PT124G-210 |
Range: |
0-50bar~6000bar |
Accuracy: |
0.5%FS; 1%FS |
Nonlinearity: |
0.2%FS |
Reliability: |
0.2%FS |
Output: |
1.5mV/V , 2mV/V |
Input voltage: |
10V DC |
Operate Temperature: |
-20~80°C |
Compensated temperature: |
0~75°C |
Overload pressure: |
150%FS |
Medium material: |
stainless steel (SS304 or SS316) |
Electric connector: |

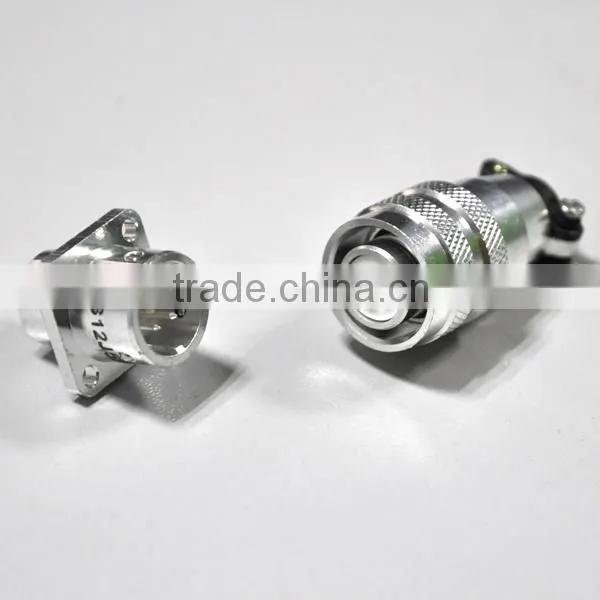

Hirschman(DIN), M12(4pins) , 5pins , gland cable, direct cable optional |
Process connector: |
G1/4, G1/2, 1/2NPT, 1/4NPT, M12*1.5(Customer design) |
Housing Shell Diameter: |
22mm,23mm ,26mm , 38mm optional |
Dimension
Remarks
The standard mv/v output strain gauge China pressure transmitter accuracy is 0.5%, and size diameter is 26mm ,if you need special ( 22mm, 23mm , 26mm, 38mm),when order ,please mention it , and we will send you the drawing to confirm .
Order Guide with * are required, with --- is optional
Model |
Range (bar) |
Output |
Screw Thread |
Electric connection |
Accuracy |
Diameter (mm) |
Other requirement |
PT124G-210 |
* |
* |
* |
* |
* |
* |
--- |
Example: PT124G-210-60Bar-2mV/V-G1/2-Hirschmann-0.5%-26 | |||||||
Our products are widely used in the field of hydraulic pressure, air pressure, petrochemical industry, automotive, air condition and compressor, construction machinery, plastic extrusion, chemical fiber, plastic rubber machine, non-woven fabrics and etc.
ZHYQ has a strong R&D team with more than 10 staffs, there are 3 senior engineers, 5 intermediate engineers, in the major of mechatronics. They have successfully developed a lot of new and High-tech products, won a number of patents and awards.
