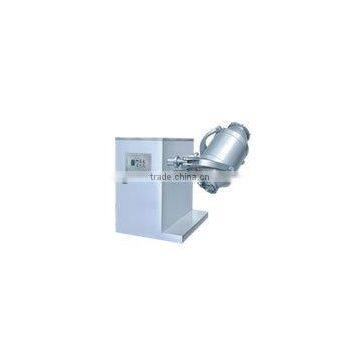

3D Motion Mixer
- 1 Set / Sets per Month
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | SPM | |
| Model Number | SWH | Application | Powder | |
| Type | Mixing Machine | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
This machine is applicable for mixing of powdery and granular materialthree-dimensional mixer, 3D motion mixer
Working Principle:
This machine is composed of base, governor motor shaft, rotary connecting rod and barrel etc.. The material barrel is driven by the positive shaft to make complex movement including horizontal move, rotation and rolling etc., which make the material move in 3 directions along the barrel, therefore, highly uniform mixing of various material is realized.
This machine is a kind of full closed high effcient energy saving mixer without germ and dust. When the material is being mixed, no centrifugal force effect or situation of gravity segregation or laminar accumulation occur. In addition, it has large loading capacity, short mixing time and high efficiency
Technical Parameters :
Item | SWH-100 | SWH-200 | SWH-400 | SWH- 600 | SWH- 800 | SWH-1000 | SWH-1200 | SWH-1500 |
Barrel volume (L) | 100 | 200 | 400 | 600 | 800 | 1000 | 1200 | 1500 |
Max loading volume(L) | 75 | 160 | 320 | 480 | 640 | 800 | 950 | 1200 |
Max loading weight(kg) | 75 | 160 | 320 | 480 | 640 | 800 | 950 | 1200 |
Spindle speed(r/min) | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 |
Motor power(kw) | 1.5 | 2.2 | 4 | 5.5 | 7.5 | 7.5 | 11 | 15 |
Overall dimension (mm) | 1200*1700 | 1400*1800 | 1800*2100 | 1900*2100 | 2200*2400 | 2250*2600 | 2400*2800 | 2500*2950 |
Weight(kg) | 500 | 800 | 1200 | 1500 | 2000 | 2500 | 2800 | 3000 |
