Help CenterCH Series Horizontal Mixer
Related Products
Specifications
CH Series Horizontal MixerWhole Stainless Steel
Used for powder or paste material
S Type agitating paddle
Meet GMP
We can supply a complete set according to the uses' requirments.
Specifications
CH Series Horizontal Mixer
Whole Stainless Steel
Used for powder or paste material
S Type agitating paddle
Meet GMP

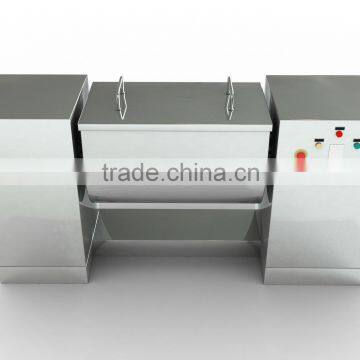

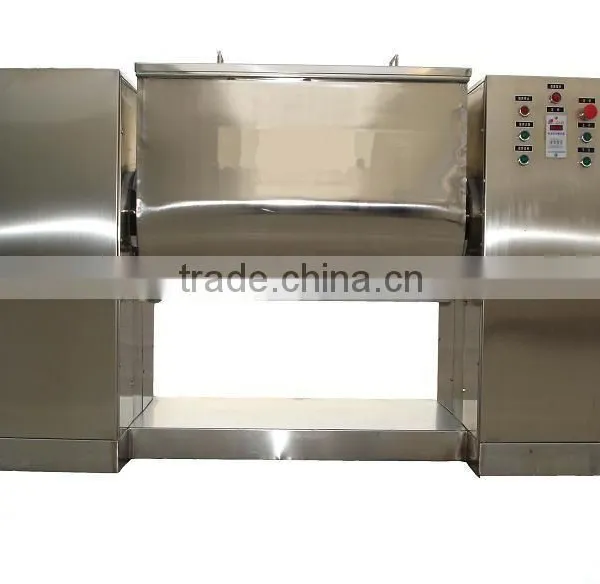

CH Series Horizontal Mixer
Main Application :
As a whole stainless steel horizontal tank type mixer, this machine is widely used for mixing of powdery or paste material in pharmaceutical chemical and foodstuff industries.
Working Principle :
S type agitating paddle is rotated, through mechanical driving, which pushes the material turn repeatedly and mix uniformly, operate with electrical control, it can set mixing time to make automatic stop and electric discharge upon expiration, thus improving the mix quality of each batch of material and reaching the high homegeneous mixing.
Technical Parameters :
Model |
Barrel |
Max loading |
Max loading |
Speed of paddle |
Turning |
Stir |
Discharging |
Overall |
Weight |
CH-30 |
20L |
20L |
20kg |
24r/min |
<105° |
0.75kw |
0.12kw |
1065*380* |
150kg |
CH-50 |
30L |
30L |
30kg |
24r/min |
<105° |
1.5kw |
0.18kw |
1265*430* |
200kg |
CH-100 |
60L |
60L |
60kg |
24r/min |
<105° |
2.2kw |
0.55kw |
1580*500* |
300kg |
CH-150 |
90L |
90L |
90kg |
24r/min |
<105° |
3kw |
0.75kw |
1685*600* |
650kg |
CH-200 |
140L |
140L |
140kg |
24r/min |
<105° |
4kw |
0.75kw |
1850*600* |
720kg |
CH-300 |
180L |
180L |
180kg |
24r/min |
<105° |
5.5kw |
1.1kw |
2160*700* |
750kg |
CH-400 |
250L |
250L |
250kg |
24r/min |
<105° |
7.5kw |
1.5kw |
2280*700* |
780kg |
CH-500 |
300L |
300L |
300kg |
24r/min |
<105° |
7.5kw |
1.5kw |
2450*700* |
820kg |
CH-600 |
380L |
380L |
380kg |
24r/min |
<105° |
11kw |
2.2kw |
2500*900* |
850kg |
