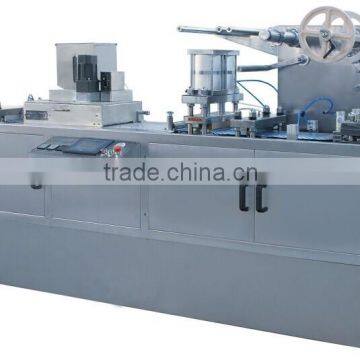

DPB-250 Flat Plate Automatic Blister Packing Machine

Specifications

1. Main driving unit;
2. Suitable AL-PL, AL-AL;
3. Smooth running;
4. Meet cGMP;
5. Automatically controlled by PLC;





DPB-250 Flat Plate Automatic Blister Packing Machine





Suitable for ampoule, vial, oral liquid and other small round automatic printing ,tray forming and feeding in tray.



Product Specify

This machine is an improved product innovated by our company that incorporates pneumatic-photo-electro-mechanic, controlled by PLC and man-machine interface operation. It meets packing requirement of small round bottle as ampoule for automatic printing, tray forming, feeding and cutting. It is featured by compact construction and convenient operation.



Feature

1.      Automatic production line of up and lower heating, positive press forming (tray forming), printing, automatic feeding(feed in tray) and cutting.

2.      Equipped with mechanism checking device, eject empty or lack packing tray automatically.

3.      Blister forming, heat-sealing, lot number embossing, avulsion line impressing and cutting ect. all adopt gear mandrel orientation, each can move freely in the mandrel when rotating the hand wheel, and the machine equipped with a staff gauge and tightening nuts for calibration and orientation.

4.      It can line with labeling machine in front and cartoning in back part, carry out the shole automatic production line.

5.      Main transmission part adopts parallel axis and bevel wheel speed reducer. Forming, heat-sealing and impressing moulds adopt bolt orientation which leads to precise orientation, easy to change moulds and material saving.



Main Technical Parameters

Cutting Frequency (Times/min)	10-30
Production Capacity (pcs/h)	12000-30000
Max Shaping Areas and Depth (mm)	240×140×26 (Standard 240×140×14)
Travel Range (mm)	40-150(can be lengthened to 200mm according to the user's requirements)
Standard Plate (mm)	80×57 (Can be manufactured as user's requirements)
Air Pressure (Mpa)	0.4-0.6
Air Supply	≥0.35m3/min
Total Power	380V/220V  50Hz  6.2kw
Main Motor Power (kw)	1.5
PVC Rigid Sheet (mm)	0.25-0.5×250
PTP Aluminum Foil (mm)	0.02-0.035×250
Dialysis Paper (mm)	50-100g×2500
Mould Cooling	Tap Water or Circulating Water
Overall Dimensions (mm)	3000×750×1600(L×W×H)
Weight (kg)	1600
