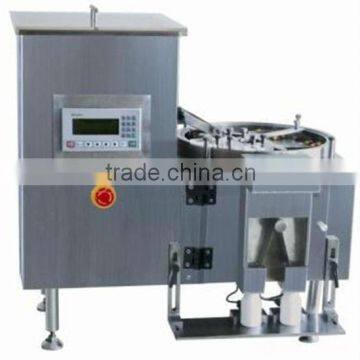

PAD Semi-automatic Electronic Tablet Capsule Counting Machine

The machine counts and fills medicine automatically but bottles should be positioned on manual. The machine adopts CCD sensitive technology and PLC controls to ensure high resolution, fast response speed and accurate counting. If the kind or filling quantity of medicine is changed, you only need to do simple setup on the touch screen. It is easy to clean and maintain due to its compact structure. Besides, it is low noise and power saving. The machine uses touch screen to realize human-machine conversation. It runs steadily and reliably and stops counting automatically once lack of medicine or no bottle under the funnel occurs. Materials in contact with medicament conform to requirements of GMP. It is suitable for counting and filling a small batch of medicine in pharmaceutical, food and chemical industries and medical units.

Main technical data:

Size of medicament: Tablet Diameter 5-12mm

                                     Capsule 00#-5#

Size of bottles: 20-300ml

Output: 800-1000 pcs/min

Power supply: AC220V 50Hz 0.35kW

Dimensions: 900*600*650mm
