Help CenterElectronic Tablet/Capsule Counting Machine
Related Products
Specifications
Adopts advanced vibration and multi-channel feeder, computer control,dynamic scan counting, transfer the bottle automatic

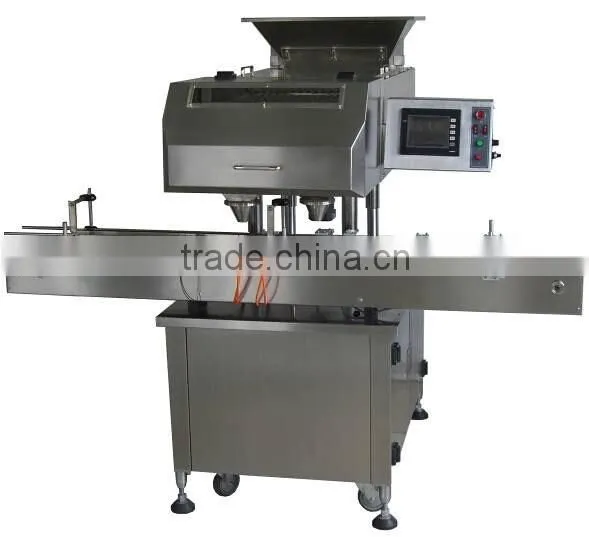

Electronic Tablet/Capsule Counting Machine
General Description:
1. Series Electronic Tablet/Capsule Counting machine is specialized for counting the products of medicine, health care, food, agricultural chemicals, chemical engineering and so on. For example: tablets, coated tablets, soft/hard capsules. The machine can be used alone as well as with other machines produced by our company to form a complete producing line.
2. Series Electronic Tablet/Capsule Counter is composed of machine box, three-layer vibrator mechanism, photoelectric counting system, cylinder and electromagnetic valve system, controlling box, conveyor, sensors and so on. Users are able to control the whole working process of the machine through user interface. High speed PLC system controls the whole process including counting, filling and monitoring. The machine counts precisely, quickly on both common capsules and transparent ones (of weird shapes).
3. The basic models included in Series Electronic Tablet/Capsule Counter are ITC12, GS16 and ITC24. They are used for different requirements for different counting capacity needed.
Major Technical Parameters:
Model |
ITC 12 |
GS 16 |
ITC 24 |
|
Number Of Slots |
12 |
16 |
24 |
|
Capacity (per min) |
2,000-4,000 |
3,000-6,000 |
5,000-8,000 |
|
Counting Range |
20-999 |
|||
Tablet/Capsule Size |
Tablet/pill: d<40mm |
|||
Vessel Diameter |
Φ35-Φ 85 mm |
|||
accurate |
Error<0.1% |
Error<0.1% |
Error<0.1% |
|
Power Supply |
AC 220V 50-60 Hz 500W |
|||
Power Consumption |
500W |
500W |
500W |
|
Dimension (L×W×H) |
1800×1450×1750mm
|
1600×1550×1750mm
|
||
