Help CenterDPB-140 Flat Plate Automatic Blister Packing Machine
Related Products
Specifications
Main transmission part adopts parallel axis and bevel wheel speed reducer, with novel structure, stable running, long longevi

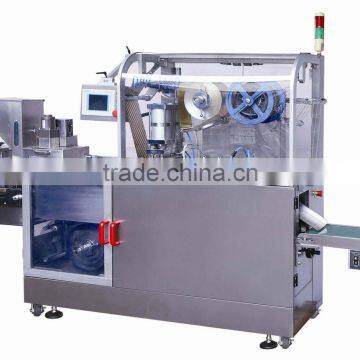

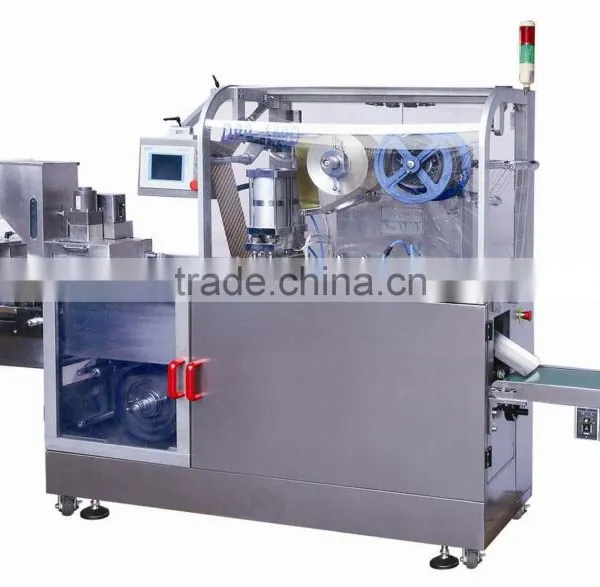

DPB-140 Flat Plate Automatic Blister Packing Machine
·Eye marking sealing device with sensor trace can be added for option.
·Plexiglas Covercan be added for option.
Product Specify
This machine is the latest and high automation product designed for middle and small sized pharmacy factory, healthcare factory and preparation-room of hospital, especially for those who need small batches product but many kinds. The machine is adopted with PLC, frequency converter and touch screen operation. It can automatically finish the processed of feeding, forming, heat-sealing, pressing, batch number printing, punching and so on. It is the ideal packing equipment with convenience operation, full purpose function. The product passed the provincial science and technology appraisal.
It is suitable for capsule, tablet, honey pill, candy, liquid (ointment), syringe as well as irregular shape Al-plastic or paper-plastic packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc.
Features:
1. Main transmission part adopts parallel axis and bevel wheel speed reducer, with novel structure, stable running, long longevity and low noise.
2. Spare parts as heat-sealing station fixing, forming, impressing and cutting etc can move freely to adjust the distance and it is easy to change moulds.
3. With manipulator towing and adjustable travel range, it can be suited for blister packing of various sizes.
4. Flat plate structure can pack special shape products, such as: elliptic shape, square shape, triangle shape, liquid, paste and syringe etc.
Main Technical Parameters:
Cutting Frequency (Times/min) | 6-50 |
Production Capacity (pcs/h) | 20000-110000 |
Max. Forming Area And Depth (mm) | 130×130×26 (Standard Depth 14mm) |
Travel Range (mm) | 40-140(Can be lengthened to 160mm according to user's requirements) |
Standard Plate (mm) | 80×57(Can be manufactured as user's requirements) |
Air Pressure (Mpa) | 0.4-0.6 |
Air Supply | ≥0.2m3/min |
Total Power | 380V/220V 50Hz 3.6KW |
Main Motor Power (KW) | 0.75 |
PVC Hard Pieces (mm) | 0.15-0.5×140 |
PTP Aluminum Foil (mm) | 0.02-0.035×140 |
Dialysis Paper (mm) | 50-100g×140 |
Mould Cooling | Tap Water Or Circulating Water |
Overall Dimensions (mm) | 2300×560×1410(L×W×H) |
Weight (kg) | 750 |
