Help CenterHDZ-100 Horizontal Automatic Cartoning Machine
Related Products
-
AUTOMATIC POUCH PACKING MachineUS$ 500 - 5,000MOQ: 1 Set -
Electronic Tablet/Capsule Counting MachineNegotiableMOQ: 1 Set
-
ZH Series Automatic Cartoning MachineNegotiableMOQ: 1 Set
-
DPB-80 Flat Plate Automatic Blister Packing MachineNegotiableMOQ: 1 Set
-
Intelligence Packaging MachineNegotiableMOQ: 1 Set

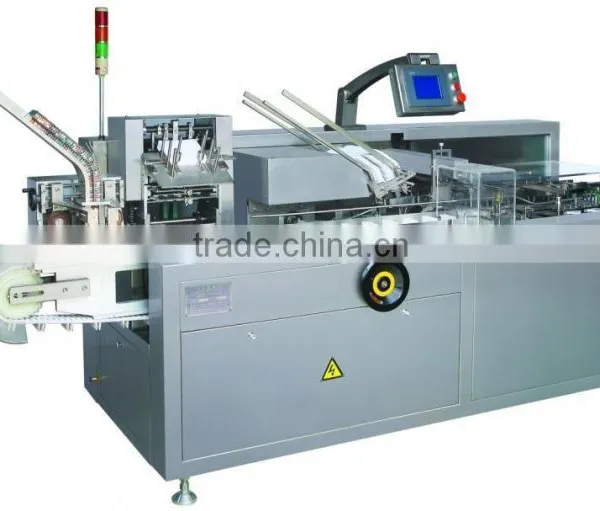

HDZ-100 Horizontal Automatic Cartoning Machine is a light, electricity, gas, machine integration, high-tech products. For blister forming capsules, tablets, take-away aluminum-plastic blister packaging boards and similar articles of automatic Cartoning. Course of their work for the drug board or items to send (once one accounts for multi-board panel adjustable); drug manual transmission (which can be 1-4 fold automatic folding set stack); carton and send automatic distraction, the drug board associated folded into cartons at the same time, within specification; and complete the auto-play lot, sealed at both ends of the tongue of paper packaging and other complicated process. Overall machine used in all high-quality stainless steel casing, Face by plexiglass windows and doors closed in strict accordance with the pharmaceutical industry "GMP" standard trekking innovative design. Transmission part of the design of the overload protection function, and set the emergency stop device, control system uses the human-computer interface screen, and to protect the personal safety of the operator.
1, No product does not suck instructions, no manual not to breathe carton;
2, No product or product supply is not in place, the machine idling without having to push products, when the product will automatically move to restore the supply line, the product down into the box is not in place automatically;
3, No carton automatically shut down, continuous, non-manual automatic shutdown;
4, To facilitate the switch to different product specifications;
5, The main drive with overload protection device;
6, Automatically displays the speed and counting Cartoning
Technical Parameters:
Project |
Main technical parameters |
|
Encasing speed |
30-100/min |
|
Box |
Quality requirement |
250-350g/m2 |
Dimension range(L×W×H) |
(65-180)mm×(30-85)mm×(15-50)mm |
|
Leaflet |
Quality requirement |
60-70g/m2 |
Unfolded leaflet specification |
(80-250)mm×(90-170)mm |
|
Folded leaflet specification |
(90-170)mm×(25-40)mm |
|
Compressed air |
Working pressure |
≥0.6mpa |
Air consumption |
120-160L/min |
|
Power supply |
220V 50HZ |
|
Motor power |
0.75kw |
|
Machine dimension(L×W×H) |
3100 mm×1100 mm×1800 mm |
|
Machine weight |
1400kg |
|
