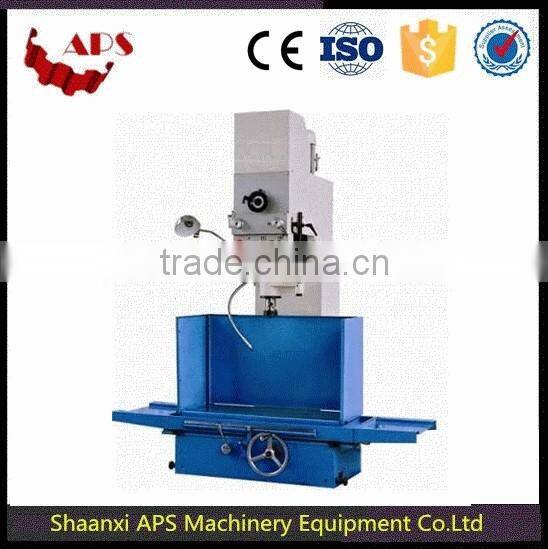

NEW,CE,ISO Vertical Honing Machine 2M2217A

Shaanxi APS Machinery Equipment Co., Ltd.
NEW,CE,ISO Vertical Honing Machine 2M2217A thumbnail-1
NEW,CE,ISO Vertical Honing Machine 2M2217A photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
APS
Model Number:
2M2217A
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name APS
Model Number 2M2217A
Voltage 220V/380V/415v
Certification ISO9001/CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Vertical Honing Machine 2M2217A







Charicteristics

 The Machine is mainly used for horing holes of cylinder body and sleeve for engines and other accurate



Feature

The Machine is mainly used for horing holes of cylinder body and sleeve for engines and other accurate holes.

Advanccd-design and steady function.

Stepless of spindle turning feeding.

The rotation of the main shaft adopts gear transmission, feeding by Continuously Variable;


NEW,CE,ISO Vertical Honing Machine 2M2217A



Specifications

Honing diameter range

φ40-φ170mm

max.honing depth

320mm

Telescopic length of spindle connecting rod

120mm

Spindle speeds(four steps)

130,180,240,365rev/mm

Spindle alternating motion speed(stepness)

3-18m /min

Max.spindle travel

300mm

Distance from spindle axis to column vertical plane

300mm

Dimensions of the surface

400x 1000mm

Table longitudinal travel

800mm

Machining
  accuracy

Dimension
  accuracy

0.003mm

Roundness

0.005mm

roughness

Ra0.4

Overall Dimensions(LxWxH)

1900x1176x2169mm3

N.W./G.W.

2000kg / 2500kg

Paking Dimensions ( LxWxH )

1440x1770x2170mm3



Standard accessory:



1

MT 62 honing head

(honing Φ62-Φ82 hole)

2

tool case




Optional accessory:

1

MT110 honing head(honing Φ110-Φ170 hole)
(Need special order)

2

MT82 honing head(honing Φ82-Φ110hole)

3

MT40 honing head(honing Φ40-Φ62 hole)
