Features

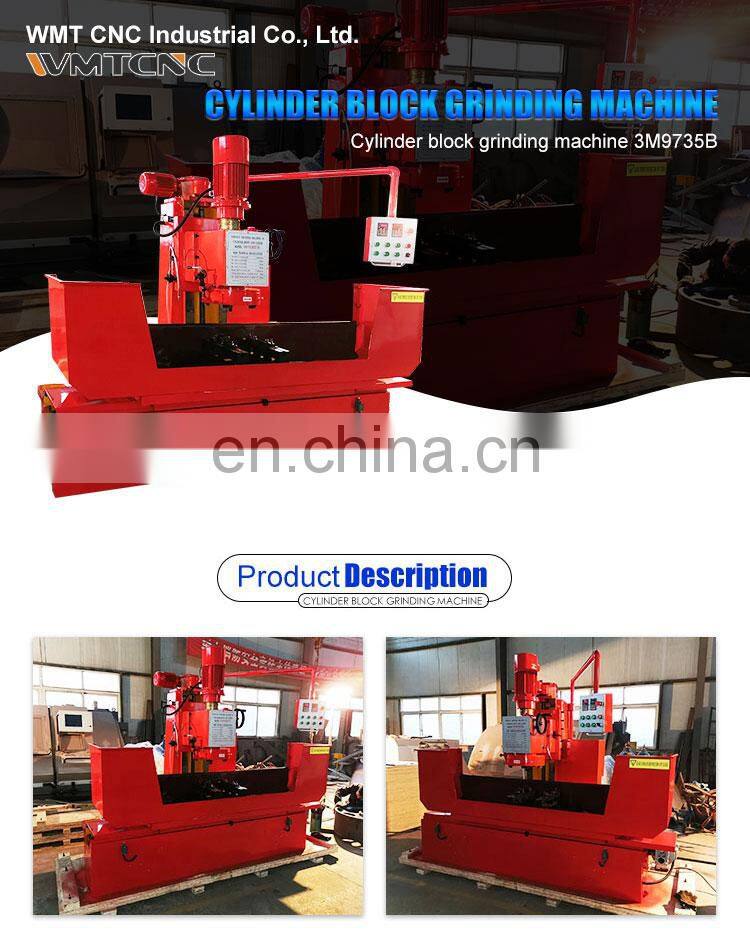

Cylinder block and head grinding machine 3M9735BX150.
It suits for grinding and milling all kinds of cylinder body and cover surface.
The spindle adopts high precision bearing the motor is fixed on the back of the machine which guarantee the spindle precision with
high speed.
It adopts the plastic guide way running stable and flexible.
The feeding of work table adopts stepless speed changes devices, suits for processing all kinds of materials of work piece.
It suits for grinding and milling all kinds of cylinder body and cover surface.
The spindle adopts high precision bearing the motor is fixed on the back of the machine which guarantee the spindle precision with
high speed.
It adopts the plastic guide way running stable and flexible.
The feeding of work table adopts stepless speed changes devices, suits for processing all kinds of materials of work piece.
Specification | 3M9735Bx130 | 3M9735Bx150 |
Working table size | 1300 x500mm | 1500x500mm |
Max working length | 1300 mm | 1500 mm |
Max. width of grinding | 350 mm | 350 mm |
Max height of grinding | 800 mm | 800 mm |
The vertical moving distance of grinding head | 60 mm | 60 mm |
The vertical moving distance of spindle box | 800 mm | 800 mm |
Spindle speed | 1400/700 r/min | 1400/700 r/min |
Transverse moving speed of working table | 40-900 mm/min | 40-900 mm/min |
Overall dimensions(LxWxH) | 2800x1050x1700 mm | 3050x1050x1700 mm |
Packing dimensions(LxWxH) | 3100x1200x1850 mm | 3350x1200x1850 mm |
N.W. / G.W. | 2800 / 3100 kg | 3000 / 3300 kg |
Standard accessories
Parallel support, Grinding disk, Grinding wheel dresser, Cooling box, Grinding tiles &
milling cutters, Wheel balance stand arbor.
milling cutters, Wheel balance stand arbor.
