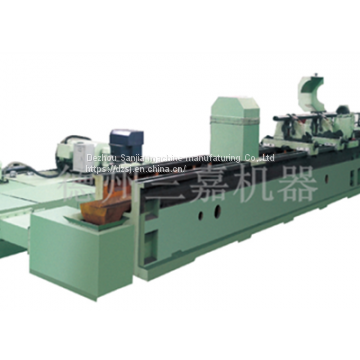

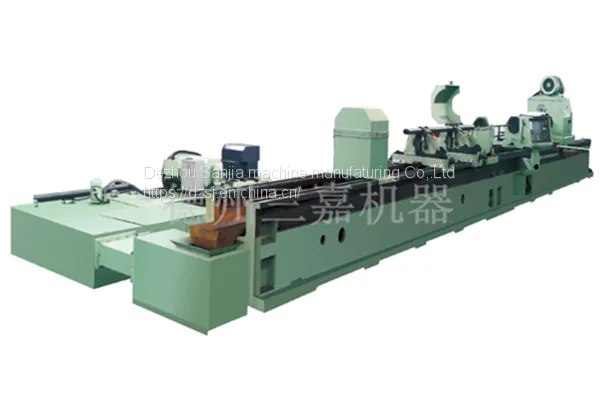

2MSK2125 /2MSK2135 CNC deep hole powerful honing machine is suitable for honing and polishing of cylindrical deep hole workpieces, such as various precision hydraulic fittings such as hydraulic cylinders and cylinders Honing and polishing workpieces with stepped holes. The processing aperture precision can reach IT8-IT9 level or above, the surface roughness can reach Ra0.2-0.4μm, and local honing can be used to correct the taper, ellipticity and local aperture error of the processed workpiece. For some cold drawn steel pipes, strong honing can be performed directly. 2MSK2125 CNC deep hole powerful honing machine is an ideal equipment with high precision and high efficiency.
The CNC deep hole powerful honing machine is equipped with KND CNC system, AC servo motor, and the grinding rod box adopts stepless speed regulation. The chain wheel and chain are used to realize the reciprocating motion of the honing head, which can precisely control the honing position. At the same time, the double linear guide rail has a higher service life and higher precision. The honing head adopts hydraulic constant pressure expansion, and the honing force of the sand bar is stable to ensure the roundness and cylindricity of the workpiece. The honing pressure can be adjusted as needed, and high and low pressure control is set, and coarse and fine honing conversion can be easily achieved on the console. Other configurations of the machine tool are as follows: hydraulic valves, automatic lubrication stations, etc. use famous brand products.
In addition, the CNC system, linear guide, hydraulic valve and other configurations of this CNC deep hole powerful honing machine can be selected or specified according to user requirements.
2MSK2125 |
2MSK2135 |
|
Range of honing dia |
35-250mm |
60-350mm |
Max honing depth |
1-12m |
1-12m |
Range of workpiece clamped dia |
50-300mm |
75-400mm |
Spindle center height |
350mm |
350mm |
Speed range of spindle |
25-250r/min (stepless in two gears) |
25-250r/min (stepless in two gears) |
Range of pallet round trip speed |
4-18m/min |
4-18m/min |
Motor power of honing box |
11kw(converter motor) |
11kw(converter motor) |
Motor power of around trip |
5.5kw(servo motor) |
5.5kw(servo motor) |
Flow of cooling pump |
100L/min |
100L/min |
Max pressure of honing head expanding system |
4MPa |
4MPa |
CNC |
Beijing KND (standard) SIEMENS 802 series, FANUC, etc. are optional, and special machines can be made according to the workpiece conditions |
|
