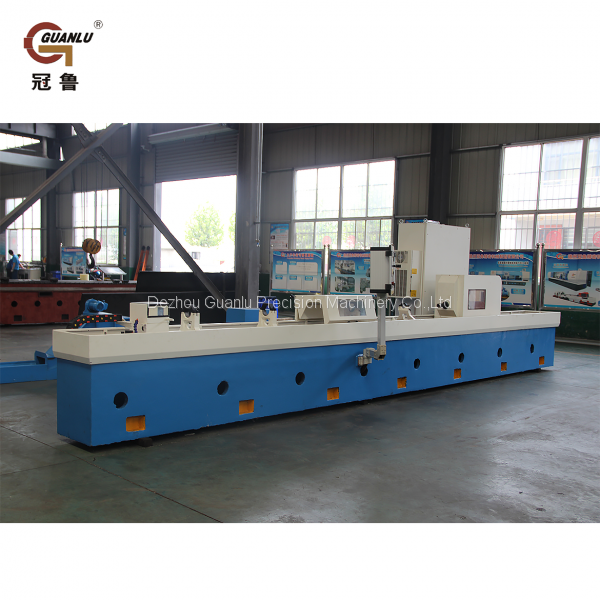

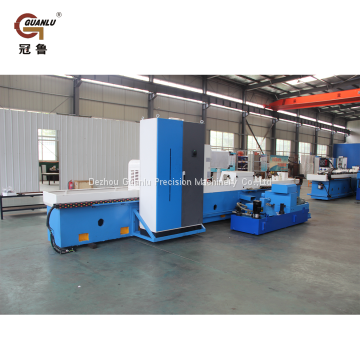

Deep Hole Honing Machine for Hydraulic Cylinder

Name: Deep Hole Honing Machine for Hydraulic Cylinder
Brand: Guanlu
SKU: 160782769
Availability: InStock

US$ 40000 - 50000 MOQ: 1 Set

Key Specifications

Brand Name:

Guanlu

Place of Origin:

China

Model Number:

TMK20125x2500mm

Dezhou Guanlu Precision Machinery Co.,Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

4 days

Brand Name Guanlu

Place of Origin China

Model Number TMK20125x2500mm

After-sales Service Provided Engineers available to service machinery overseas

Warranty 1 year

Weight Machine actual weight

Dimension(L*W*H) Machine actual size

Voltage 380v or Follow customer's request

Certification CE ISO

Condition New

Power(W) 30 KW

CNC or Not CNC

Horizontal Honing machine

Product Description

Machine brief:

The bed is made of high quality cast iron, which has good precision retention and stability.
The guide rail for the workpiece and tool movement is square rolling linear guide, which has good accuracy and rigidity.
The servo spindle motor is driven by the speed reducer to drive the main shaft to rotate, and the spindle can realize stepless speed regulation.
The servo feed motor drives the gear rack structure through the reducer, so that the cutter can advance or retreat according to the set speed.
Servo motor drives mechanical mechanism to control the change of honing head diameter.

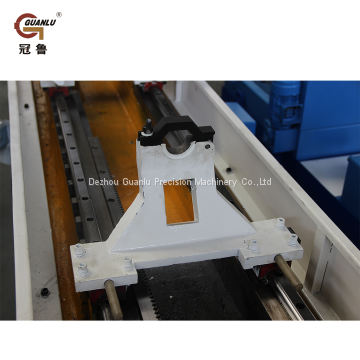

The workpiece is fixed on the workpiece bracket by the positioning sleeve, and the axial position of the workpiece bracket can be adjusted manually.

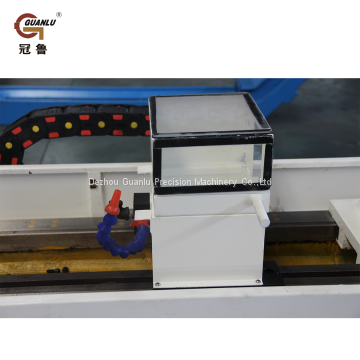

The machine is equipped with simple safety guard.

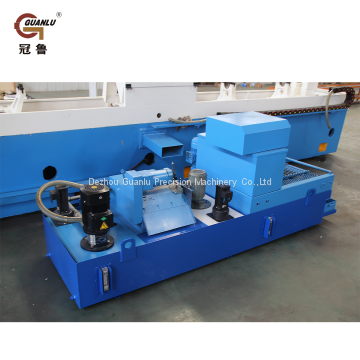

Cutting oil supply system: It is equipped with magnetic and paper bag filter.
The machine adopts PLC control.

Machine Mainly Parameters:

Specification			Parameters	Notes
Working capacity	Machining diameter range		Φ7~Φ25mm
	Max.machining depth		2500mm
	Max.length of workpiece		2500mm
	Workpiece outer diameter range		Φ25~Φ70mm
	Max. Draw ratio		65:1
Machine performance	Z axis	Infeed speed range	1~15m/min	Stepless
		Infeed motor power	2.8KW
	Honing rod box	Speed range	50~500r/min	Stepless
		Motor power	1.1KW	Servo spindle motor
Cooling system	Max.flow		38L/min
	Oil tank capacity (roughly)		300L

Machine configuration list:

No.	Name	Manufacturer
1	Rack	Taiwan
2	Servo infeed motor	Domestic brand
3	Spindle bearing	NSK
4	Mainly electric components	Siemens or Schneider
5	Main motor	Beijing CTB
6	Linear guide rail	Taiwan TBI or coequality brand products
7	Reducer	Taiwan
