Valve Guide and Seat Boring Machine VT60
GUIDE AND SEAT MACHINE
Puts your shop ahead in the fast growing headwork business with the most versatile and accurate machine on the market.
Built to take on everything from subcompacts to big diesels.
Big. Tough and Fast! You can set up and run any head up to 48” (1220 mm) long in record time. Up to 54” (1370 mm) with special fixture. And, it turns out the quality work you're proud to put your name on:
1. Installation of Valve Guide Inserts
2. Cutting of Valve Insert Pockets - Aluminum or Cast Iron
3. Simultaneous Multi—Angle Cutting of Valve Seats
4. Drilling and Tapping for Threaded Studs or Removal of Broken Exhaust Studs
5. Bronze Guide Liner Installation and Reaming
TECHNICAL FEATURES:
Description |
Technical Parameters |
Working Table Dimensions (L * W) |
1245 * 410 mm |
Fixture Body Dimensions (L * W * H) |
1245 * 232 * 228 mm |
Max. Length of Cylinder Head Clamped |
1220 mm |
Max. Width of Cylinder Head Clamped |
400 mm |
Max. Travel of Machine Spindle |
175 mm |
Swing Angle of Spindle |
-12° ~ 12° |
Rotating Angle of Cylinder Head Fixture |
0 ~ 360° |
Conical Hole on Spindle |
30° |
Spindle Speed (Infinitely Variable Speeds) |
50 ~ 380 rpm |
Main Motor (Converter Motor) |
Speed 3000 rpm(forward and reverse) 0.75 kW fundamental frequency 50 or 60 Hz |
Sharpener Motor |
0.18 kW |
Sharpener Motor Speed |
2800 rpm |

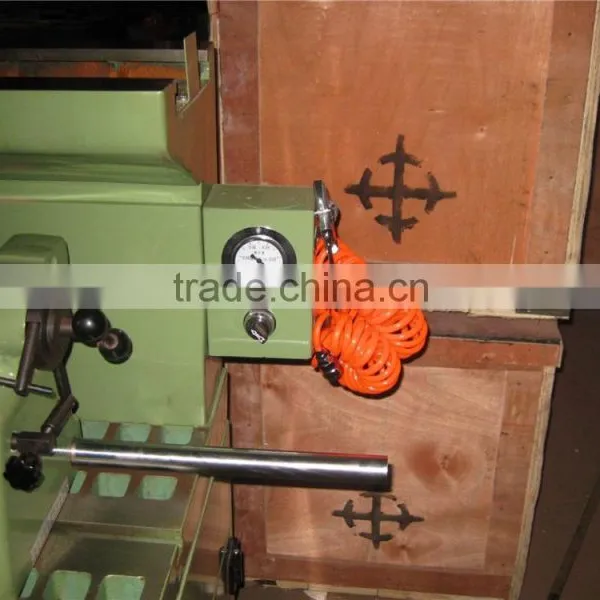

Vacuum Generator |
0.6 ≤ p ≤ 0.8 Mpa |
Working Pressure |
0.6 ≤ p ≤ 0.8 Mpa |
Machine Weight (Net) |
700 kg |
Machine Weight (Gross) |
950 kg |
Machine External Dimensions (L * W * H) |
184 * 75 * 195 cm |
Machine Packing Dimensions (L * W * H) |
184 * 75 * 195 cm |
Processing:

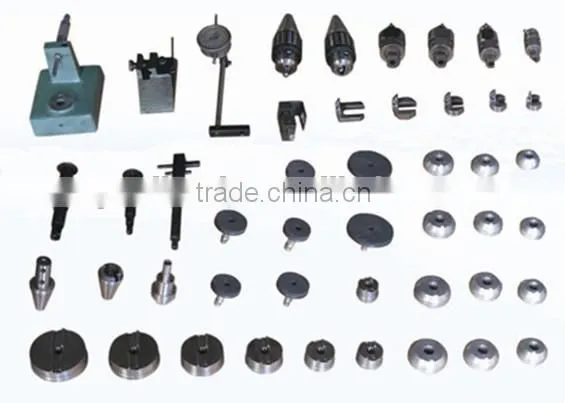

Accesory:
Universal Fixture,Sharpener,Vacuum Tester,Accessory Bracket,Mechanical Level gauge,Retainer Depth Indicator,Cutter Assembly,Cutter Alignment Gauge,Spindle Driving Coupler,Cutter Spanner,Guiding Rod Spanner,Guiding rod,Jack,Footing,Cutter
