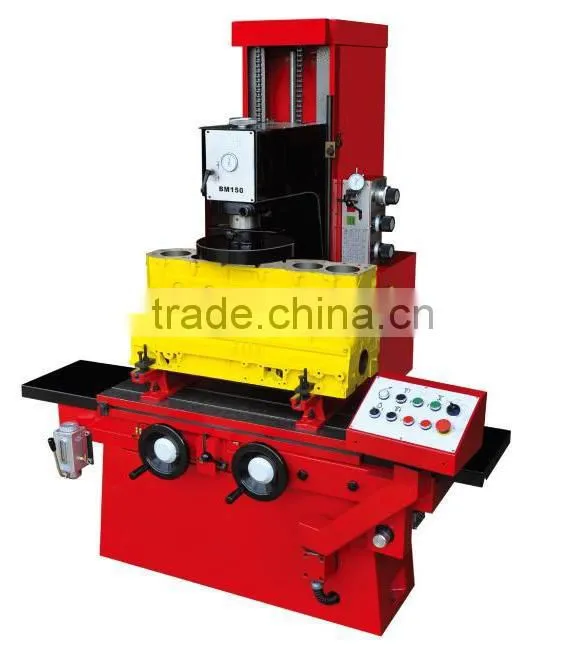

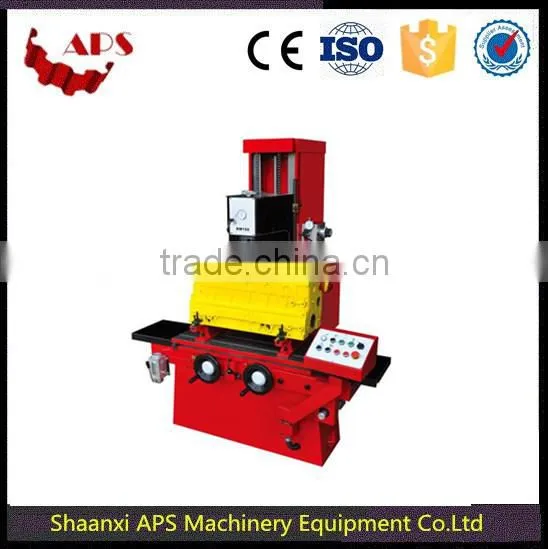

Cylinder boring machine BM150
This machine is mainly used for repair small-middle sized engine blocks and head;
Design by Human Engineering, easy to operation;
6 shift speed change from gear transmission box; avoid the torque lose;
Cutter pouch spindle and the spindle holder, provide high accurate and efficiency.
Centralized lubricate system ensure the long life for the machine use and easy for maintenance;
multi-choice of accessories, boring, milling, drilling and reaming are all available. As well as motor-cycle blocks.
Model | BM150 |
Boring capacity | Φ31-Φ150 mm |
Max.boring depth | 350 mm |
Max. milling width | 300 mm |
Max. milling area | 300x800 mm |
Max. spindle head travel | 530 mm |
Distance from spindle C/L to column ways | 335 mm |
Useful table surface | 400x1000 mm |
Max. table traverse | 830 mm |
Max. table cross traverse | 60 mm |
Spindle rotation speeds | 105, 210, 280, 390, 550, 780 rpm |
Spindle head work feed speed, per revolution | 0.06, 0.12,0.18 mm |
Spindle head fast feed, up and down, per minute | 1200 mm |
Table work feed speed, per minute | 52,104 mm |
Spindle head work feed and spindle rotation | 1.5 kw / 1.2 kw |
Fast spindle head traverse, up and down | 0.09 kw |
Table traverse | 0.19 kw |
Tool grinder | 0.2 kw |
Overall dimension: | 2570 x 1175 x1920mm |
Packing dimension: | 1710 x 1450 x2200mm |
N.W / G.W | 1700 /1950 kg |
Standard accessory:
universal adaptor for milling cutter head and bush
spindle 52mm ( Φ50-Φ125mm)
spindel 60mm ( Φ60-Φ160mm)
milling cutter head Φ300mm
toolings
toolholder & boring cutters
measuring device
universal cylinder fixture
Optional accessory:
boring spindle 30mm ( Φ31-Φ54mm)
bush with No.3 morse taper
inner micrometer
cutter grinder
motorcylce cylinder fixture
Universal cylinder head fixture
30 degree and 45 degree V-fixture for boring
30 degree and 45 degree V-fixture for boring & milling
