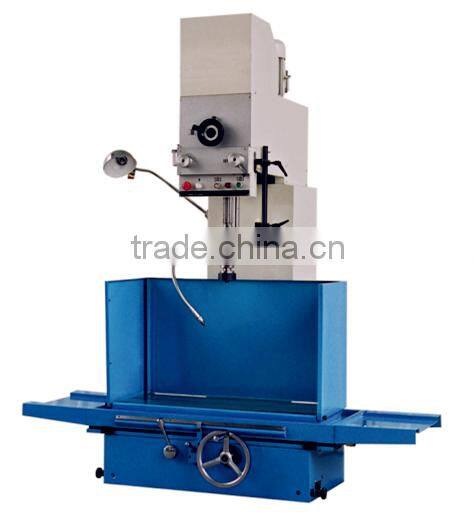

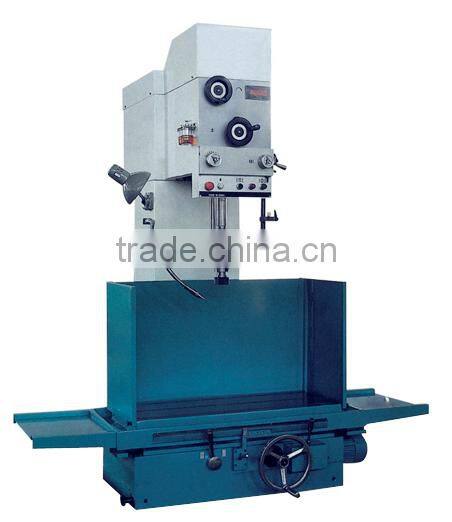

Vertical Honing Machine 2M2217A
Application
The Machine is mainly used for horing holes of cylinder body and sleeve for engines and other accurate
Feature
The Machine is mainly used for horing holes of cylinder body and sleeve for engines and other accurate holes.
Advanccd-design and steady function.
Stepless of spindle turning feeding.
The rotation of the main shaft adopts gear transmission, feeding by Continuously Variable;
Specifications
Honing diameter range | φ40-φ170mm | |
max.honing depth | 320mm | |
Telescopic length of spindle connecting rod | 120mm | |
Spindle speeds(four steps) | 130,180,240,365rev/mm | |
Spindle alternating motion speed(stepness) | 3-18m /min | |
Max.spindle travel | 300mm | |
Distance from spindle axis to column vertical plane | 300mm | |
Dimensions of the surface | 400x 1000mm | |
Table longitudinal travel | 800mm | |
Machining | Dimension | 0.003mm |
Roundness | 0.005mm | |
roughness | Ra0.4 | |
Overall Dimensions(LxWxH) | 1900x1176x2169mm3 | |
N.W./G.W. | 2000kg / 2500kg | |
Paking Dimensions ( LxWxH ) | 1440x1770x2170mm3 | |

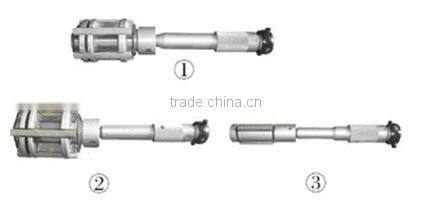

Standard accessory
1 | MT 62 honing head (honing Φ62-Φ82 hole) |
2 | tool case |
1 | MT110 honing head(honing Φ110-Φ170 hole) |
2 | MT82 honing head(honing Φ82-Φ110hole) |
3 | MT40 honing head(honing Φ40-Φ62 hole) |
