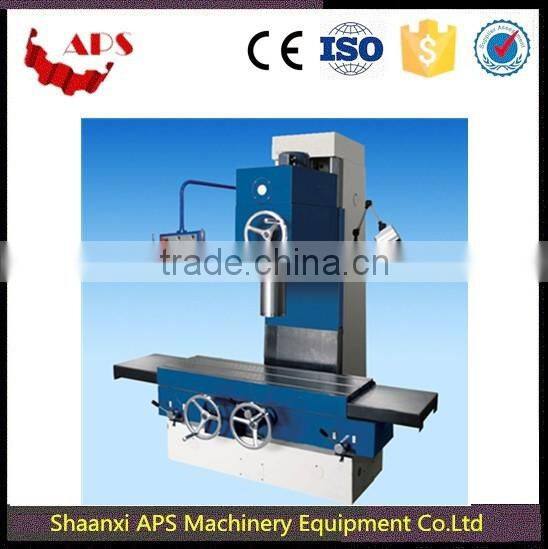

Vertical Fine Boring Machine T170S
Charicteristics
Both rotation and teed of the spindle is realized by frequent and stepless saeed-adjutment , and there is character display on the digital readout. The range of speed-adjustment is wide; it is very convenient to operate. The spindle feed and rapid movement may be converted rapidly by regulation resistance.
The hand wheel controlling the vertical movement of spindle is designed on the carriage to make the operation convenient and easy.
The spindle is designed with fast centering device to improve the working efficiency.
The machine is designed with tool measuring device for the diameter of boring hole to make the
operation convenient and improve the processing operation
The conversation between operator and machine can be realized by the digital readout on the machine, this makes the operation very convenient and easy
Movement of each part of the machine can be controlled by PLC the machine realizes the automatic processing of boring hole and spindle returning as well as the boring parameter input.
Specifications
ITEMS | unit | T170S | |
Max. boring diameter | Mm | φ170 | |
Max. boring depth | Mm | 400 | |
Max. drilling& reaming diameter | Mm | φ30 | |
Spindle speed | r/min | 80-1000 | |
Feeding of the spindle | Mm/min | 14-810 | |
Rapid moving speed of the spindle | Mm/mim | 810 | |
Spindle travel | Mm | 500 | |
Distance between spindle end face and table | Mm | 0-500 | |
Distance between spindle axis and carriage vertical plane | Mm | 330 | |
Max. longitudinal travel of the working table | Mm | 1100 | |
Max. cross travel of the working table | Mm | 80 | |
Worktable size(W*L) | Mm | 400*1250 | |
Quantity of “T” slot | Qua. | 3 | |
Dimensional precision of boring hole |
| H7 | |
Machining precision | Roundness | Mm | 0.005 |
Cylindricity | Mm | 0.01/300 | |
Boring surface roughness | Um | Ra2.5 | |
Main motor power | Kw | 3 | |
Overall dimensions (L*W*H) | Cm | 210*143*201 | |
Packing dimensions(L*W*H) | Cm | 182*177*219 | |
N.W./G.W | kg | 2500/2800 | |
