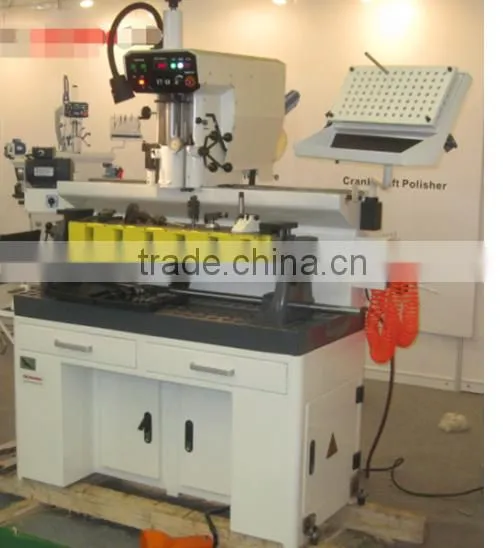

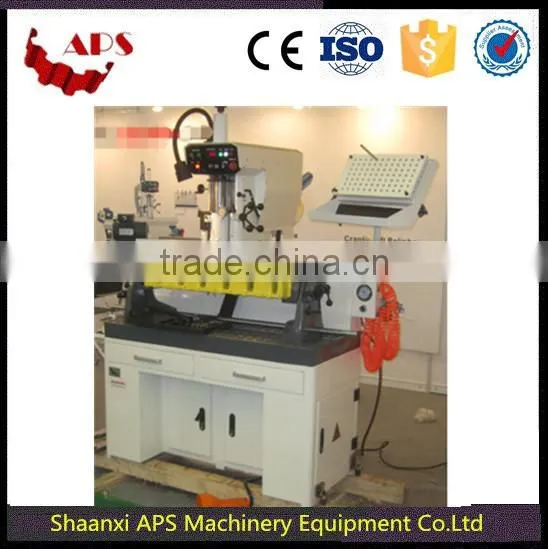

Valve Guide and Seat Boring Machine BV60S

US$ 1,000 - 10,000 MOQ: 5 Sets

Key Specifications

Condition:

New

CNC or Not:

Normal

Production Capacity:

High

Shaanxi APS Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Production Capacity High

Brand Name APS

Model Number BV60S

Voltage 380V/220V/110V

Power(W) 1.1KW

Dimension(L*W*H) 13900mm x1400 mm x900mm

Weight 330kg

Certification ISO9001

After-sales Service Provided Overseas service center available

GUIDE AND SEAT MACHINE

Puts your shop ahead in the fast growing headwork business with the most versatile and accurate machine on the market.

Built to take on everything from subcompacts to big diesels.

1. Installation of Valve Guide Inserts

2. Cutting of Valve Insert Pockets - Aluminum or Cast Iron

3. Simultaneous Multi—Angle Cutting of Valve Seats

4. Drilling and Tapping for Threaded Studs or Removal of Broken Exhaust Studs

5. Bronze Guide Liner Installation and Reaming

Specifications:

Description	Technical Parameters
Working Table Dimensions (L * W)	1245 * 410 mm
Fixture Body Dimensions (L * W * H)	1245 * 232 * 228 mm
Max. Length of Cylinder Head Clamped	1220 mm
Max. Width of Cylinder Head Clamped	400 mm
Max. Travel of Machine Spindle	175 mm
Swing Angle of Spindle	-12° ~ 12°
Rotating Angle of Cylinder Head Fixture	0 ~ 360°
Conical Hole on Spindle	30°
Spindle Speed (Infinitely Variable Speeds)	50 ~ 380 rpm
Main Motor (Converter Motor)	Speed 3000 rpm(forward and reverse) 0.75 kW fundamental frequency 50 or 60 Hz
Sharpener Motor	0.18 kW
Sharpener Motor Speed	2800 rpm
Vacuum Generator	0.6 ≤ p ≤ 0.8 Mpa
Working Pressure	0.6 ≤ p ≤ 0.8 Mpa
Machine Weight (Net)	700 kg
Machine Weight (Gross)	950 kg
Machine External Dimensions (L * W * H)	184 * 75 * 195 cm
Machine Packing Dimensions (L * W * H)	184 * 75 * 195 cm
