Home > Manufacturing & Processing Machinery > Machine Tools > Honing Machine > Vertical Honing Machine M4215 for Cylinder Blocks

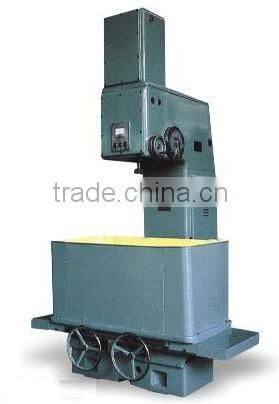

Vertical Honing Machine M4215 for Cylinder Blocks

US$ 1,000 - 5,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Brand Name:

APS

Model Number:

M4215

CNC or Not:

Normal

Contact Supplier Request Quote Chat Now

Shaanxi APS Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name APS

Model Number M4215

CNC or Not Normal

Voltage 380

Weight 2000KG/2500KG

Dimension(L*W*H) 1400*1770*2170

Power(W) 20/30kw(motor Power)

After-sales Service Provided Engineers available to service machinery overseas

Certification ISO9001

Condition New

Vertical Honing Machine M4215

Feature

l
This machine enjoys simple structure, easy operation and high working accuracy. Reciprocation head is hydraulic driven.

l Expansion and contraction of honing head is controlled by the feed handwheel directly. This machine is used for honing of cylinder block bores, cylinder liner bores etc. Hydraulic cylinder bores,precision bores etc. Roundness 0.0025mm and surface finish Ra 0.4 can be btained.

l Bore taper can be corrected by using short stroke.

Specifications

Model	M4215	M4215/1
Honing Diameter	50-150	30-150
Max.Honing depth	400
Spindle speeds (4 setps)	112,160,224,315
Max.spindle travel	370
Telescope displacement length of spindle connecting rod	180
Spindle reciprocation speed	3-18
Distance between the lower and of spindle connecting rod and worktable surface after extending spindle connectiong rod	475-845
Distance between spindle axis to colume	350
Worktable trave longitudinal / Traverse	800/60
Worktable size	480×1100
Worktable height	470
Max. working pressure of hydraulic system	25
Supply flow of coolant pump	22
Total output	4.525
Motor for spindle rotation	2.2
Hydraulic pump motor	2.2
Coolant pump motor	0.125
