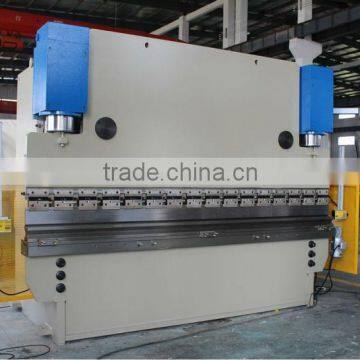

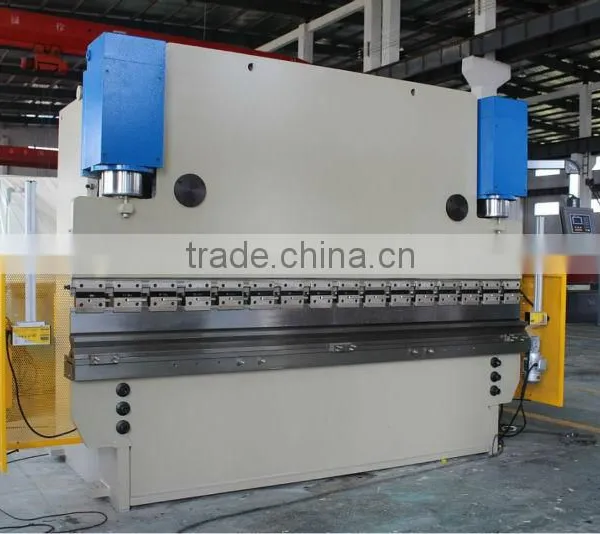

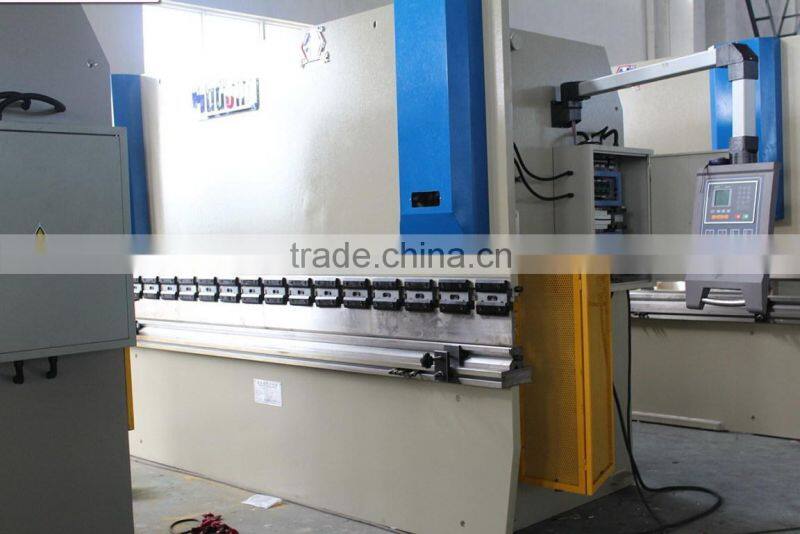

High quality WC67Y series hydraulic plate bending machine

High quality WC67Y series hydraulic plate bending machine

Configurations of  hydraulic plate bending machine , cnc plate bending machine , metal sheet bending machine :

 Motor Dangpeng Zhenjiang, China
2 Electrics  SIEMENS/Schneider Germany brand
3 Oil Cylinder  Wuyang  Maanshan, China
4 Seal ring
DZ Taiwan
5 Gear Pump  Hangfa Shanghai, China
6 Hydraulic system ATOS Italy brand
7 Mechanical Display
/LED Digital Display SICK
E10 Germany
Estun, China
8 Punch and Die Xinming / Lianmeng Maanshan, China
9 Pipe connector EMB Germany
10 Foot Switch Keara South Korea

This machine is high-efficiency and high-precision in bending sheet metal. Using different kinds of upper and lower dies can bend all kinds of work pieces. One slider travel makes a sheet bending and the complicated shape work piece may be achieved through bending many times. When fitted with relevant equipments, it can be used to punch holes.

5) Overall structure

5.1 Using UG (finite element) analysis, through computer aid design, with nice appearance.

5.2 The machine structure is welded with steel plate, with sufficient strength and rigidity. The hydraulic drive prevents the machine from serious overload operation accidents caused by the change of sheet thickness or bad choice of lower die cavity. Additionally, this machine is also featured by the steadiness of work, convenience of operation, and reliable safety.

5.3 The mechanic block is equipped in the oil cylinder to ensure the fixing accuracy when the slider travels to the bottom dead point and so as to assure the consistency of bending angle in bulking production.

5.4 Using German technology to eliminate internal stress.

5.5 Entire frame using striking grit to get rid of rust and spout anticorrosive paint.

6) Working slider structure

6.1 The machine is equipped with hydraulic electric control, freely adjustable slider travels and inching, semi-automatic, automatic operating criterion convenient for module trial and adjustment.

6.2 .Up-move type bending design,pair oil cylinders working simultaneously, balanced operation,convenient,and safety.

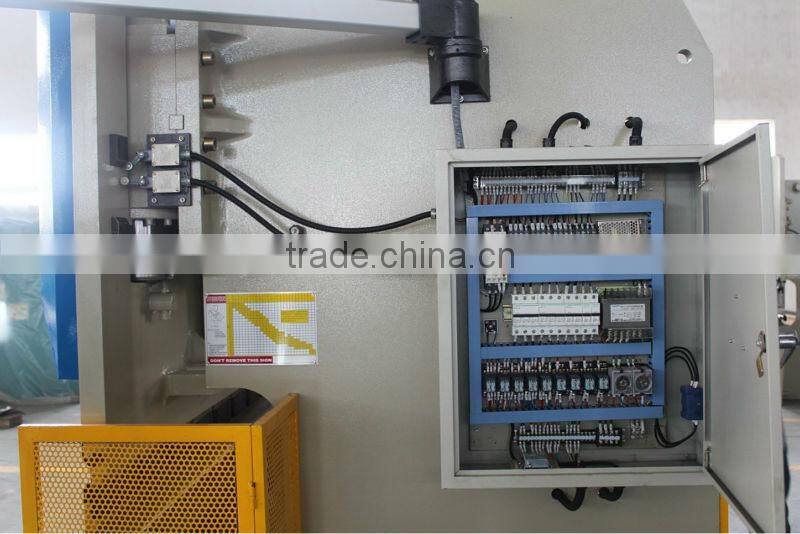

7) Electrical control system

7.1 Electric components and material are accord with international standard, safety and reliable, long life, and strong ant jamming capability.

7.2 Moving footpad attached.

7.3 Choosing high grade famous electrical control components.

7.4 The power of the machine is 3-phase and 4-line AC380V, control loop is AC220V.

7.5 Main power way of motor has short circuit,over load,lack phase protection.

7.6 Operation buttons equipped on machine button stage, electric switch,pilot lamp equipped in electric box.

7.7 Oil pump stop button as the total button of machine, when oil pump power off, whole machine stops working.

7.8 Inching control button and emergency stop button are installed on machine.

8) The synchronization of the slider travel of bending machine is mechanic synchronous unit in simple, stable and reliable structure with synchronous precision required by this machine. And generally, it can be used for long time while don’t need to be repaired frequently.

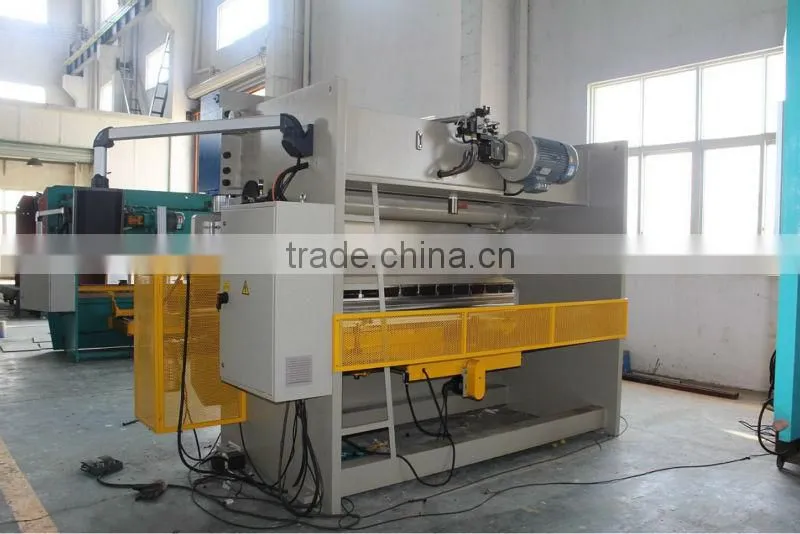

9) Back stopper

The adjustment of back stopper is droving by 0.55KW motor, drove by synchro belt with precision ball bearing lead screw. With high driving precision and exact calculating.

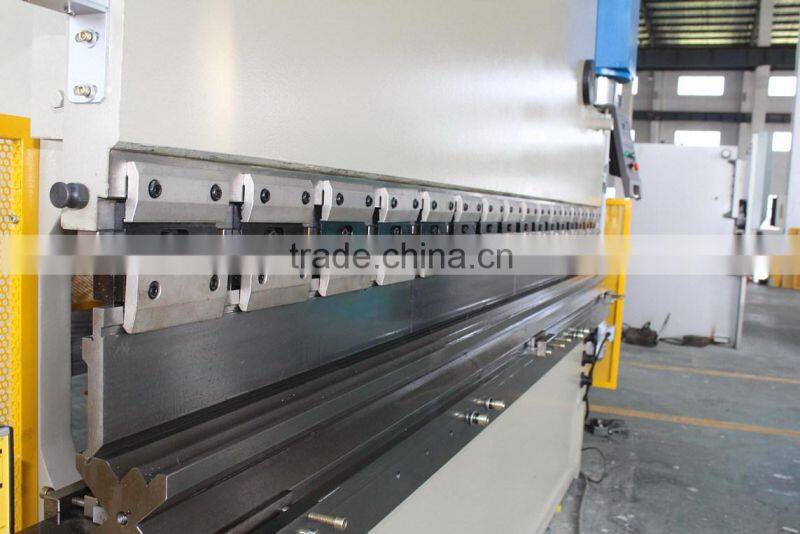

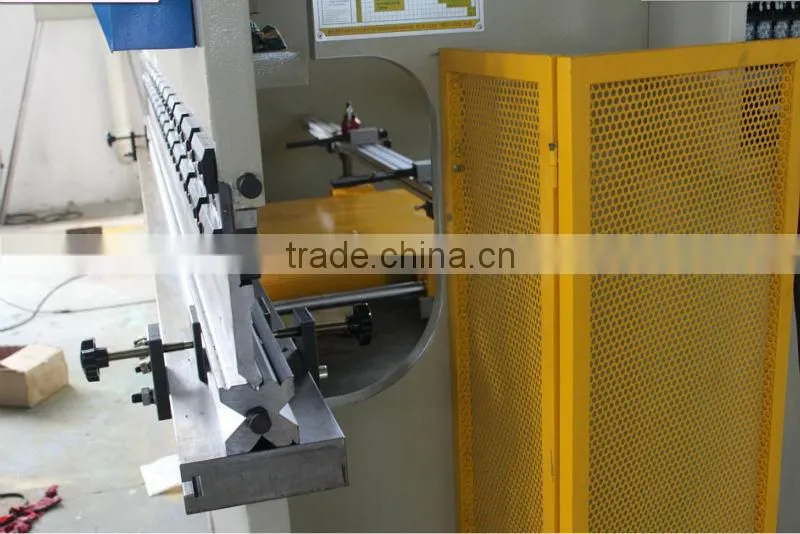

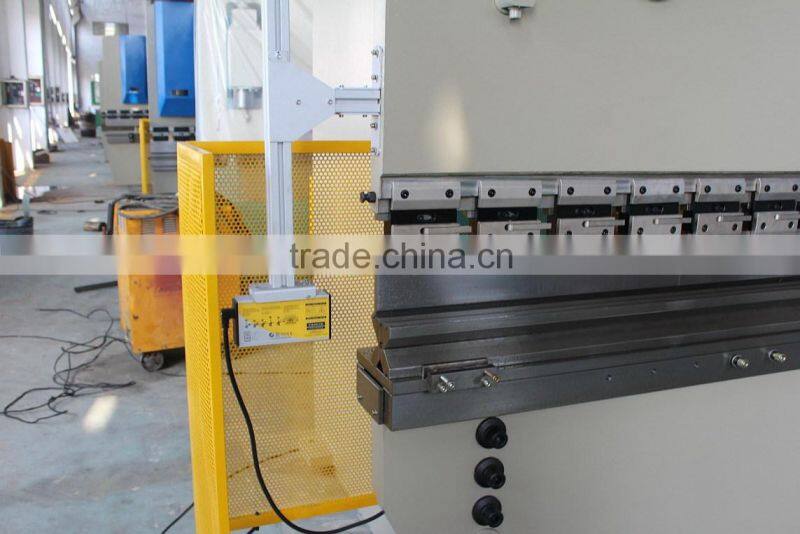

10) Punch and die

1. A set of upper and lower die attached with machine.

2. Normally, the short moulds in sectional form are used to splice for desired length with high precision, fine interchangeability, and convenience for dismantling and installation. In particular, the connecting section to the upper die is equipped with wedge-shape regulating unit, which, as compensation, may raise the work precision of work pieces in full length.

3. The lower dies are processed in different V-gutters to make operators select conveniently, And it is equipped with lower die standing up structure, only need to put lifting roller chain on the slide lifting ear and lower die lifting ear, loose top formwork to raise slider to turn lower die then to select the location surface of V-gutter.

11) Standard accessories of  hydraulic plate bending machine , cnc plate bending machine , metal sheet bending machine

1. Front supporting                         2 sets

2. Footpad switch                          1unit

3. Bottom screw                          4 pieces

4. Adjusting screw                         4 pieces

5. Oil gun                                1 piece

6. English Operation manual                 1 book

Main specifications and technical parameters of  hydraulic plate bending machine , cnc plate bending machine , metal sheet bending machine :

Hudong company provide oriented after-sales service including the oversea engineers trainning available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where are you.

We welcome engineers from your side to learn the technical design and normal maintenance here,this will help your easy in understanding and helpful if you need to be our dealer.
However,donto worry,we have our company own CD/Manual to show you along with the machine.So you can learn this from the existing docments to deepen your knowledge and understanding.
Anyhow there are another way is through internet video face to face for machine teaching, because of the high development in internet,the world has become smaller and you can easy cath us if any assistance needed.
Through all the ways,we will guarantee the service quality and ensure you will be well helped anytime anywhere.
