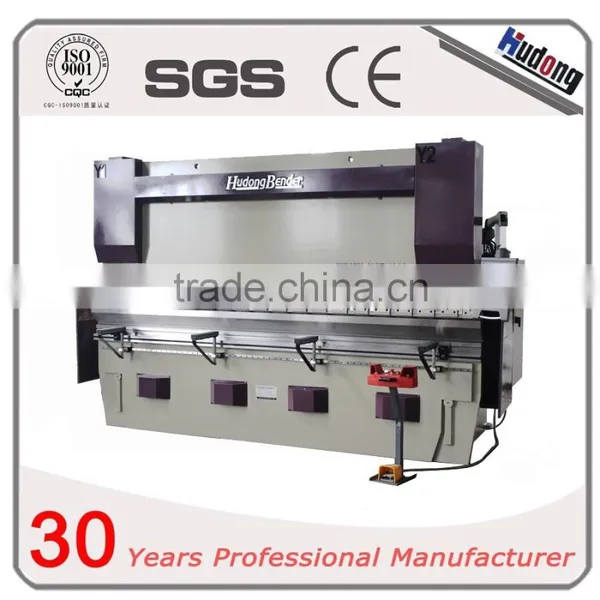

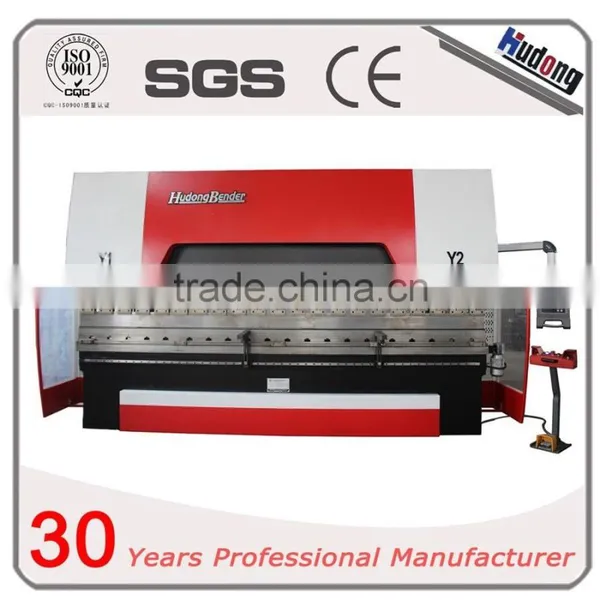

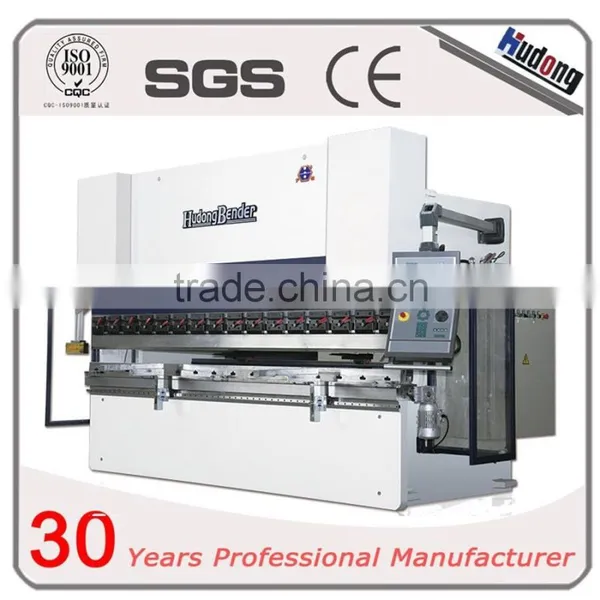

125Tons x 4000mm metal plate CNC bending machine
Introduction
1. On both sides of the main cylinder synchronization use Germany imports of electro-hydraulic servo valve and the Germany grating closed-loop control, accurate feedback, the slider running accurately, thereby bending the accuracy slider repeat positioning accuracy.
2. Adopts steel plate welded structure, with tempering process and vibration aging treatment, Elimination the working stress and eliminating welding stress caused deformation, ensuring the precision of the machine tool maintenance
3. The fuselage uses the split assembled structure, convenient transportation, convenient processing, can ensure the accuracy of the machine tool.
4. Equip with a sectional die, the workpiece can be assembled into a required length, to suit the special processing requirements of workpiece, punch using safety trench structure (European standard), mold structure very convenient to disassembly and assembly.
Standard with DA52S CNC controller system
Bosch Rexroth of Germany's high-performance servo-hydraulic control system synchronization
Germany HEIDENHAIN grating rule simultaneous detection of position feedback encoder with both side
back gauge with high-performance servo motor and ball screw
automatic crowning compensation with DNC system
standard with a set of CNC bending machine mould.
Machine model and number of control 4+1 axis Y1,Y2 means oil cylinders automatic upward and downward movement ;X means the backgauge automatic frontward and backward movement;
R means the backgauge automatic upward and downward movement; Z1,Z2 means two backgauge fingers manual button control leftward and rightward movement; the V means automatic crowning compensator
Technical parameter
Type |
WF67K-125T/4000 |
Nominal Force |
1250 kN |
Worktable length |
4000 mm |
The distance between two side plates |
3200 mm |
Throat depth |
320 mm |
Slider travel |
150 mm |
Max.open height |
460mm |
Approaching speed |
100mm/s |
Return speed |
80mm/s |
Working speed |
7.5mm/s |
Main motor |
11KW |
Controller |
DELEM DA52S |
Control Axes |
4+1 |
Backgauge x axis travel range |
±600mm |
Backgauge x axis travel speed |
300mm/s |
R axis stroke |
±100mm |
R axis speed |
100mm/s |
Z axes stroke |
3000mm |
Manual button control Z axes speed |
300mm/s |
Dimension(L x W x H) |
4500mmx1800mmx2700mm |
Weight |
8800 kg |
1. We can send engineers to your factory for your installation ,debugging and training.
2. we can help customer slove problem in the network.
3. welcome to visit our factory, we will pick up.
| shyzf91 (at) | |
| Skype | youth.yang88 |
| 15156701571 |
Maanshan Hudong Heavy Industry Machiney Manufacturing Co., Ltd. is a specialized company, designated by the nation to produce forging equipment, plate benders, plate shears, press machines and rolling benders, with a production history of more than 30 years.
