Specifications
All-steel welded structure ,stress elimination by vibration with high machine strength ,good rigidness.stable,high,accuracy.
PLC functions
ATOS valve group
Good quality with ISO9001,CE
Good after-sale service
Professional factory

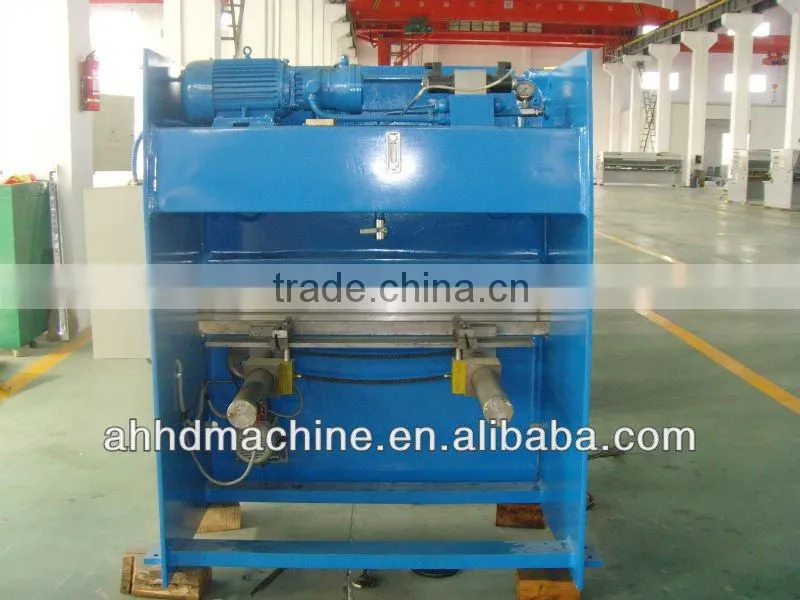

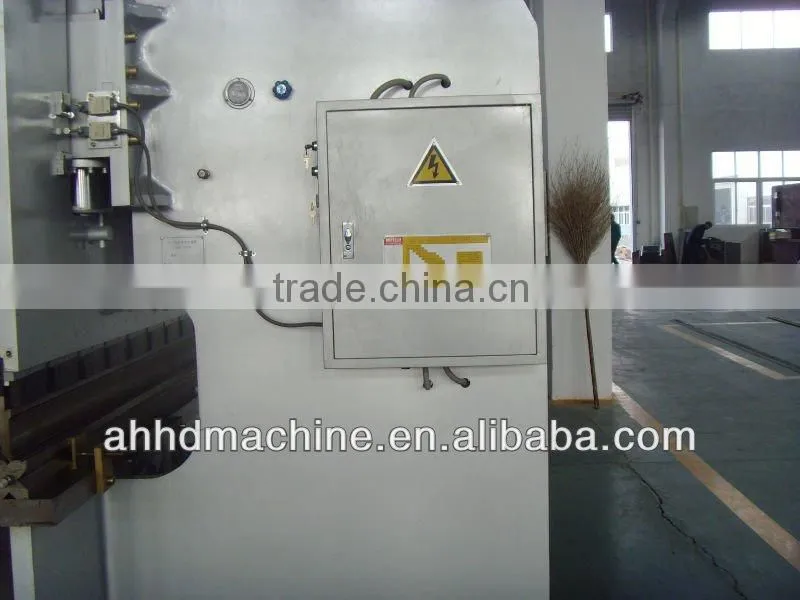

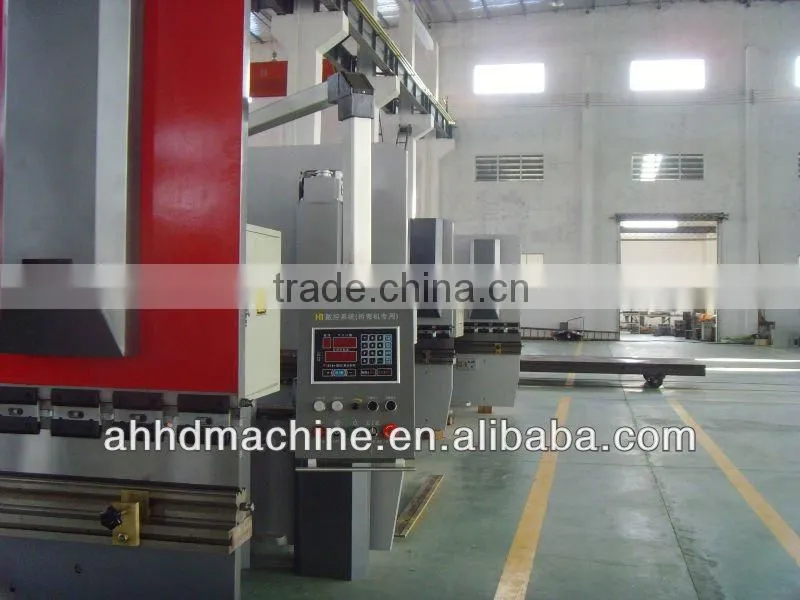

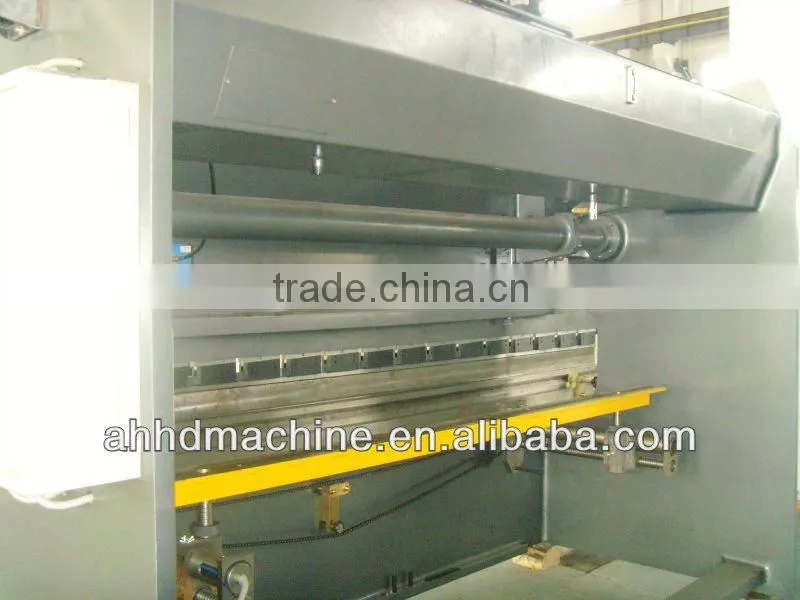

WC67Y-40T/2500 hydraulic press brake with mechanical digital display
| Type | Nominal Force (KN) | Worktable Length(mm) | Poles Distance (mm) | Throat Depth(mm) | Slider Travel(mm) | Max Open (mm) | Power(kw) | Weight(kg) | Dimension L×W×H(mm) |
| 40/2500 | 400 | 2500 | 2150 | 245 | 100 | 330 | 5.5 | 2800 | 2560×1200×1950 |
1.Adopts all-steel welded structure and stress elimination by vibration with high machine strength and good rigidness.
2.Hydraulic upper transmission, which is stable and reliable.
3.Mechanical stop and torsion axis synchronization with high accuracy.
4.Electric adjustment of distance of back gauge and stroke of upper slide.
5.The upper die is equipped with deflection compensating mechanism.
Maanshan Hudong Heavy Industry Machine Tool Manufacture Co., Ltd. is a specialized company, designated by the nation to produce forging equipment, plate benders, plate shears, press machines and rolling benders, with a production history of more than 30 years.
With complete equipment, abundant technical force and preferable geographic location, our company has developed rapidly on the design and manufacture. We have adopted advanced processing equipment, perfect design plan and consummate technological flow. Our products have beautiful appearance, durable structure and reliable performance. Some products have won the title of "high quality award", and we have been assessed as "AAA Credit Unit" for several years.
Our products have passed the certification of ISO9001:2008 quality management system. All products have obtained product responsibility insurance by PICC. Our production scale has been extended year after year with advantaged product market and high recognition. For 30 years, our company has always adhered to the idea of "customer first, quality first" with faithful management, and established reliable market channel.
Our objective is "high precision, advanced technology, strive for manufacturing perfect machines". We are looking forward to establishing relationships with you in the near future.
We will offer your following service:sanple sending,customized service,after-sale service and etc.Conerning your requriements,we glad to provide the best service to you .
