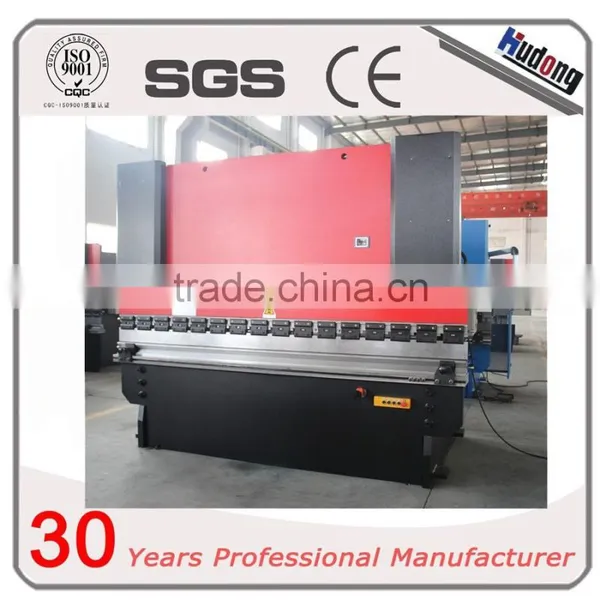

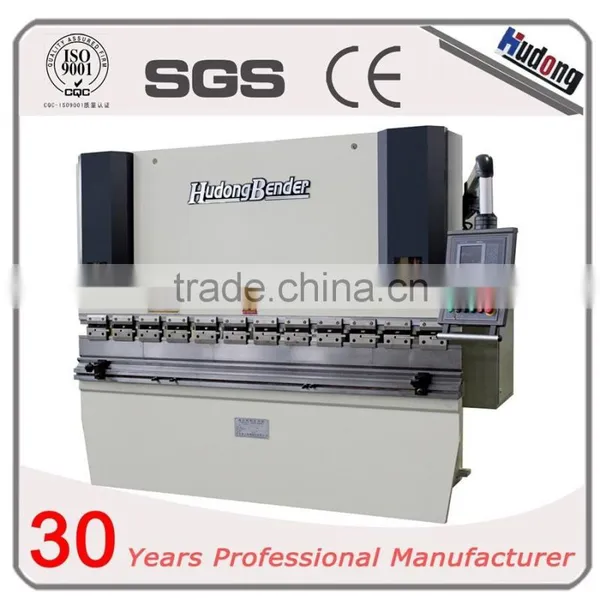

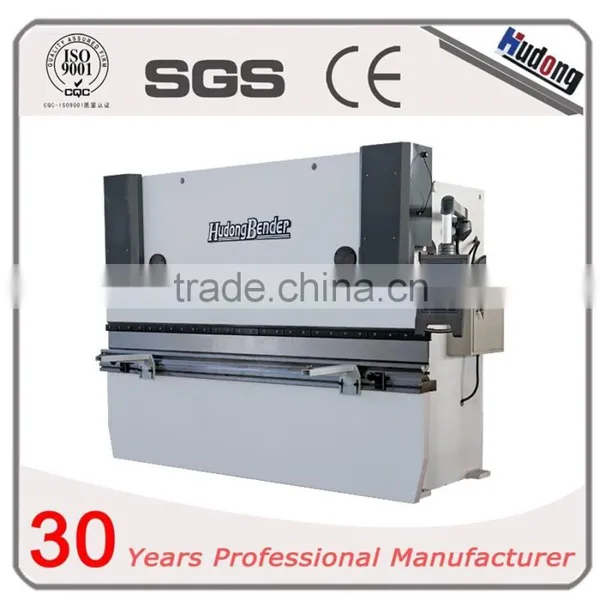

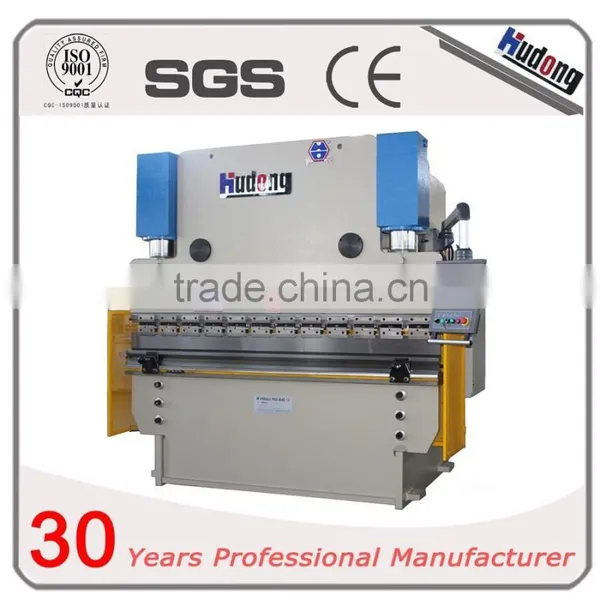

low cost stand normal hydraulic press brake bending machine 200T x 3200mm
Introduction
1.Adopts steel plate welded structure, with tempering process and vibration aging treatment,
Elimination the working stress and eliminating welding stress caused deformation, ensuring the precision
of the machine tool maintenance.
2. Standard with a multi vee bottom die and punch that is attached to the upper ram with normal change
punch holders.
3. Press brake with front support arm.
4. when slider down move, only touch limit switch, slider move stop , if cannot touch limit switch,
slider will return.
5. Slider will automatic return after release pressure finish. don't need to press foot switch.
Technical parameter
calculation formula.
650 x 8mm x 8mm x 3.2m / 8 x 8mm =2080KN=208Tons
Name |
unit |
200T/3200 |
Bending Force |
KN | 2000 |
worktable Length |
mm | 3200 |
The distance between two side plates |
mm | 2600 |
Throat Depth |
mm | 400 |
Slider Stroke |
mm | 200 |
Max opening Height between Worktable & slider |
mm | 480 |
Backgauge(x axis) max travel range |
mm | 600 |
Approaching Speed |
mm/s | 60 |
Working Speed |
mm/s | 6.8 |
Return Speed |
mm/s | 30.1 |
Main motor |
kw | 15 |
Weight |
kg | 10500 |
Dimension |
mm | 3500x2000x2700 |
1. We can send engineers to your factory for your installation ,debugging and training.
2. we can help customer slove problem in the network.
3. welcome to visit our factory, we will pick up.
pls contact Mr Yang, hope to service to you
| website | |
| Skype | youth.yang88 |
| 15156701571 |
Maanshan Hudong Heavy Industry Machiney Manufacturing Co., Ltd. is a specialized company, designated by the nation to produce forging equipment, plate benders, plate shears, press machines and rolling benders, with a production history of more than 30 years.
