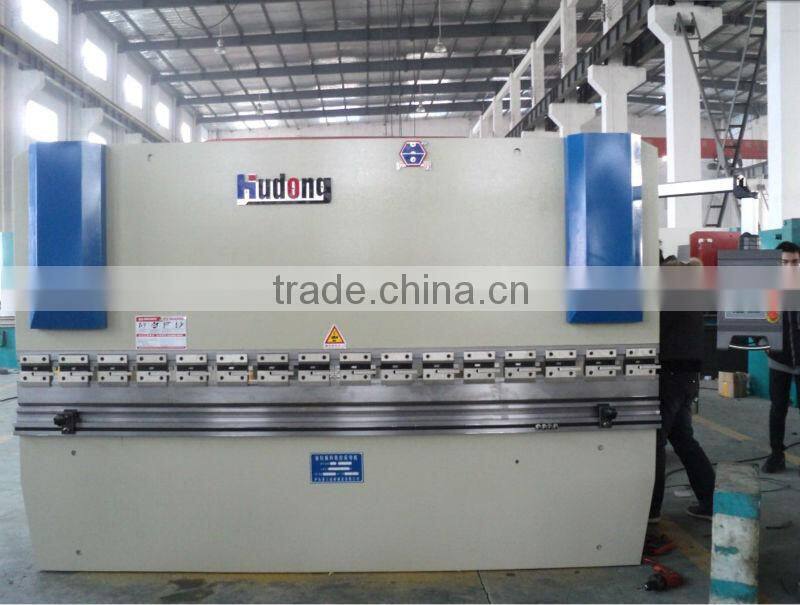

100T/4000 Wc67y Hydraulic Bending Machine Press Brake

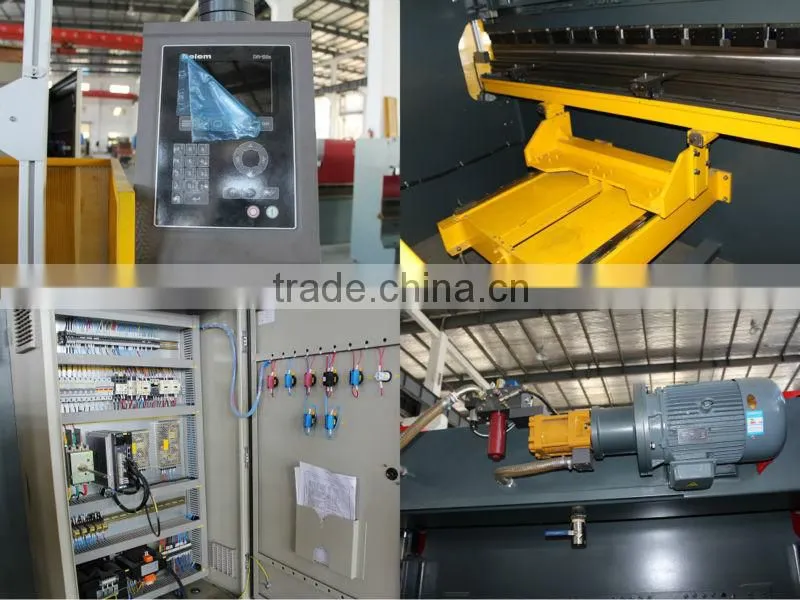

Main Equipments
1. Adopt Bosch hydraulic system
2. Use DA52 CNC control
3. Adopt Siemens Motor to improve quality
4. Rexroth gear pump
5.Schneider electric
6.CNC punch and die
7.Fast clamping
8. two servo motor
9. Y1,Y2,X,R,V( 4+1axis)
Main parameters:
Specification |
Unit |
100T/4000 |
|
Max Bending Force |
KN |
1000 |
|
Max Bending Length |
mm |
4000 |
|
Colum Distance |
mm |
3000 |
|
Throat Depth |
mm |
300 |
|
Ram Stroke |
mm |
130 |
|
Max Open Height |
mm |
415 |
|
Approaching Speed |
mm/s |
50 |
|
Working Speed |
mm/s |
6.5 |
|
Return Speed |
mm/s |
40 |
|
Main Motor Power |
KW |
7.5 |
|
CNC System |
|
DA41 control X,Y axes |
|
Oil Tank Capacity |
L |
260 |
|
|
X Axis |
Accuracy |
mm |
±0.1 |
|
Stroke |
mm |
600 |
|
Speed |
mm/s |
200 |
|
Power |
KW |
1 |
|
Outline Dimension |
Length |
mm |
4300 |
|
Width |
mm |
1465 |
|
Height |
mm |
2315 |
Weight |
KG |
7500 |
|
Hudong company provides oriented after-sales service including the oversea engineers trainning available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where are you.
We welcome engineers from your side to learn the technical design and normal maintenance here,this will help your easy in understanding and helpful if you need to be our dealer.
However,donto worry,we have our company own CD/Manual to show you along with the machine.So you can learn this from the existing docments to deepen your knowledge and understanding.
Anyhow there are another way is through internet video face to face for machine teaching, because of the high development in internet,the world has become smaller and you can easy cath us if any assistance needed.
Through all the ways,we will guarantee the service quality and ensure you will be well helped anytime anywhere.
