Metal Sheet Press Brake 160t/6000mm

Metal Sheet Press Brake 160t/6000mm thumbnail-1
Metal Sheet Press Brake 160t/6000mm photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
Huduan
Contact Supplier Request Quote Chat Now
Maanshan Hudong Heavy Industry Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Anhui, China
Brand Name Huduan
Model Number WD67K-160T/6000
Machine Type Press Brake
Raw Material Steel Bar
Material / Metal Processed Carbon Steel
Power Hydraulic
Automation Manual
Extra Services End Forming
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

metal sheet press brake 160t/6000mm



1 .Adopts all-steel welded structure and stress elimination by vibration with high machine strength and good rigidness;

2 .Hydraulic upper transmission , which is stable and reliable;

3 .Mechanical stop and torsion axis synchronization with high accuracy;

4 .Electric adjustment of distance of back gauge and stroke of upper slide;

5 .Manual fine tuning and digital display;

6 .The upper die is equipped with deflection compensating mechanism.



Machine key components list



No

Name

Origin

1

Asynchronous motor

Maanshan ,China

2

Relay

Schneider, France

3

Transformer

jiuchuan

4

AC contactor

Schneider, France

5

Circuit Breakers

Schneider, France

6

Servo motor

Taiwan

7

Gear pump

Japan

8

Sealing parts

Valqua ,Japan

9

Hydraulic Integrated Systems

America

10

CNC system

E21S

11

Ball screw



Main Techinical Parameter

NO

Name

Data

Unit

1

Nominal pressure

1600

KN

2

Length of worktable

6000

mm

3

Distance between housings

5000

      mm

4

Throat depth

320

mm

5

Stroke

150

mm

6

Open height

440

mm

7

Main motor

11

kw

8

Weight

14600

kg

9

Overall dimension

6060×1700×3000

mm

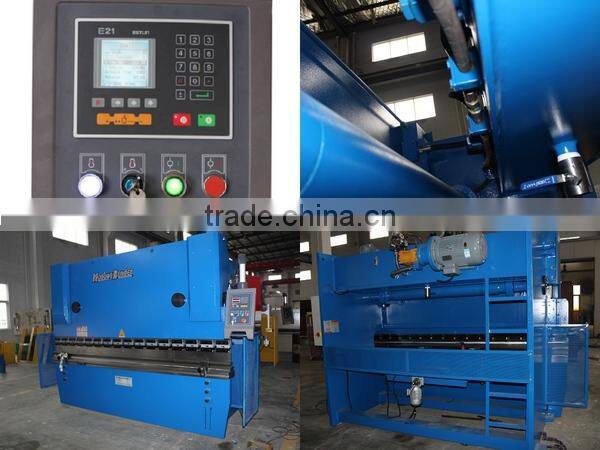

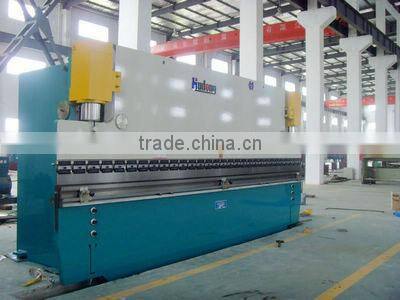

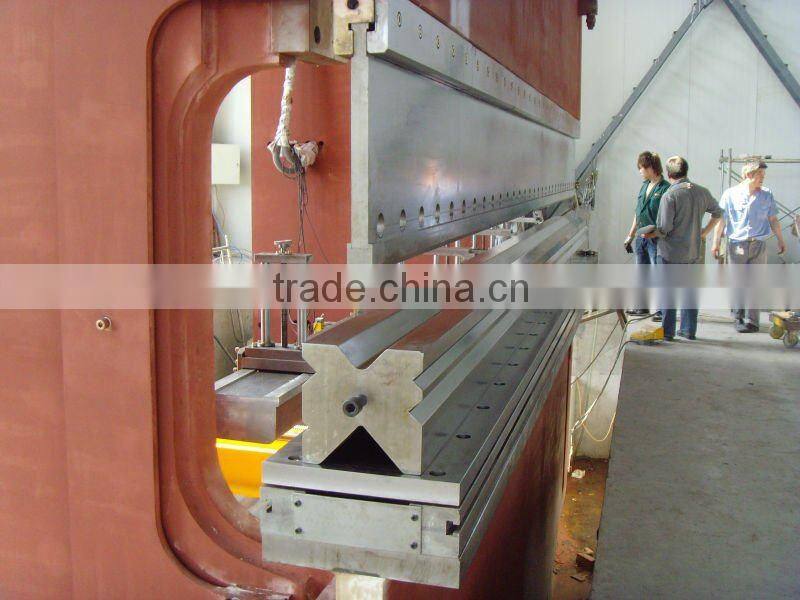

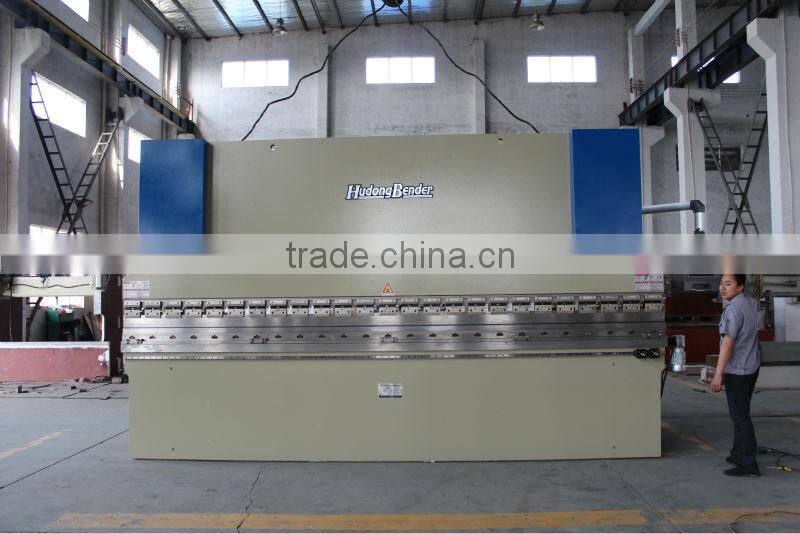

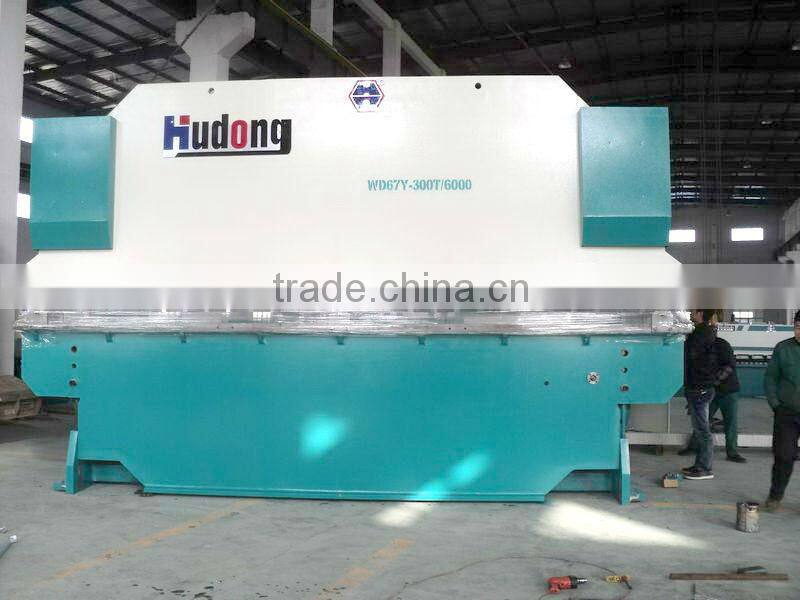

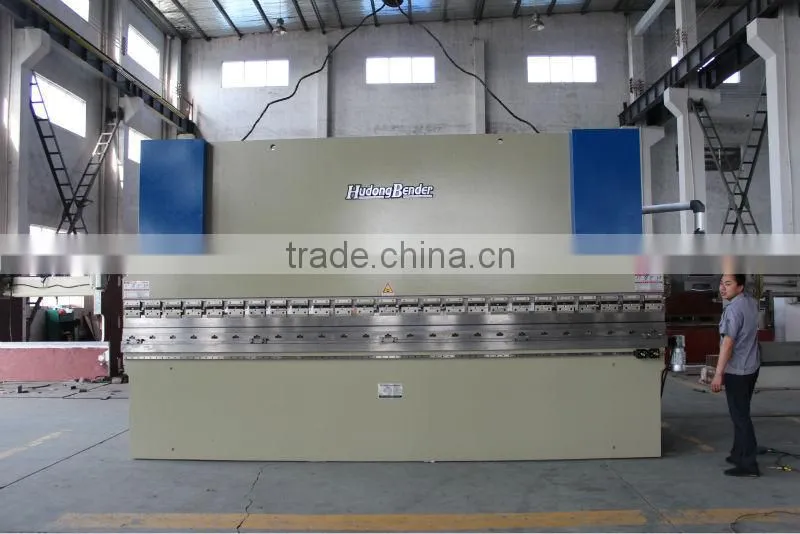

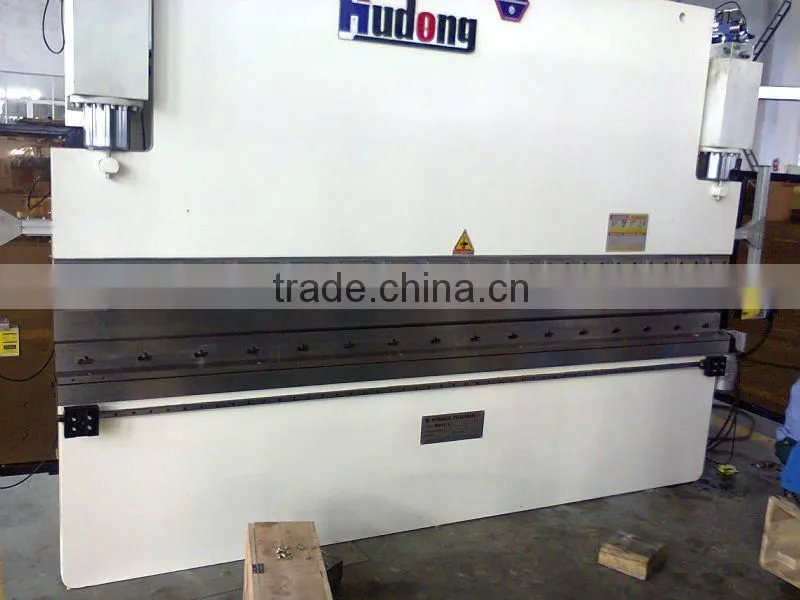

metal sheet press brake 160t/6000mmmetal sheet press brake 160t/6000mm

metal sheet press brake 160t/6000mm

metal sheet press brake 160t/6000mm

metal sheet press brake 160t/6000mm

metal sheet press brake 160t/6000mm

metal sheet press brake 160t/6000mm

metal sheet press brake 160t/6000mm

metal sheet press brake 160t/6000mm

metal sheet press brake 160t/6000mm

metal sheet press brake 160t/6000mm

metal sheet press brake 160t/6000mm

metal sheet press brake 160t/6000mm

metal sheet press brake 160t/6000mm
