Specifications
Quick DetailsCondition: New Place of Origin: Anhui, China (Mainland) Brand Name: hudong Model Number: 300Tx4000 Machine Type:
Product Description

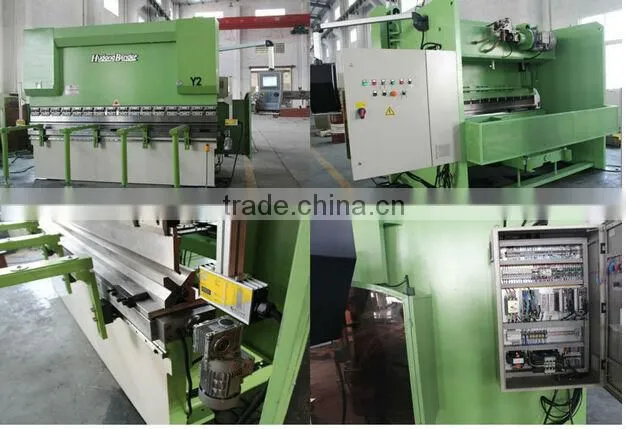

hydraulic synchronous press brake 4000
Introduction
1. press brake on both sides of the main cylinder synchronization use Germany imports of electro-hydraulic servo valve and the Germany grating closed loop control, accurate feedback, the slider running accurately, thereby bending the accuracy slider repeat positioning accuracy.
2. press brake adopts steel plate welded structure, with tempering process and vibration aging treatment,
Elimination the working stress and eliminating welding stress caused deformation, ensuring the precision of the machine tool maintenance
3. The fuselage uses the split assembled structure, convenient transportation, convenient processing, can ensure the accuracy of the machine tool.
4.Equipped with a sectional die, the workpiece can be assembled into a required length, to suit the special processing requirements of workpiece,
punch using safety trench structure (European standard),
mold structure very convenient to disassembly and assembly.
Standard with Delem-DA65W numerical-control system
Bosch Rexroth of Germany's high-performance servo-hydraulic control system synchronization
Germany grating rule simultaneous detection of position feedback encoder with both side
back gauge with high-performance servo motor and ball screw
the deflection compensation with DNC system
standard with a set of mould
press brake with front support arm
press brake technical parameter
Specification |
Unit |
300T/4000 |
|
Max Bending Force |
KN | 3000 | |
Max Bending Length |
mm | 4000 | |
Colum Distance |
mm | 3200 | |
| Throat Depth | mm | 400 | |
| Ram Stroke | mm | 250 | |
| Max Open Height | mm | 520 | |
| Fast Speed | mm/s | 100 | |
| Working Speed | mm/s | 9 | |
| Main Motor Power | KW | 22 | |
| CNC System | Holland DA65W | ||
| Control axes | axis | 4+1 | |
| X Axis | Accuracy | mm | ±0.1 |
| Stroke | mm | 600 | |
| Speed | mm/s | 150 | |
| Power | kw | 1 | |
|
|
|
||
| Dimension | Length | mm | 4300 |
| Width | mm | 2000 | |
| Height | mm | 3200 | |
| Weight | kg | 19500 | |
