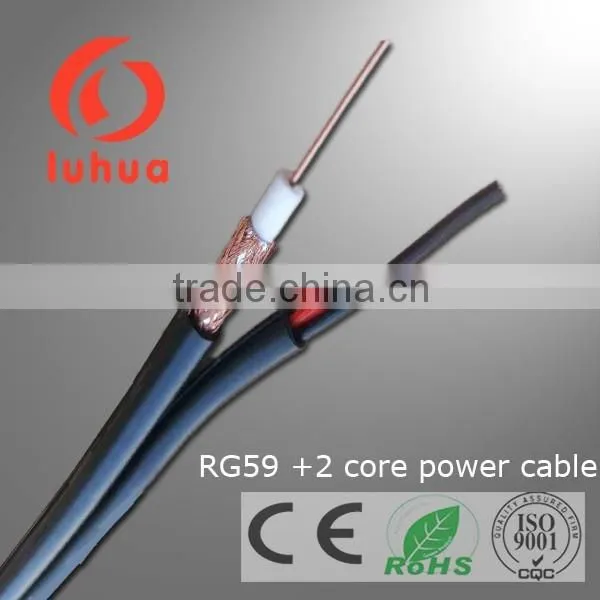

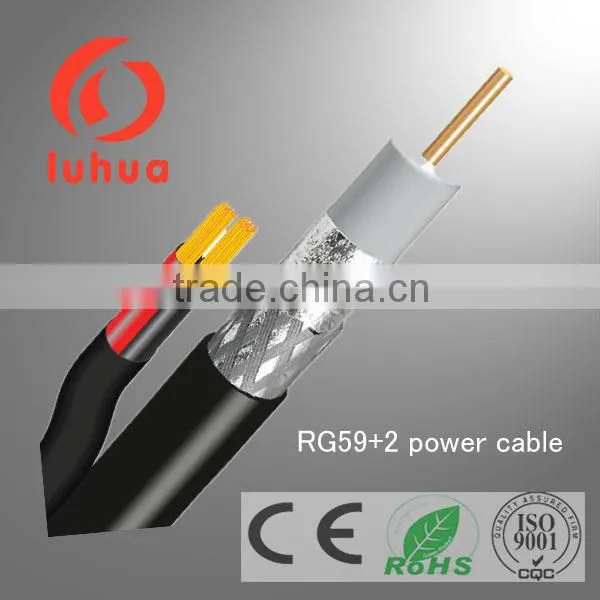

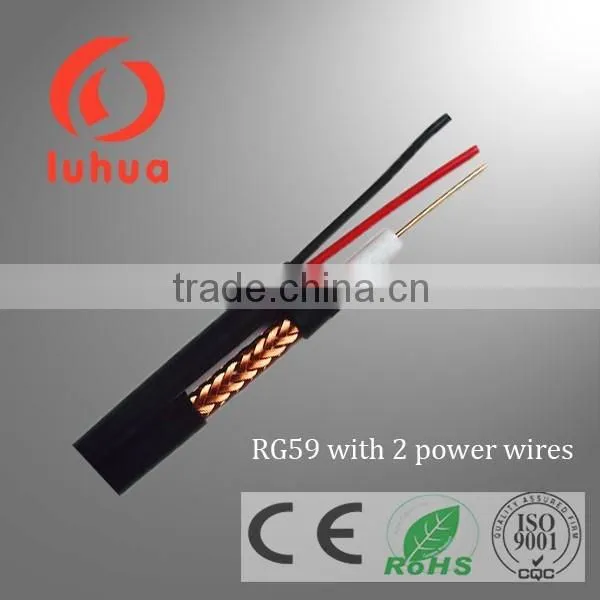

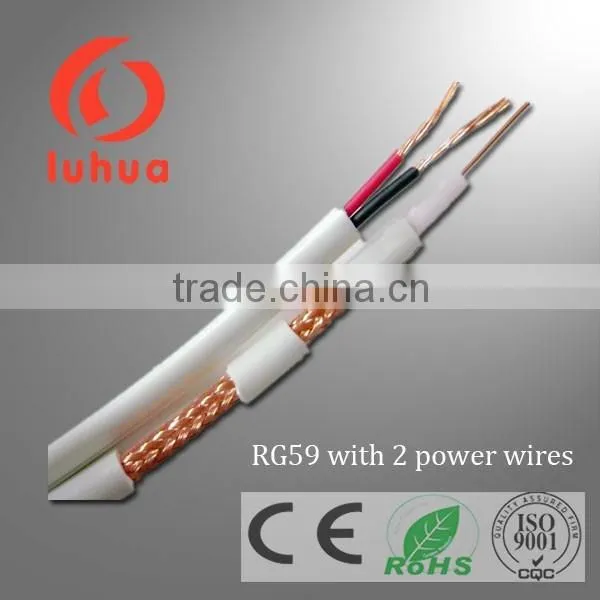

rg59 cable +2power wires cctv ptz cable

Products Description

Specifications

RG59 Series Drop Coaxial cable specifications

·                     Center conductor: 0.81mm BC

·                      Dielectric: 3.7mm P/FPE/P

·                      Shielding foil: Al/pet

·                      Outer conductor: 128*0.12mm BC

·                      Jacket: 6.10mm PVC

      2-18

                       Center conductor:2-18 AWG Stranded Copper(7*0.38mm)

                       Dielectric:solid PE 1.8mm

                       Jacket:(2-18):4.5mm

                       BC: bare copper

·                      Al: aluminum

·                      PVC: polyvinylchlorid

·                      AL/pet: aluminum/polyester tape foil

·                      P/FPE/P: HDPE inter skin, foamed polyethylene and HDPE outer skin

Characteristics:

                        Spark Test:2000VAC

                        Diectric Strength:Conductor to Shield:2000VDC<wire to wire:1000VDC>

                        Impedance: 75±3 ohms

                        Capacitance:16.0pF./Ft.Nom

                        Velocity of Propagation:84%

                        DCR:Conductor:10.5Ohms/1000Ft(Nom)Coax

                                                6.6Ohms/1000Ft(Nom) 18AWG

                        SRL:20dB(10-350MHz)100% Swept Tested

Notes:

                     Center conductor: TC, BC, CCA and CCS are available

                     Insulation: FPE and HDPE

                     Al-foil: Al/pet, Al/pet bonded, Al/pet/AL and Al/pet/AL bonded are available

                     Braiding wire: TC, BC, CCA and Al-MG are available

                     Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16 and 0.18mm available

                     Braiding net: 48, 64, 72, 80, 96, 112 ,128,144 and 192 are available

                     Braiding coverage: between 30 to 100% available

                     PVC: 60, 65, 70 and 75 degrees, white, black and other colors are available

                     Certificates: ISO9001, CE and RoHS
