Specifications

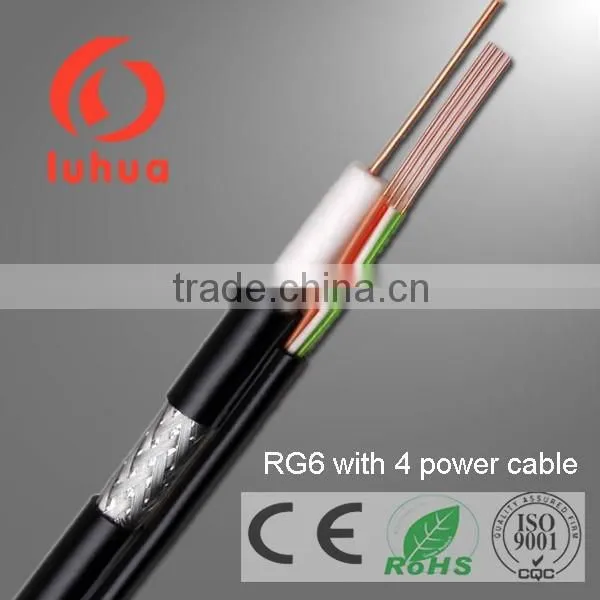

RG6 + 4C Wire Coaxial Cable1.OEM Available
2.ISO9001/CE/RoHS Approved
3.Good quality with best service
4.Free Sample
Products Description
RG6 Series Drop Coaxial cable specifications
Physical Specifications
Nominal Dimensions |
Standard
|
Tri-shielding
|
Quad-shielding
|
Conductor |
1.02mm( 0.0403 in) |
1.02mm( 0.0403 in) |
1.02mm( 0.0403 in) |
Dielectric |
4.57mm(0.180 in) |
4.57mm(0.180 in) |
4.57mm(0.180 in) |
Shielding 1 |
Al /Pet foil |
Bonded Al /Pet foil |
Bonded Al /Pet foil |
Shielding 2 |
0.12mm*64(40% coverage) |
0.12mm*80(60% coverage) |
0.12mm*144(90% coverage) |
Shielding 3 |
- |
Al /Pet foil |
Al /Pet/Al foil |
Shielding 4 |
- |
|
0.12mm*64( 40% coverage) |
Jacket |
6.91mm( 0.272 in) |
7.06mm( 0.278 in) |
7.62mm( 0.300 in) |
Messenger |
1.3mm (0.051 in) Zinc plated steel |
||
Mechanical Characteristics
Mechanical Breaking Strength of Messenger 0.051 inch 185lbs. 823 N
Electrical Characteristics
Impedance ( Ohms) 75±3
Nominal Capacitance (pF/m) 53
Velocity of Propagation 85%
Structural return loss (Db)≥ VHF 22
UHF 20
Attenuation [@68F.(20 Degree centigrade)]
Frequency Mhz |
dB/100 ft |
dB/100 M |
5 |
0.58 |
1.90 |
55 |
1.60 |
5.25 |
211 |
3.05 |
10.00 |
300 |
3.55 |
11.64 |
400 |
4.15 |
13.61 |
450 |
4.40 |
14.43 |
550 |
4.90 |
16.08 |
750 |
5.65 |
18.54 |
865 |
6.10 |
20.01 |
1000 |
6.55 |
21.49 |
RG6+4C Cable Specification :
1.0CCS++FPE+ALFOIL+95%braid+6.8PVC +4*0.5CCS
0.98CCS++FPE+ALFOIL+32*0.12al+6.8PVC +4*0.3CCS
Production Progress
Paking & Shipping
1.305m/wooden reel/carton box
2.500/wooden reel/carton box
or according to the customer request
Our Service
Sample for free
1. Your inquiry will be replied in 24hours.
2. 15 years Coaxial Cable's experience,can become your professional purchasing partner.
3. OEM&ODM, any your customized cables we can help you to design and put into product .
4. Sample you need so that to test our company 's ability, we are so glad to free offer it.
5. Protection of your sales area, ideas of design and all your private information is our duty
Company Overview
Hangzhou LinAn LuHua Industrial Co.,Ltd has more than15 years experience both in the production of coaxial cable.
We are always promoting the development of the enterprise with the Honest Operation since we step into the cable industry, so as to develop our company from a small workshop of more than 10 people to a limited company of more than 100 people.
2 types:
1)RG59,RG6,RG7,RG11, 75 OhmCoaxial Cable with Solid Polyethylene Insulation ,which is also named Vedio. cable
2)RG59,RG6,RG7,RG11, 75 Ohms Coaxial Cable with Gas-injected Foam Polyethylene Insulation, which is also named RF cable.
We believe that Chinese enterprise have the potential to accept the challenges, so can our company. Feel free to contact us when you have any problems about the products. Calls, letters, visits are welcomed.
