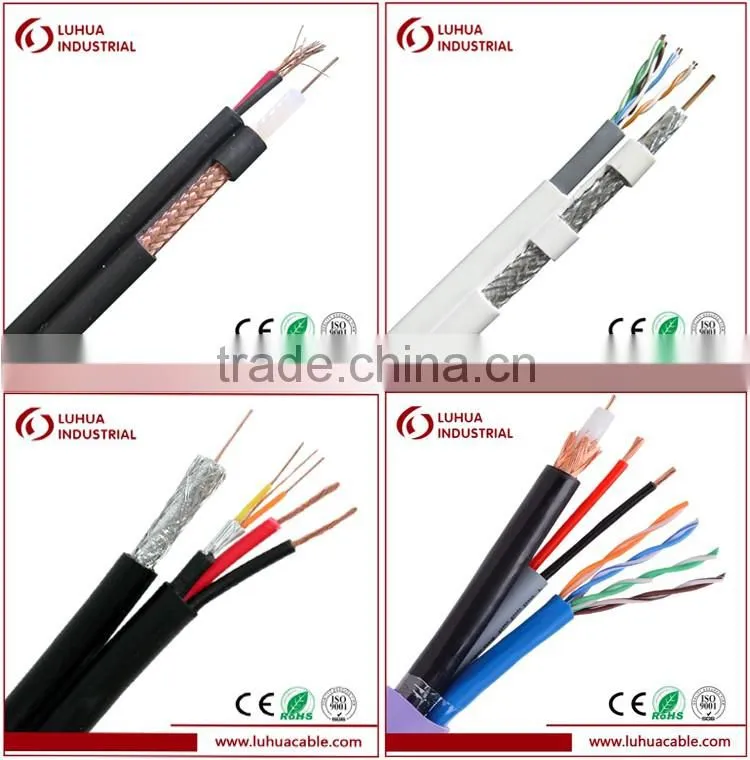

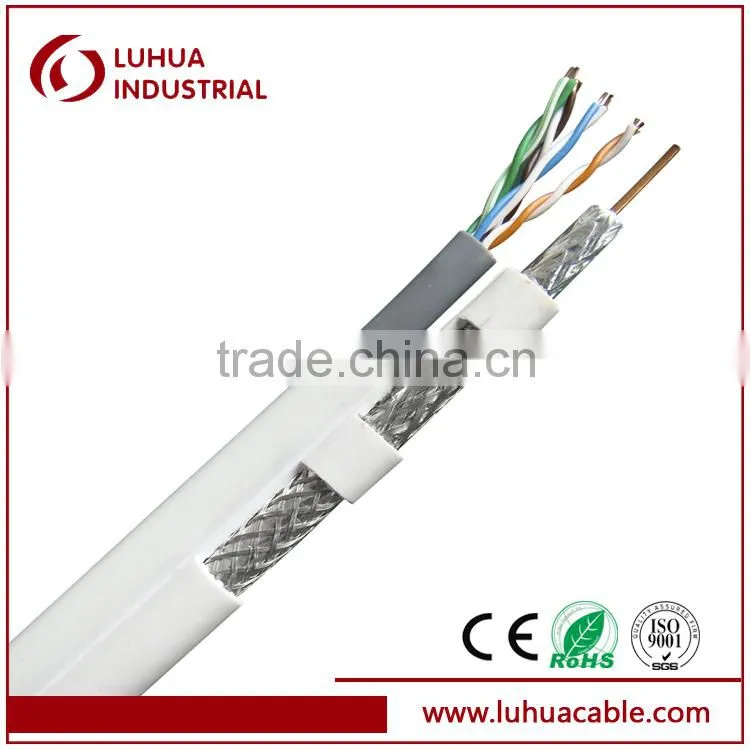

Help CenterComposit Cable RG6BC With 26AWG UTP CAT5E Lan Cable for Gigabit Ethernet
Related Products
-
24AWG 4 Pair UTP CAT5E Cable With RG6 BC , High Transmission UTP CAT5E Ethernet CableUS$ 0.05 - 0.25MOQ: 50 Kilometers -
Coaxial Cable RG59 With 2 Power Wire for CCTV Camera From Hangzhou Manufacture (CE RoHS ISO9001)US$ 0.05 - 0.25MOQ: 50 Kilometers
-
RG59 2c Coaxial Cable rg 59 + 2 Core Power for Video Camera CCTV CATV System CE RoHS ISO9001 ApprovedUS$ 0.15 - 0.45MOQ: 50 Kilometers
-
RG59 2c Coaxial Cable rg 59 + 2 Core Power for Video Camera CCTV CATV System CE RoHS ISO9001 ApprovedUS$ 0.15 - 0.45MOQ: 50 Kilometers
-
Coaxial Cable RG59+2power Cable Siamese Cable for CCTV Camera 75ohms Security Cable Copper Wire Spool With CE RoHS ApprovedUS$ 0.15 - 0.45MOQ: 50 Kilometers
RG6 Series Drop Coaxial cable specifications
Physical Specifications
Nominal Dimensions |
Standard
|
Tri-shielding
|
Quad-shielding
|
Conductor |
1.02mm( 0.0403 in) |
1.02mm( 0.0403 in) |
1.02mm( 0.0403 in) |
Dielectric |
4.57mm(0.180 in) |
4.57mm(0.180 in) |
4.57mm(0.180 in) |
Shielding 1 |
Al /Pet foil |
Bonded Al /Pet foil |
Bonded Al /Pet foil |
Shielding 2 |
0.12mm*64 (40% coverage) |
0.12mm*80 (60% coverage) |
0.12mm*144 (90% coverage) |
Shielding 3 |
- |
Al /Pet foil |
Al /Pet/Al foil |
Shielding 4 |
- |
|
0.12mm*64 ( 40% coverage) |
Jacket |
6.91mm( 0.272 in) |
7.06mm( 0.278 in) |
7.62mm( 0.300 in) |
Messenger |
1.3mm (0.051 in) Zinc plated steel |
||
Mechanical Characteristics
Mechanical Breaking Strength of Messenger 0.051 inch 185lbs. 823 N
Electrical Characteristics
Impedance ( Ohms) 75±3
Nominal Capacitance (pF/m) 53
Velocity of Propagation 85%
Structural return loss (Db)≥ VHF 22
UHF 20
Attenuation [@68F.(20 Degree centigrade)]
Frequency Mhz |
dB/100 ft |
dB/100 M |
5 |
0.58 |
1.90 |
55 |
1.60 |
5.25 |
211 |
3.05 |
10.00 |
300 |
3.55 |
11.64 |
400 |
4.15 |
13.61 |
450 |
4.40 |
14.43 |
550 |
4.90 |
16.08 |
750 |
5.65 |
18.54 |
865 |
6.10 |
20.01 |
1000 |
6.55 |
21.49 |
UTP CAT5e
Application:100 Base-TX,100 Base-T4 / 100VG-AnyLAN / 100 Base-T,(Gigabit Ethernet),ATM
Product Description
Rated temperature: 60℃,75℃,90℃
Reference Standard:UL444,TIA/EIA-568B
Bare copper conductor
RoHS complied PVC,PE or LSZH Jacket
Complies to TIA/EIA-568B&ISO/IEC11801
Cable construction
Item No. |
LH501 |
LH502 |
LH503 |
LH504 |
LH505 |
Application |
Indoor |
Indoor |
Outdoor |
Outdoor |
Outdoor |
Conductor Dia |
0.50mm |
0.51mm |
0.51mm |
0.51mm |
0.51mm |
Core Dia |
0.91mm |
0.91mm |
0.91mm |
0.91mm |
0.91mm |
No.of Pairs |
4 |
4 |
4 |
4 |
4 |
Nom.OD(mm) |
5.1mm |
5.1mm |
5.1mm |
5.1mm |
5.1mm |
Jacket |
PVC |
PVC |
PE |
PVC+PE |
LSZH |
Remark |
|
|
Jelly filled |
Water block Tape |
|
Electrical Characteristics
Frequency(MHz) |
1 |
4 |
8 |
10 |
16 |
25 |
31.25 |
62.5 |
100 |
155 |
200 |
310 |
350 |
Impedance(Ω) |
100±15 |
100±18 |
100±22 |
||||||||||
RL(dB) |
20 |
23 |
|
25 |
25 |
25 |
24 |
22 |
20 |
19 |
19 |
18 |
17 |
Attenuation(dB/100m) |
2.0 |
4.1 |
|
5.8 |
6.5 |
8.2 |
10.4 |
17.0 |
22 |
28.1 |
28.1 |
41.8 |
44.9 |
NEXT(dB/100m) |
65.3 |
56.3 |
|
51.8 |
50.3 |
47.3 |
44.3 |
38.4 |
35.3 |
33.0 |
33.0 |
28.0 |
27.0 |
ELFEXT(dB/100m) |
63.8 |
51.7 |
|
45.7 |
43.8 |
39.7 |
35.8 |
27.8 |
23.8 |
20.0 |
20.0 |
14.0 |
13.0 |
PS NEXT(dB/100m) |
62.3 |
53.3 |
|
48.8 |
47.3 |
44.2 |
41.3 |
35.4 |
32.3 |
29.0 |
29.0 |
25.0 |
24.0 |
PSELFEXT(dB/100m) |
60.8 |
48.7 |
|
42.7 |
40.8 |
36.7 |
32.8 |
24.8 |
20.8 |
17.0 |
17.0 |
11.0 |
10.0 |
PropagationSpeed(m/s) |
0.65c |
||||||||||||
1.305m/wooden reel/carton box
2.500/wooden reel/carton box
According to the customer request
Composit cable
