Specifications

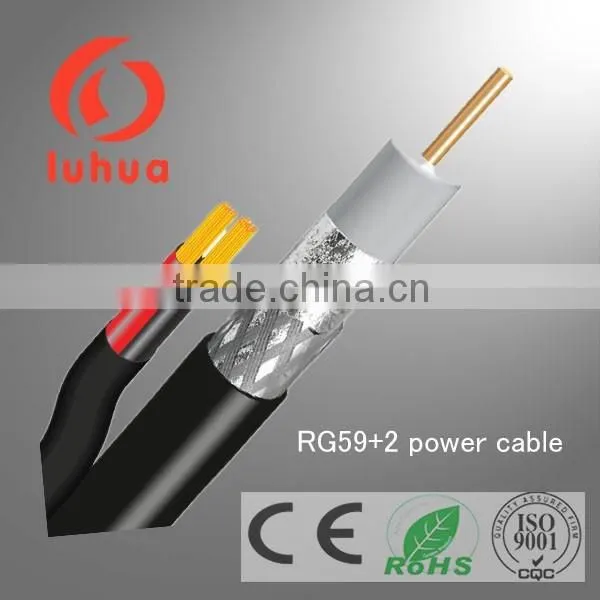

coaxial cable RG59 with 2 power wire for CCTV camera from Hangzhou manufacture1.CE ISO RoHS
2.Quick Delivery
3.OEM
Products Description
RG59 Series Drop Coaxial cable specifications
· Center conductor: 0.81mm BC
· Dielectric: 3.7mm P/FPE/P
· Shielding foil: Al/pet
· Outer conductor: 128*0.12mm BC
· Jacket: 6.10mm PVC
2-18
Center conductor:2-18 AWG Stranded Copper(7*0.38mm)
Dielectric:solid PE 1.8mm
Jacket:(2-18):4.5mm
BC: bare copper
· Al: aluminum
· PVC: polyvinylchlorid
· AL/pet: aluminum/polyester tape foil
· P/FPE/P: HDPE inter skin, foamed polyethylene and HDPE outer skin
Characteristics:
Spark Test:2000VAC
Diectric Strength:Conductor to Shield:2000VDC<wire to wire:1000VDC>
Impedance: 75±3 ohms
Capacitance:16.0pF./Ft.Nom
Velocity of Propagation:84%
DCR:Conductor:10.5Ohms/1000Ft(Nom)Coax
6.6Ohms/1000Ft(Nom) 18AWG
SRL:20dB(10-350MHz)100% Swept Tested
Notes:
Center conductor: TC, BC, CCA and CCS are available
Insulation: FPE and HDPE
Al-foil: Al/pet, Al/pet bonded, Al/pet/AL and Al/pet/AL bonded are available
Braiding wire: TC, BC, CCA and Al-MG are available
Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16 and 0.18mm available
Braiding net: 48, 64, 72, 80, 96, 112 ,128,144 and 192 are available
Braiding coverage: between 30 to 100% available
PVC: 60, 65, 70 and 75 degrees, white, black and other colors are available
Certificates: ISO9001, CE and RoHS Customers' specifications are wellcomed

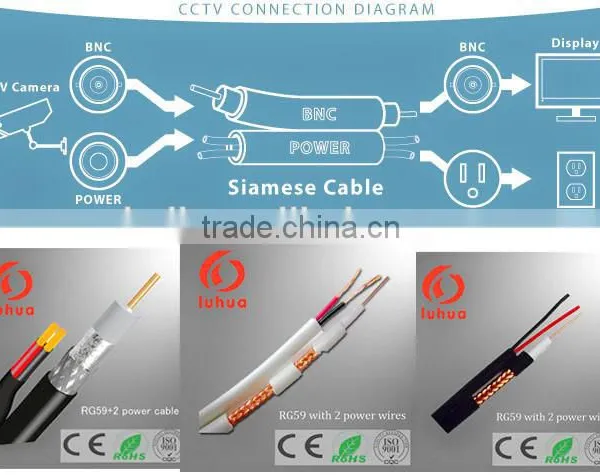

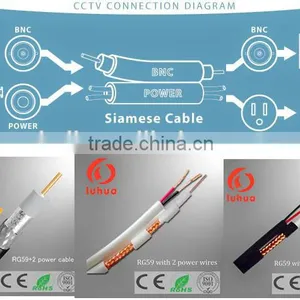

Siamese cables
production process
Paking & Shipping
1.305m/wooden reel/carton box
2.500/wooden reel/carton box
or according to the customer request
more products
COXIAL CABLE:
75 OHM: RG6 RG59 RG11 QR540
50 OHM: LMER200,300,400,600
RG58 RG8 RG213, 214, 223
SERIES OF D-FB

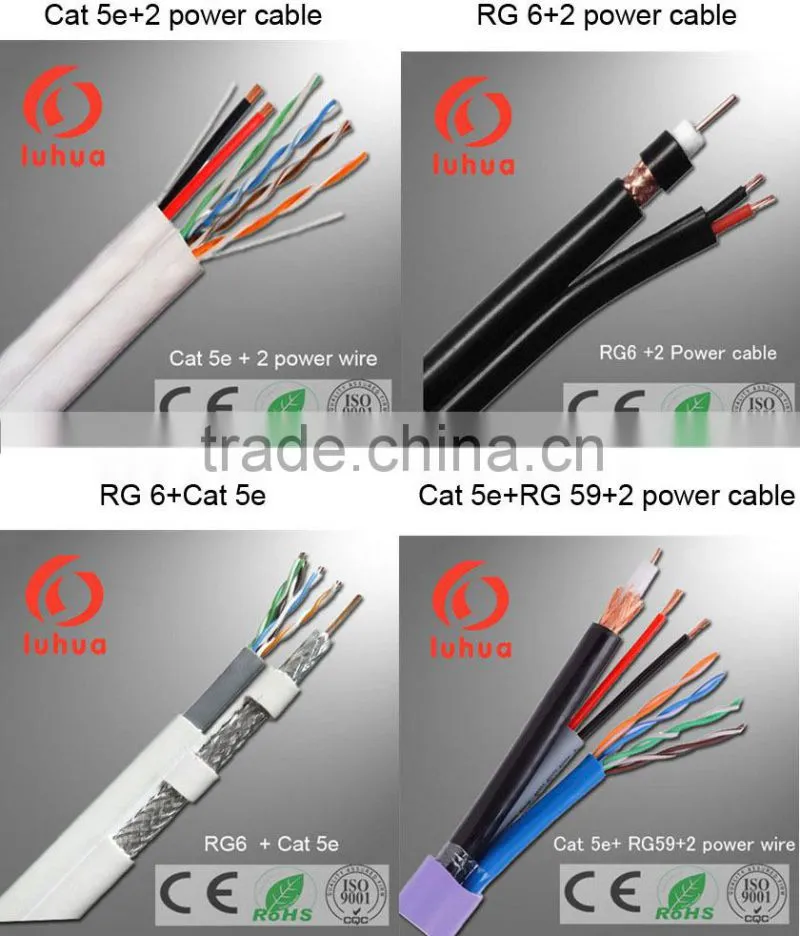

COMPOSE CABLE, such as RG59+power cable, RG6+power cable,etc
LAN CABLE:UTP/FTP/SFTP CAT5E, CAT6
TELEPHONE CABLE
Company Overview
Hangzhou LinAn LuHua Industrial Co.,Ltd has more than15 years experience both in the production of coaxial cable.
We are always promoting the development of the enterprise with the Honest Operation since we step into the cable industry, so as to develop our company from a small workshop of more than 10 people to a limited company of more than 100 people.
types:
1)RG59,RG6,RG7,RG11, 75 OhmCoaxial Cable with Solid Polyethylene Insulation ,which is also named Vedio. cable
2)RG59,RG6,RG7,RG11, 75 Ohms Coaxial Cable with Gas-injected Foam Polyethylene Insulation, which is also named RF cable.
We believe that Chinese enterprise have the potential to accept the challenges, so can our company. Feel free to contact us when you have any problems about the products. Calls, letters, visits are welcomed.
