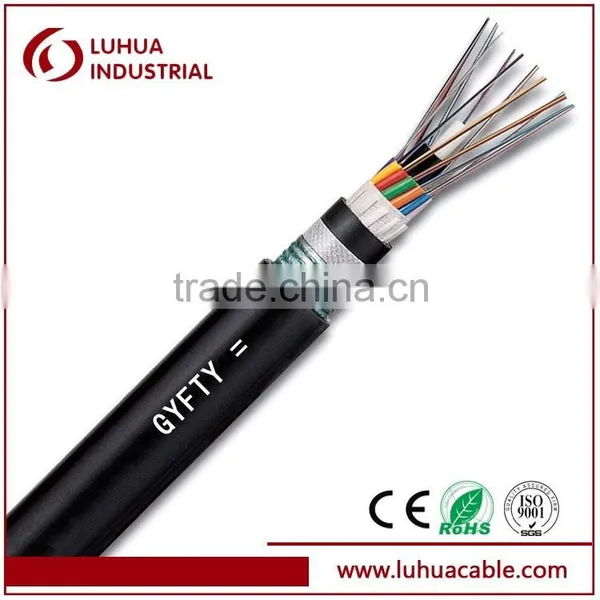

Help CenterGYFTY Fiber Optical Cable for Outdoor
Related Products
-
GYTS Loose Tube Fiber Optical Cable for OutdoorUS$ 0.5 - 5MOQ: 10000 Meters -
GYTY53 Loose Tube Stranded Cable With Steel Tape Armored Bouble PE Sheath Outdoor Fiber CableUS$ 0.5 - 5MOQ: 10000 Meters
-
GYFXTY Aerial Outdoor Fiber Optic Cable for CommunicationUS$ 0.5 - 5MOQ: 10000 Meters
-
GYXTW Unitube Light Armored Outdoor Fiber CableUS$ 0.5 - 5MOQ: 10000 Meters
-
GYTA Stranded Loose Tube Noe- Armored CableUS$ 3 - 10MOQ: 10000 Meters
GYFTY-24B1.3
Fiber Parameters
No. |
Items |
Unit |
Specification |
|
G.652D | ||||
1 |
Mode Field Diameter |
1310nm |
μm |
9.2±0.4 |
1550nm |
μm |
10.4±0.5 |
||
2 |
Cladding Diameter |
μm |
124.8±0.7 |
|
3 |
Cladding Non-Circularity |
% |
≤0.7 |
|
4 |
Core-Cladding Concentricity Error |
μm |
≤0.5 |
|
5 |
Coating Diameter |
μm |
245±5 |
|
6 |
Coating Non-Circularity |
% |
≤6.0 |
|
7 |
Cladding-Coating Concentricity Error |
μm |
≤12.0 |
|
8 |
Cable Cutoff Wavelength |
nm |
λcc≤1260 |
|
9 |
Attenuation(max.) |
1310nm |
dB/km |
≤0.36 |
1550nm |
dB/km |
≤0.25 |
||

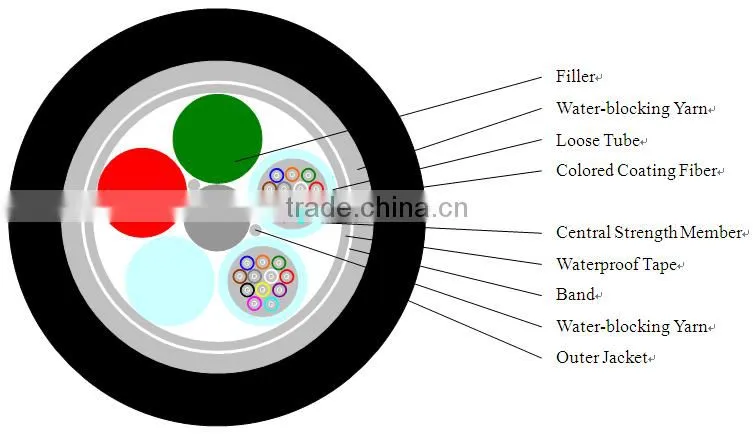

Cable Parameters
Items |
Specifications |
|
Fiber Count |
24 |
|
Colored Coating Fiber |
Dimension |
250µm±15µm |
Color |
Blue,Orange,Green,Brown, Grey,Natural,Red,Black, Yellow,Purple,Pink,Aqua |
|
Loose Tube |
Dimension |
1.95mm±0.05mm |
Material |
PBT |
|
Color |
Natural,Natural |
|
Filler |
Dimension |
1.95mm±0.05mm |
Material |
PP |
|
Color |
Red,Green,Natural |
|
Central Strength Member |
Diameter |
1.5mm |
Material |
FRP |
|
Outer Jacket |
Dimension |
10.2mm±0.3mm |
Material |
PE |
|
Color |
Black |
|
Mechanical and Environmental Characteristics
Items |
Unit |
Specifications |
Tension(Long Term) |
N |
600 |
Tension(Short Term) |
N |
1500 |
Crush(Long Term) |
N/10cm |
300 |
Crush(Short Term) |
N/10cm |
1000 |
Min. Bend Radius(Dynamic) |
mm |
20D |
Min. Bend Radius(Static) |
mm |
10D |
Installation Temperature |
℃ |
-20~+60 |
Operating Temperature |
℃ |
-40~+70 |
Storage Temperature |
℃ |
-40~+70 |
Location

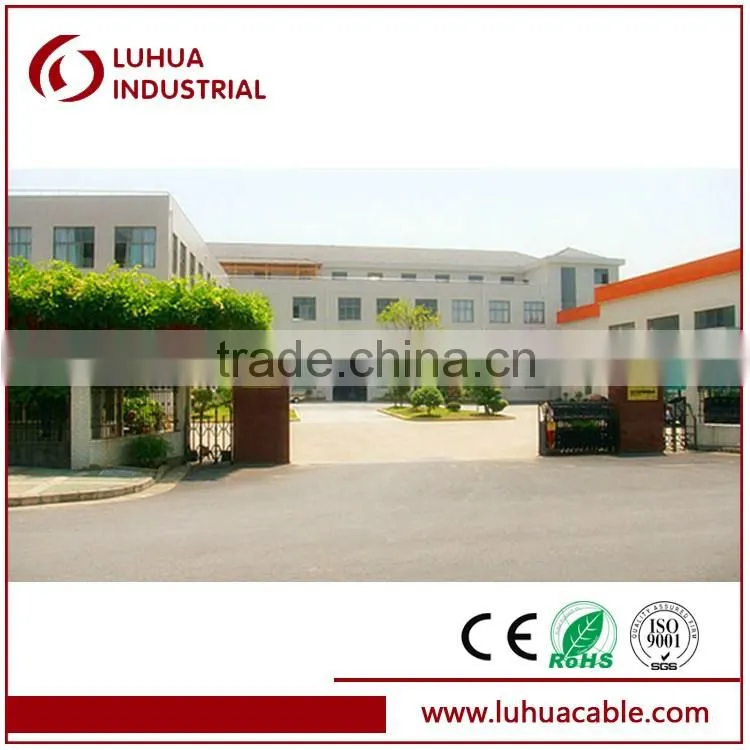

Hangzhou LinAn LuHua Industrial Co.,Ltd is situated in Linglong Industrial Zone, Lin'an, Zhejiang
province , China.
Strength
Our company is a capable enterprise with more than15 years experiences both in the production
and the management system, We have the most advanced testing equipment, and got some
authority certificate of this field,such as the ISO-9001, CE, ROSHS, all of these contribute
to insure that we can provide the products with high quality.
Major Product
Our cable products including:
Fiber optical cable (indoor fiber cable for FTTH Cable&outdoor fiber cable for GY series)
Coaxial cable (RG series,JIS series,D-FB series RF Cables)
Lan cable ( UTP/FTP/SFTP CAT5e/CAT6/CAT6A,etc)
