GYTA Stranded Loose Tube Noe- Armored Cable

Name: GYTA Stranded Loose Tube Noe- Armored Cable
Brand: Luhua or OEM
SKU: 129644347
Availability: InStock

GYTA Stranded Loose Tube Noe- Armored Cable thumbnail-1

GYTA Stranded Loose Tube Noe- Armored Cable photo-1

US$ 3 - 10 MOQ: 10000 Meters

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Luhua or OEM

Model Number:

Fiber Optic Cable

Contact Supplier Request Quote Chat Now

Zhejiang Luhua Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Luhua or OEM

Model Number Fiber Optic Cable

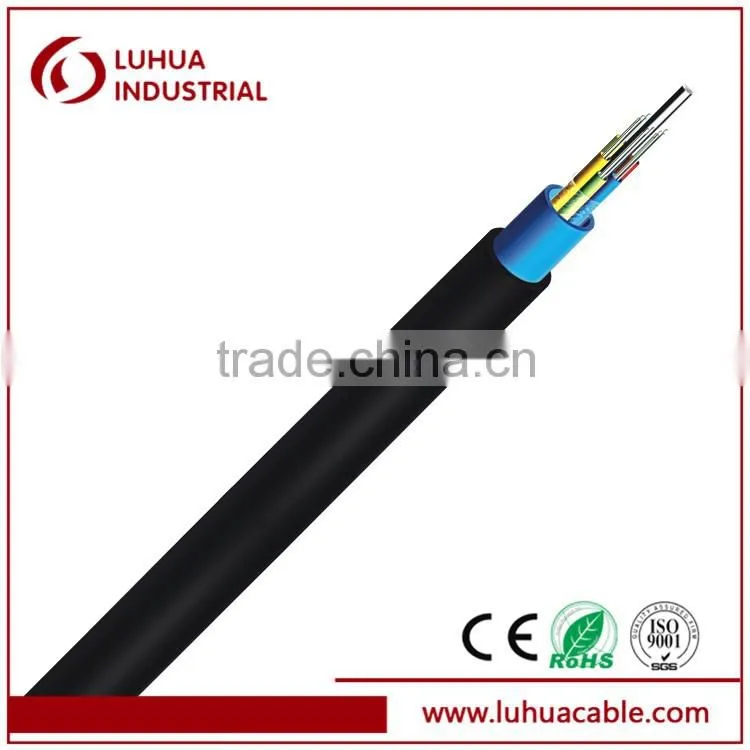

GYTA stranded loose tube noe- armored cable

Characteristics

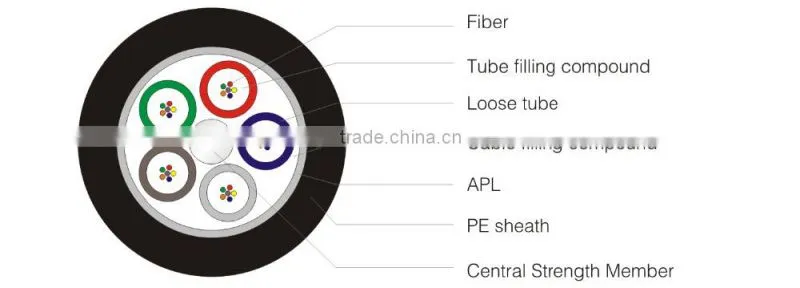

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastics. The tubes are filled with a water-resistant filling compound. A steel wire , sometimes sheathed with polyethylene(PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes(and fillers)are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate(APL) is a applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then, the cable is completed with a PE sheath.

Optical characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0dB/km
	@1300nm			≤1.0dB/km
	@1310nm	≤0.36dB/km	≤0.40dB/km
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth(Class A)	@850nm			≥500MHz•km	≥200MHz·km
Bandwidth(Class A)	@1300nm			≥1000MHz•km	≥600MHz·km
Numerical Aperture			0.200±0.015NA	0.275±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc	≤1260nm	≤1480nm

Technical parameters

Cable Type	GYTA-2~6	GYTA-8~12	GYTA-14~18	GYTA-20~24	GYTA-26~30
Fiber count	2~6	8~12	14~18	20~24	26~30
Tubes	1	2	3	4	5
Fillers	4	3	2	1	0
Cable Diameter(mm)	9.7	9.7	9.7	9.7	9.7
Cable Weight(kg/km)	90	90	90	90	90
Tensile Strenghth Long/Short Term(N)	600/1500	600/1500	600/1500	600/1500	600/1500
Crush Resistance Long/Short Term(N/100mm)	300/1000	300/1000	300/1000	300/1000	300/1000
Bending Radius Static/Dynamic (mm)	10D/20D	10D/20D	10D/20D	10D/20D	10D/20D

1. from 1km to 6km or other required.

2. pakcing size:depend on cable size and packing length

3. Item shipped in 3-15 working days after payment is received depends on the quantity of the order.

Sample for free

1.We are professional manufacture of optical fiber cables in China.

2. OEM&ODM, any your customized cables we can help you to design and put into product .

3.The cable size and material are customized,and your own logo or design are welcome.

4.We'll reply you in 12 hours after you send enquiry to us

5. Protection of your sales area, ideas of design and all your private information is our duty.

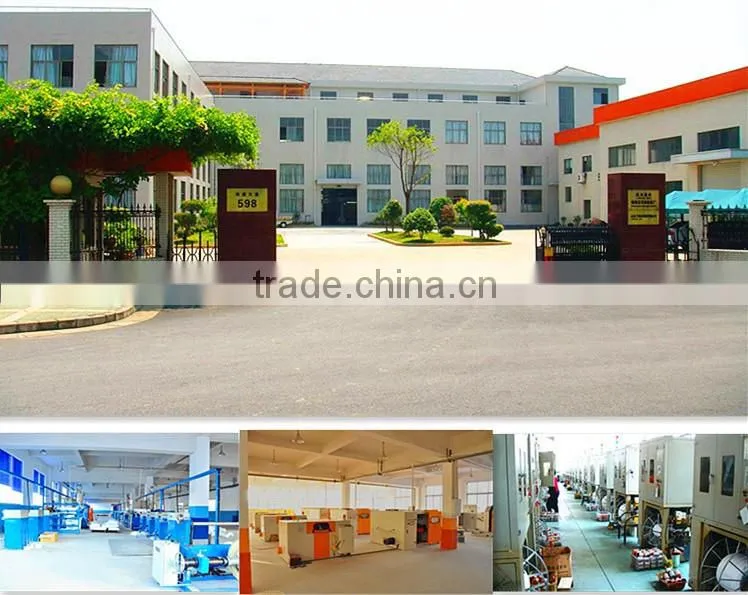

Hangzhou LinAn Luhua Industrial Co.,LTD, was established in 1993, situated in Linglong Industrial Zone,LinAn , Zhejiang province , China. We had 10 people and devoted to coaxial cable.

Since we enter the communication cable industry,we are always promoting the development of the

enterprise from technical , service and the honeys operation, and always keep developing the new cable products to make sure that we can meet the customer's requirements, and till now, we have three

workshops for the COAXIAL CABLE, LAN CABLE, and FIBER CABLE, and we can make:

Fiber optical cable (indoor fiber cable for FTTH Cable&outdoor fiber cable for GY series)
Coaxial cable (RG series,JIS series,D-FB series RF Cables)
Lan cable ( UTP/FTP/SFTP CAT5e/CAT6/CAT6A,etc)
