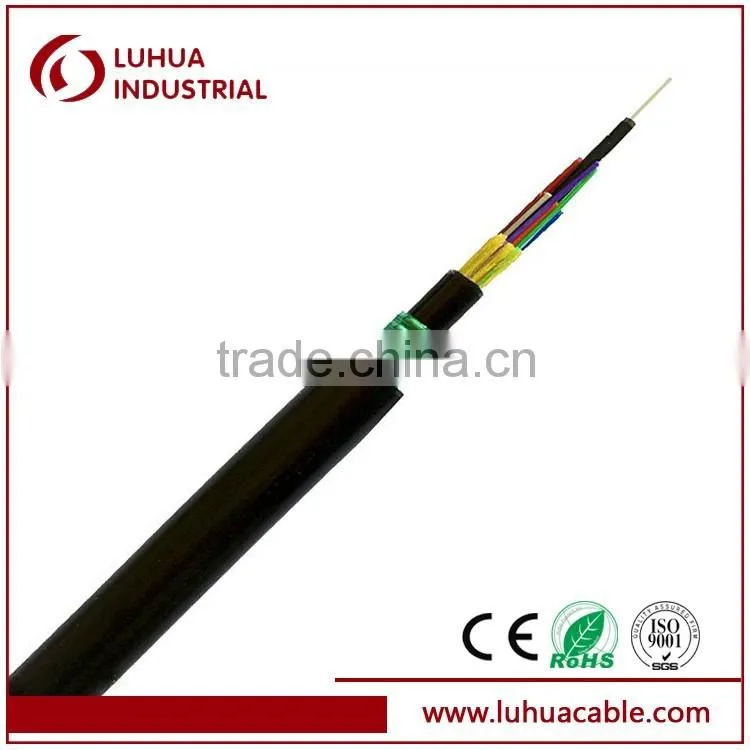

GYTY53 Loose tube stranded cable with steel tape armored bouble PE sheath

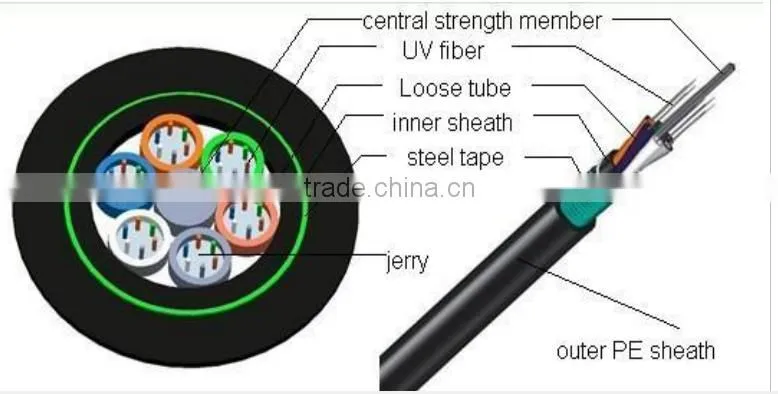

Structure description
Metal Strength member,Loose tube stranding type, gelly filled, Polyethylene(PE) inner sheath, PSP
armor and Polyethylene(PE) ou t sheath
performance
Application |
Min bend radius(mm) |
The way |
Operating temperature (oC) |
Long haul and building network communication |
Shor-term 12.5D |
Long-term 25D |
Direct-buried |
Features
Very strict material and manufacturing control guarantees stable product quality.
Total cross-section water-resistant structure make cable have an excellent properties of moisture resistance
Special jelly filled in the loose tube provides the fibers with critical protection
The central member adopted corrosion resistant, high young's modulus phosphatic steel wire.
PSP armor structure has super crush resistance
Structure and Technical Specification
Fiber count |
Nominal Diameter (mm) |
Nominal Weight (kg/km) |
Max fiber Per tube |
No.of(tube+fillers) |
AllowableTensile load Long/short (N) |
Allowable Crush resistance Long/short (N/10cm) |
2-36 |
12.7 |
173 |
6 |
7 |
3000/1000 |
3000/1000 |
38-72 |
13.9 |
211 |
6 |
6 |
3000/1000 |
3000/1000 |
74-96 |
15.5 |
251 |
12 |
8 |
3000/1000 |
3000/1000 |
98-120 |
17.2 |
299 |
12 |
10 |
3000/1000 |
3000/1000 |
122-144 |
18.8 |
345 |
12 |
12 |
3000/1000 |
3000/1000 |
>144 |
Available upon customer’s request |
|||||
1. from 1km to 6km or other required.
2. pakcing size:depend on cable size and packing length
3. Item shipped in 3-15 working days after payment is received depends on the quantity of the order.
Sample for free
1.We are professional manufacture of optical fiber cables in China.
2. OEM&ODM, any your customized cables we can help you to design and put into product .
3.The cable size and material are customized,and your own logo or design are welcome.
4.We'll reply you in 12 hours after you send enquiry to us
5. Protection of your sales area, ideas of design and all your private information is our duty.
Hangzhou LinAn Luhua Industrial Co.,LTD, was established in 1993, situated in Linglong Industrial Zone,LinAn , Zhejiang province , China. We had 10 people and devoted to coaxial cable.
Since we enter the communication cable industry,we are always promoting the development of the
enterprise from technical , service and the honeys operation, and always keep developing the new cable products to make sure that we can meet the customer's requirements, and till now, we have three
workshops for the COAXIAL CABLE, LAN CABLE, and FIBER CABLE, and we can make:
- Fiber optical cable (indoor fiber cable for FTTH Cable&outdoor fiber cable for GY series)
- Coaxial cable (RG series,JIS series,D-FB series RF Cables)
- Lan cable ( UTP/FTP/SFTP CAT5e/CAT6/CAT6A,etc)
