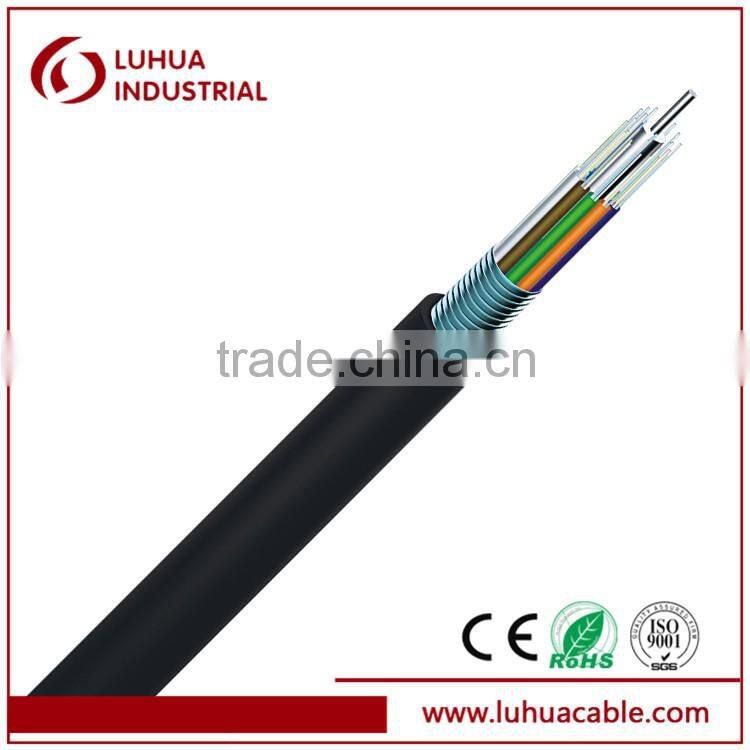

GYTS Loose Tube Fiber Optical Cable for outdoor
Fiber Parameters
No. |
Items |
Unit |
Specification |
|
G.652D | ||||
1 |
Mode Field Diameter |
1310nm |
μm |
9.2±0.4 |
1550nm |
μm |
10.4±0.5 |
||
2 |
Cladding Diameter |
μm |
124.8±0.7 |
|
3 |
Cladding Non-Circularity |
% |
≤0.7 |
|
4 |
Core-Cladding Concentricity Error |
μm |
≤0.5 |
|
5 |
Coating Diameter |
μm |
245±5 |
|
6 |
Coating Non-Circularity |
% |
≤6.0 |
|
7 |
Cladding-Coating Concentricity Error |
μm |
≤12.0 |
|
8 |
Cable Cutoff Wavelength |
nm |
λcc≤1260 |
|
9 |
Attenuation(max.) |
1310nm |
dB/km |
≤0.36 |
1550nm |
dB/km |
≤0.22 |
||

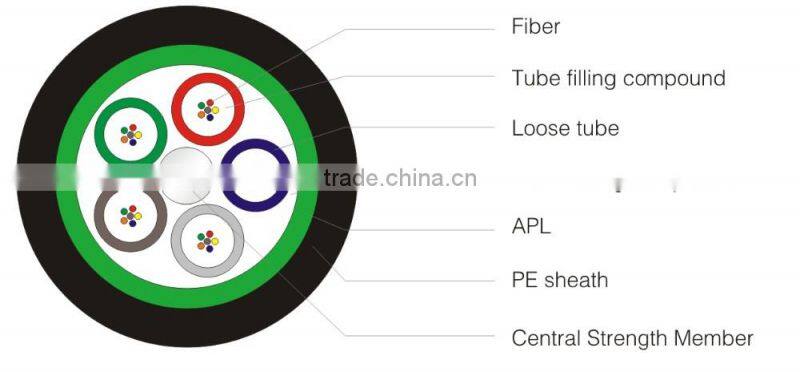

Cable Parameters
Items |
Specifications |
|
Fiber Count |
24 |
|
Colored Coating Fiber |
Dimension |
250µm±15µm |
Color |
Blue,Orange,Green,Brown,Grey,Natural,Red,Black, Yellow,Purple,Pink,Aqua |
|
Loose Tube |
Dimension |
1.95mm±0.05mm |
Material |
PBT |
|
Color |
Natural,Natural |
|
Filler |
Dimension |
1.95mm±0.05mm |
Material |
PP |
|
Color |
Red,Green,Natural |
|
Central Strength Member |
Diameter |
1.5mm |
Material |
Steel |
|
Outer Jacket |
Dimension |
10.4mm±0.3mm |
Material |
PE |
|
Color |
Black |
|
Mechanical and Environmental Characteristics
Items |
Unit |
Specifications |
Tension(Long Term) |
N |
600 |
Tension(Short Term) |
N |
1500 |
Crush(Long Term) |
N/10cm |
300 |
Crush(Short Term) |
N/10cm |
1000 |
Min. Bend Radius(Dynamic) |
mm |
20D |
Min. Bend Radius(Static) |
mm |
10D |
Installation Temperature |
℃ |
-20~+60 |
Operating Temperature |
℃ |
-40~+70 |
Storage Temperature |
℃ |
-40~+70 |
1. from 1km to 6km or other required.

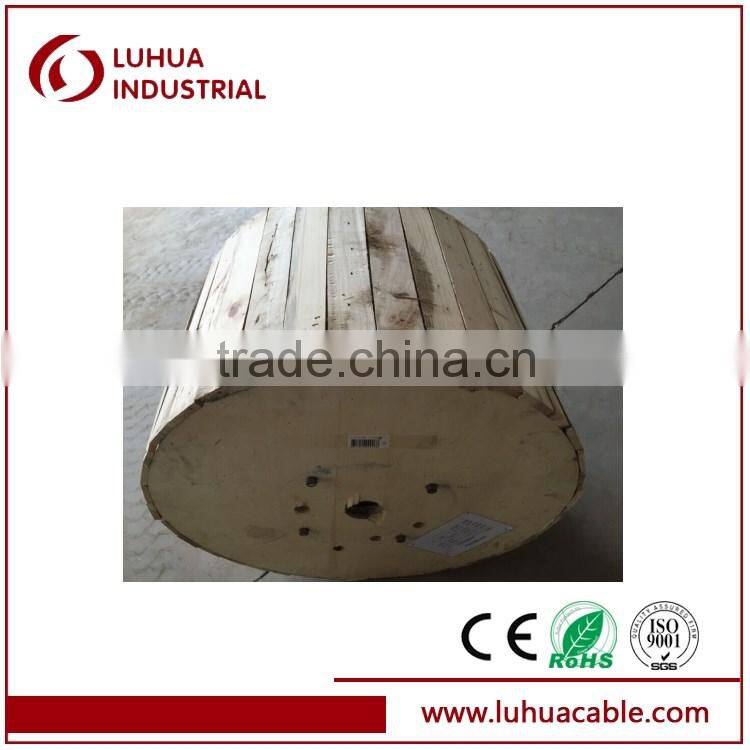

2. pakcing size:depend on cable size and packing length
3. Item shipped in 3-15 working days after payment is received depends on the quantity of the order.
Sample for free
1.We are professional manufacture of optical fiber cables in China.
2. OEM&ODM, any your customized cables we can help you to design and put into product .
3.The cable size and material are customized,and your own logo or design are welcome.
4.We'll reply you in 12 hours after you send enquiry to us
5. Protection of your sales area, ideas of design and all your private information is our duty.

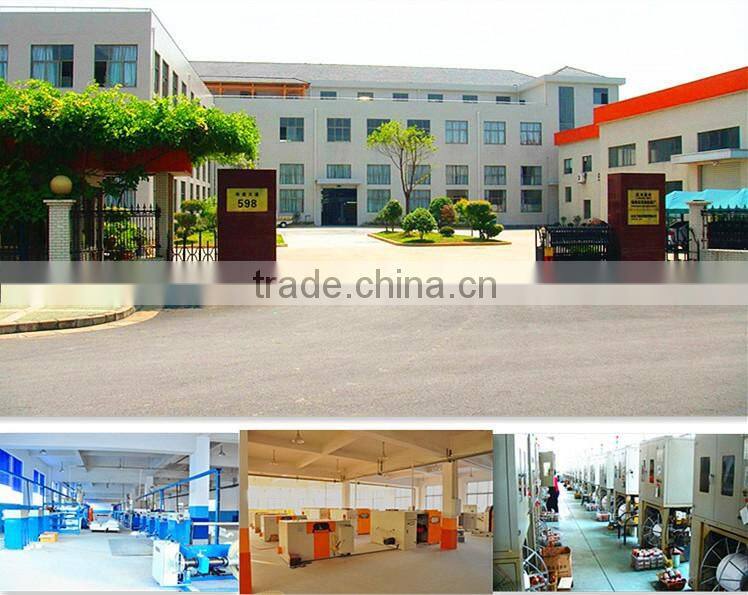

Hangzhou LinAn Luhua Industrial Co.,LTD, was established in 1993, situated in Linglong Industrial Zone,LinAn , Zhejiang province , China. We had 10 people and devoted to coaxial cable.
Since we enter the communication cable industry,we are always promoting the development of the
enterprise from technical , service and the honeys operation, and always keep developing the new cable products to make sure that we can meet the customer's requirements, and till now, we have three
workshops for the COAXIAL CABLE, LAN CABLE, and FIBER CABLE, and we can make:
- Fiber optical cable (indoor fiber cable for FTTH Cable&outdoor fiber cable for GY series)
- Coaxial cable (RG series,JIS series,D-FB series RF Cables)
- Lan cable ( UTP/FTP/SFTP CAT5e/CAT6/CAT6A,etc)
