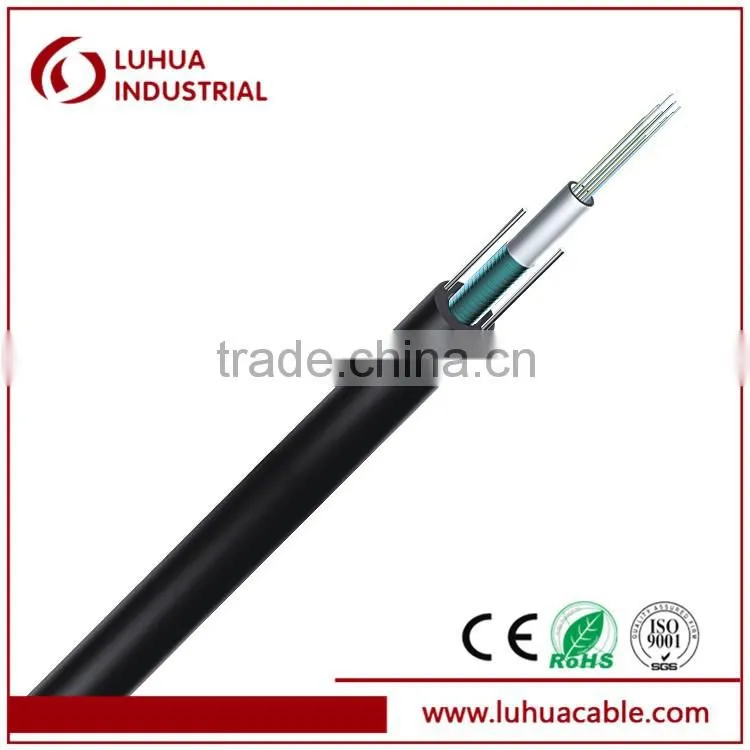

GYXTW unitube light armored outdoor fiber cable
Metal Strength member, Central tube type, gelly filled,
PSP-Polyethylene(PE)sheath with two parallel steel wires, Outerdoor optical fiber cable for telecommunication
Technical characteristics
The unique fiber excess length control method provides the cable with excellent mechanical and environmental properties
Very stict material and manufacturing control guarantees stable product quality.
Total corss-section water-resistant structure makes cable has an excellent properties of moisture resistance
Specialy jelly filled in the loose tube provides the fibers with critical protection
Two round steel wires in parallel ensure cable mechanical property in tensile strength and crush resistance
Small in size,light in weight and excellent bending properties, tube in the center benefits in operation
Double-sided plastic strip( PSP) moisture-proof layer
Cable performance | |
Crush resistance |
2000N/100mm |
Bending radius |
Short time 20D |
Long time 10D | |
Temperature range | |
Transport/storage |
-40~+60℃ |
Installation |
-40~+60℃ |
Operation |
-40~+60℃ |
TYPE |
Fiber counts |
Steel wire Dia./mm |
Sheath thickness (mm) |
OD(mm) |
Max tensile load(N) |
GYXTW-2xxx |
2 |
1.2*2 |
2.2 |
8.2 |
2000 |
GYXTW-4xxx |
4 |
1.2*2 |
2.2 |
8.2 |
2000 |
GYXTW-6xxx |
6 |
1.2*2 |
2.2 |
8.2 |
2000 |
GYXTW-8xxx |
8 |
1.2*2 |
2.2 |
8.2 |
2000 |
GYXTW-10xxx |
10 |
1.2*2 |
2.2 |
8.2 |
2000 |
GYXTW-12xxx |
12 |
1.2*2 |
2.2 |
8.2 |
2000 |
1. from 1km to 6km or other required.
2. pakcing size:depend on cable size and packing length
3. Item shipped in 3-15 working days after payment is received depends on the quantity of the order.
Sample for free
1.We are professional manufacture of optical fiber cables in China.
2. OEM&ODM, any your customized cables we can help you to design and put into product .
3.The cable size and material are customized,and your own logo or design are welcome.
4.We'll reply you in 12 hours after you send enquiry to us
5. Protection of your sales area, ideas of design and all your private information is our duty.
Hangzhou LinAn Luhua Industrial Co.,LTD, was established in 1993, situated in Linglong Industrial Zone,LinAn , Zhejiang province , China. We had 10 people and devoted to coaxial cable.
Since we enter the communication cable industry,we are always promoting the development of the
enterprise from technical , service and the honeys operation, and always keep developing the new cable products to make sure that we can meet the customer's requirements, and till now, we have three
workshops for the COAXIAL CABLE, LAN CABLE, and FIBER CABLE, and we can make:
- Fiber optical cable (indoor fiber cable for FTTH Cable&outdoor fiber cable for GY series)
- Coaxial cable (RG series,JIS series,D-FB series RF Cables)
- Lan cable ( UTP/FTP/SFTP CAT5e/CAT6/CAT6A,etc)
